If a trace is hidden, then its marker and bandfilter search info is also hidden in the "Info
Window".
Info Window Configuration dialog
The "Info Window Configuration" dialog allows you to select the markers and Display
elements of a diagram results to be displayed in the Info Window.
Access: Info Window > "Configuration..."
Use the "Info Field" combo box to select a marker or bandfilter search info field whose
contents you want to display in parts or in total. It contains all info fields of the current
recall set that are currently not displayed in the info table (see "Info Table: Show / Posi-
tion" on page 742).
Content Selection
The lower part of the "Info Window Configuration" dialog allows you to pick the con-
tents of the selected info field you want to display in the Info Window.
For marker info fields, use the "Add" and "Remove" buttons to show/hide the selected
marker in the "Info Window".

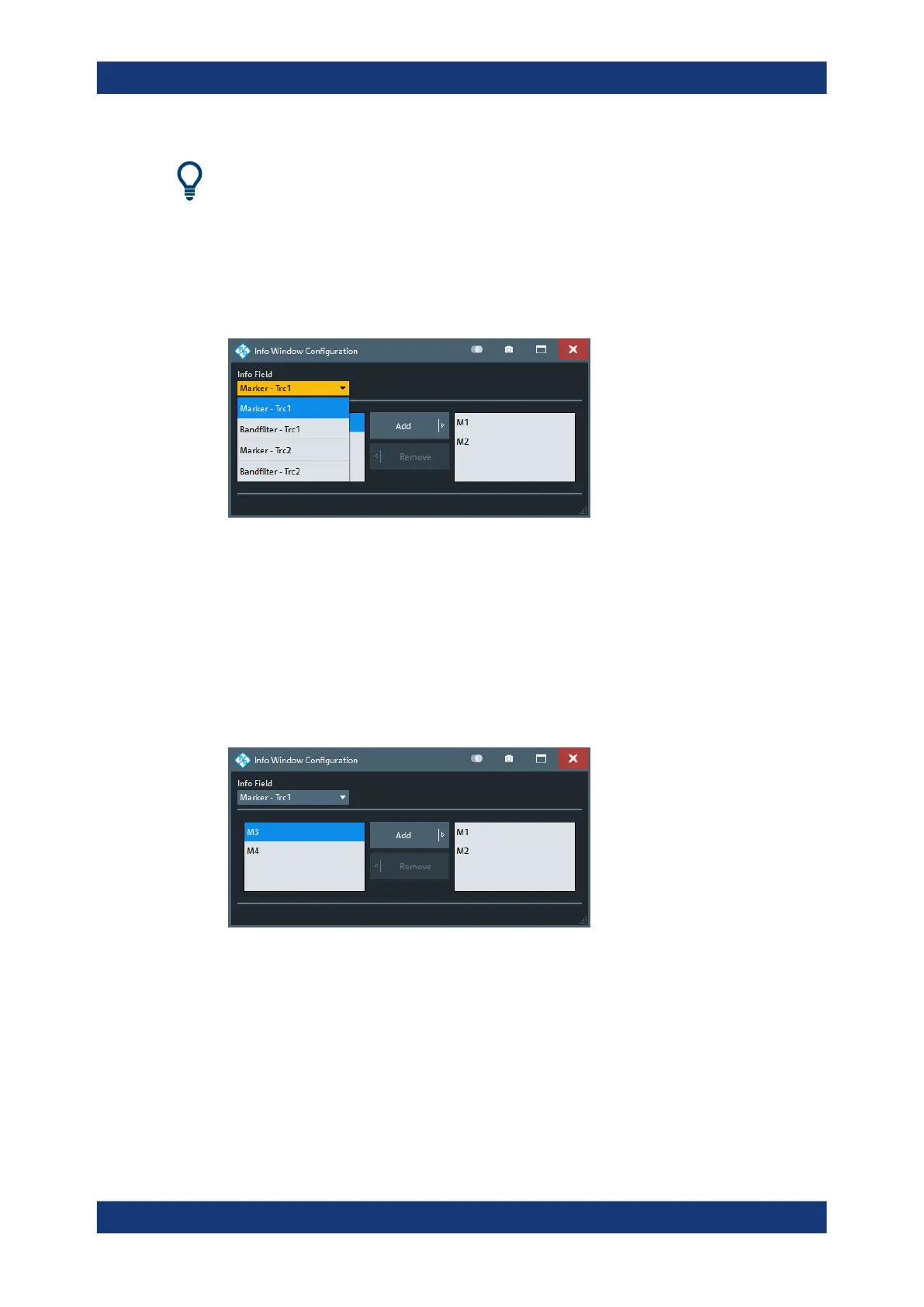

Figure 5-87: Content selection: marker info fields
For Bandfilter search info fields simply pick the results to be displayed.
Display softtool
