R&S ZNB Series User Manual

GUI reference
R&S
®
ZNB/ZNBT
493User Manual 1173.9163.02 ─ 62
Delete
Deletes the selected calibration from the list of configured calibrations.
Modify
Edits the selected system error correction: opens the Define Calibration dialog with the
corresponding ports and calibration type pre-selected.
Next
Proceeds to Step 2: Connections.
Inactive as long as no SMARTerCal is defined.
Define Calibration Dialog
In MultiCal mode, the "Define Calibration" dialog allows you to define the individual
SMARTerCals: select the test ports to be calibrated, the calibration type, the calibration
unit and characterization, the power meter and power port.
Access: SMARTerCal wizard (Cal Unit, MultiCal) > Step 1: "Ports" > "Add..." / "Mod-
ify..."
●
The "Multiple Cal in Calibration Wizard" (MultiCal) feature is disabled by default
and has to be activated in the Calibration tab of the "System Config" dialog.
●
For background information on calibration types, see Chapter 4.5.1, "Calibration
types", on page 163.
The layout of the main panel depends on the number of test ports available.

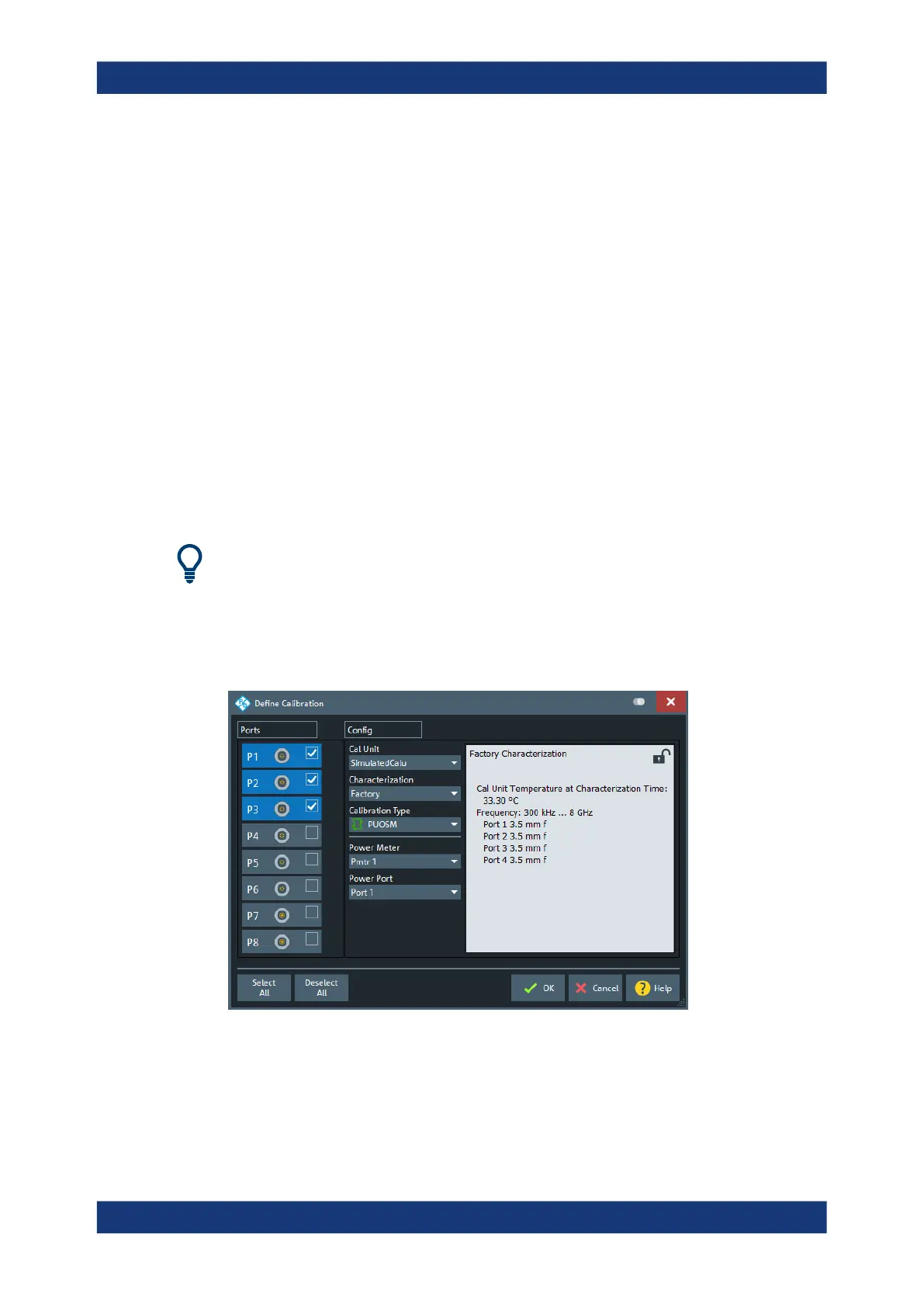

Figure 5-32: Define Calibration dialog (MultiCal, > 4 test ports)
Cal softtool
