GUI reference
R&S
®
ZNB/ZNBT
606User Manual 1173.9163.02 ─ 62

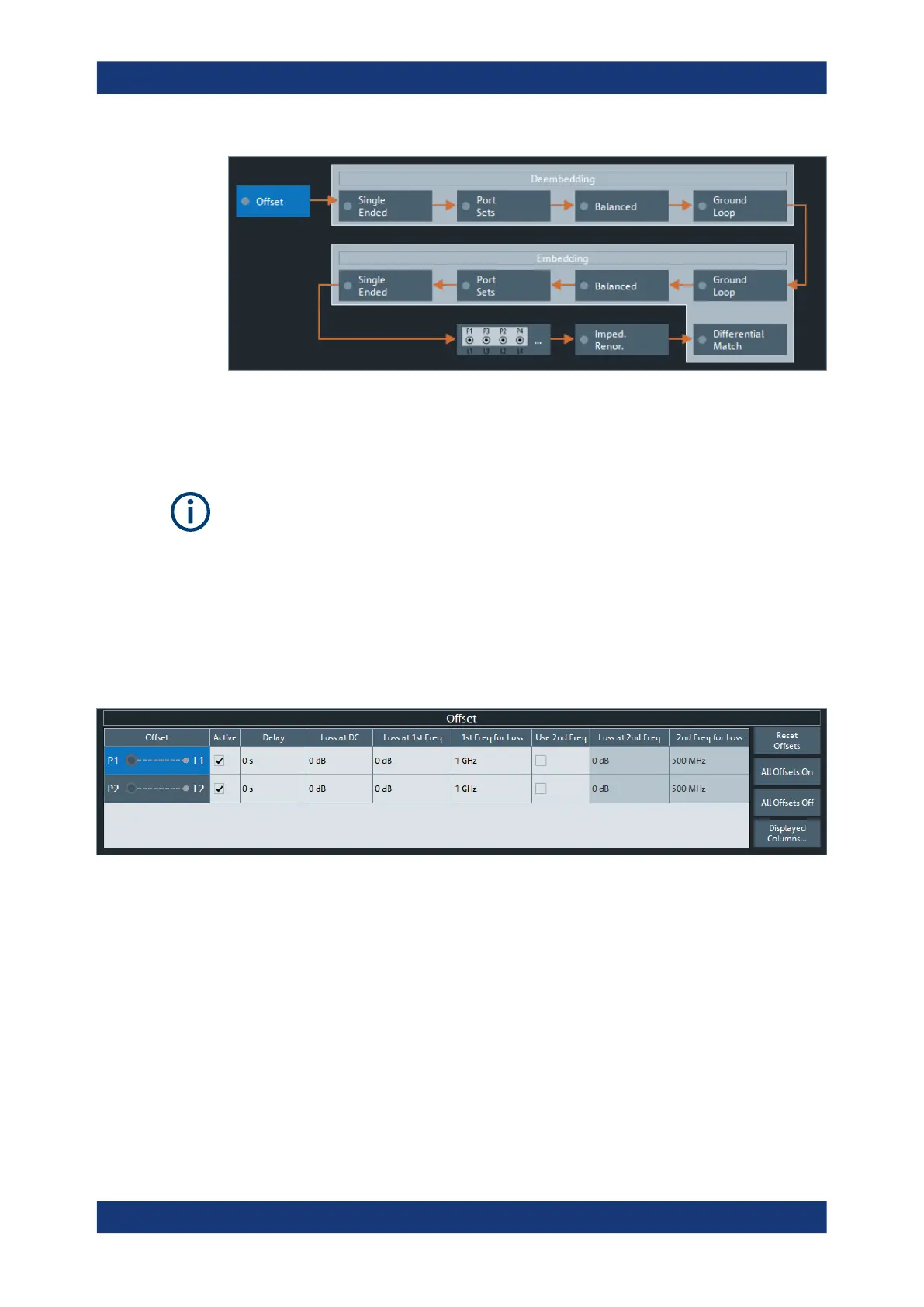

Figure 5-53: Offset Embed dock widget: Overview (Calculation Flow)
Use one of the buttons to configure the corresponding function. A green LED on a but-
ton indicates that the corresponding deembedding/embedding function is active.
If the "Fixture Simulator" is disabled for the related channel (see "Fixture Simulator"
on page 549), all functions except the "Offset" function are in inactive (grayed out in the
"Overview").
5.13.1.2 Offset panel
Allows you to activate or deactivate offset/loss correction for selected physical ports
and to set related parameters.
Access: Overview panel > "Offset"
Figure 5-54: Offset Embed dock widget: Offset panel
The "Offset" panel can also be activated by selecting the Offset tab or One Way Loss
tab. Refer to its description for additional functions and remote commands.
Active
The checkbox in the "Active" column activates/deactivates the configured length and
loss parameters for the respective Port (i.e. adds/removes them to/from the calculation
flow) without changing the parameter values.
Remote command:
[SENSe<Ch>:]CORRection:OFFSet<PhyPt>:COMPensation[:STATe]
Offset Embed softtool
