GUI reference

R&S

ZNB/ZNBT

607User Manual 1173.9163.02 ─ 62

Loss at DC / Loss at 1st Freq / 1st Freq for Loss / Use 2nd Freq / Loss at 2nd

Freq / 2nd Freq for Loss

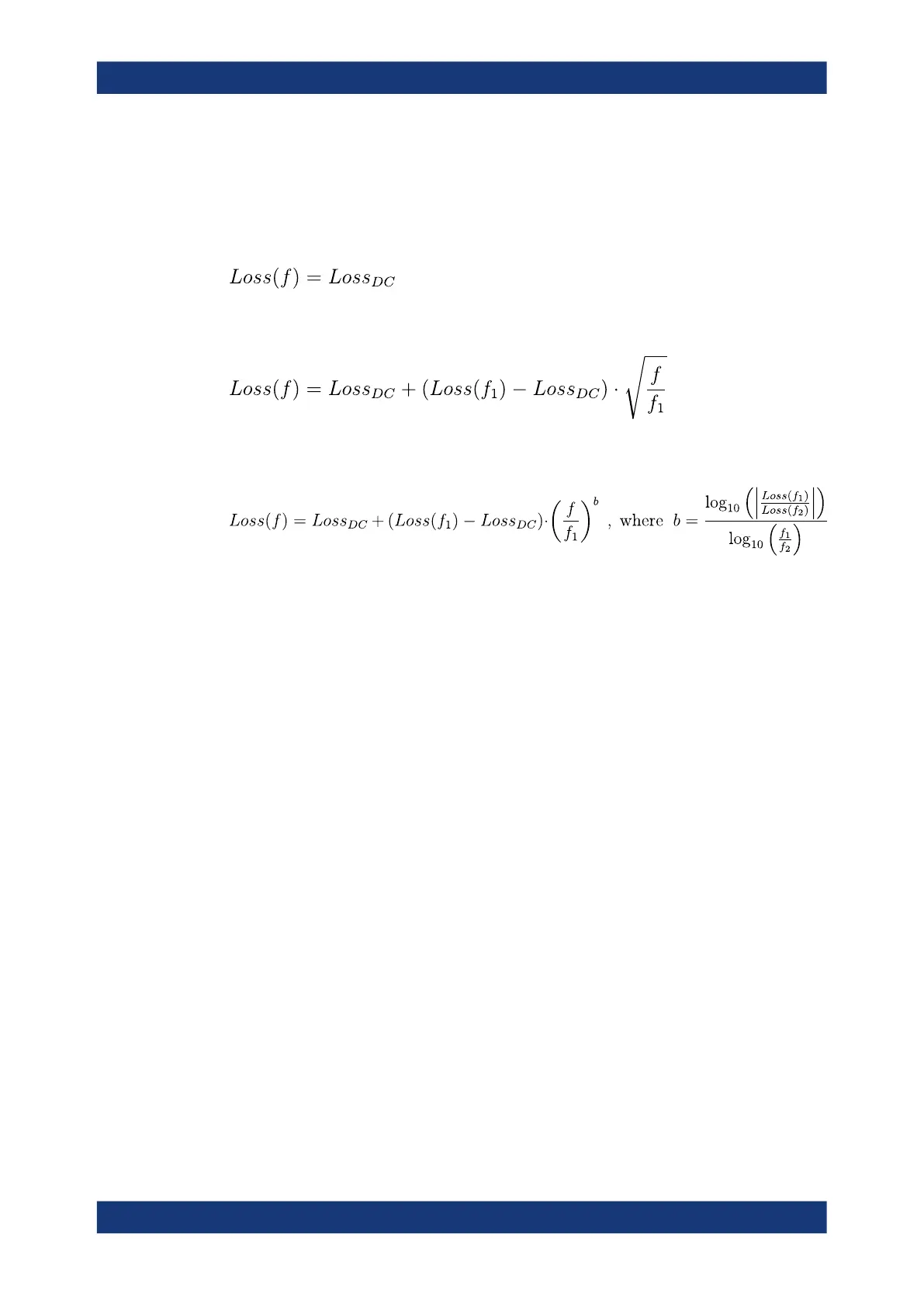

Defines the one-way loss parameters of the transmission line at the selected port.

In the limit case, where the length of the transmission line is considered to be "almost

zero", the loss is considered constant:

Otherwise, if the loss at DC and one additional frequency f

is known, the loss at fre-

quency f is approximated by:

If, in addition, the loss at a second frequency f

is known and "Use 2nd Freq" is

enabled, then the loss is approximated by:

See also Chapter 4.6.1.2, "Definition of loss parameters", on page 203.

Note: The entered parameters define the loss for a signal traveling in one direction

through the transmission line. To account for the propagation in both directions, the

magnitude shift of a reflection parameter due to a given loss is twice the magnitude

shift of a transmission parameter. See also Chapter 4.6.1.6, "Application and effect of

offset parameters", on page 207.

Remote command:

[SENSe<Ch>:]CORRection:LOSS<PhyPt>:OFFSet

[SENSe<Ch>:]CORRection:LOSS<PhyPt>

[SENSe<Ch>:]CORRection:LOSS<PhyPt>:FREQuency

[SENSe<Ch>:]CORRection:LOSS<PhyPt>:SECond:STATe

[SENSe<Ch>:]CORRection:LOSS<PhyPt>:SECond

[SENSe<Ch>:]CORRection:LOSS<PhyPt>:SECond:FREQuency

Reset Offsets

The "Reset Offsets" button resets the length and loss parameters for all ports to their

default values.

Remote command:

[SENSe<Ch>:]CORRection:OFFSet<PhyPt>[:STATe]

All Offsets On / All Offsets Off

Activates/deactivates the length and loss compensation for all ports.

Use the checkboxes in the Active column to activate/deactivate the length and loss

compensation for selected ports.

Remote command:

[SENSe<Ch>:]CORRection:OFFSet<PhyPt>:COMPensation[:STATe]

Offset Embed softtool
