R&S ZNB Series User Manual

GUI reference
R&S
®
ZNB/ZNBT
602User Manual 1173.9163.02 ─ 62
5.12.6.4 SMARTerCal (Cal Unit) wizard for mixer mode
Allows to perfom a variant of an automatic "SMARTerCal" that is specially tailored to
the "Mixer Mode".
Access: Channel – [Channel Config] > "Mixer Mode" > "SMARTerCal" – "Start... (Cal
Unit)"
Offers similar functionality as the general SMARTerCal wizard (Cal Unit), with the fol-
lowing differences:
●
Always all channels are calibrated
●
The affected test ports are already preselected and labeled according to their role
in the mixer measurement
●
The adequate calibration type is already preselected
●
A source flatness calibration can be automatically included as a the final calibration
step
Background information
Refer to Chapter 4.5.7, "SMARTerCal", on page 199 for background information
The wizard proceeds as follows:

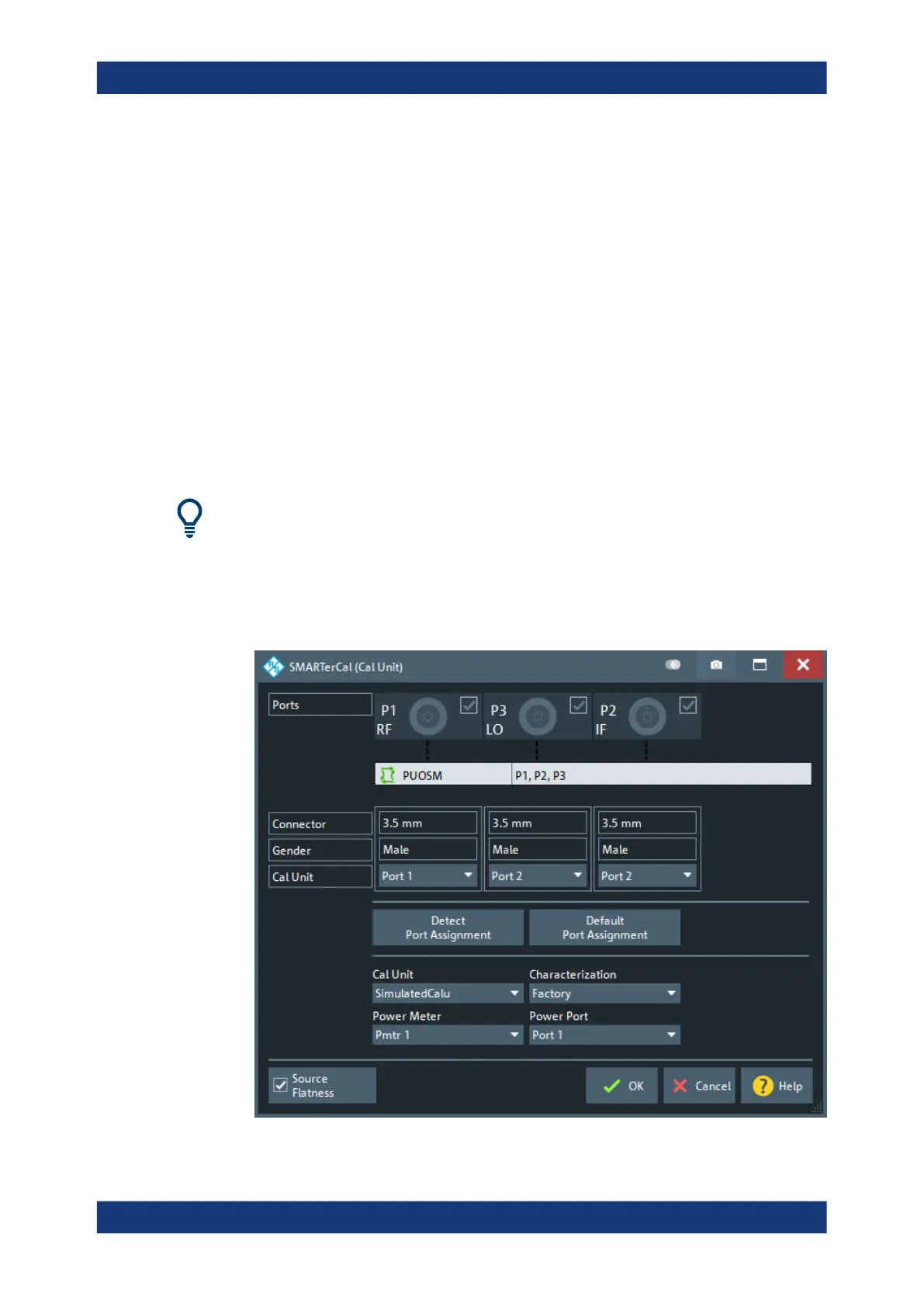

1. Specify the remaining (non-fixed) properties of the automatic SMARTerCal
(required hardware, ports, connections etc.)
Channel Config softtool
