R&S ZNB Series User Manual

GUI reference
R&S
®
ZNB/ZNBT
294User Manual 1173.9163.02 ─ 62
Renormalization According to Theory of
Selects the waveguide circuit theory for renormalization. The conversion formulas of
these theories only differ if the reference impedance of at least one test port has a non-
zero imaginary part.
Refer to Chapter 4.3.2, "Reference impedances", on page 128.
Remote command:
CALCulate<Chn>:TRANsform:IMPedance:RNORmal

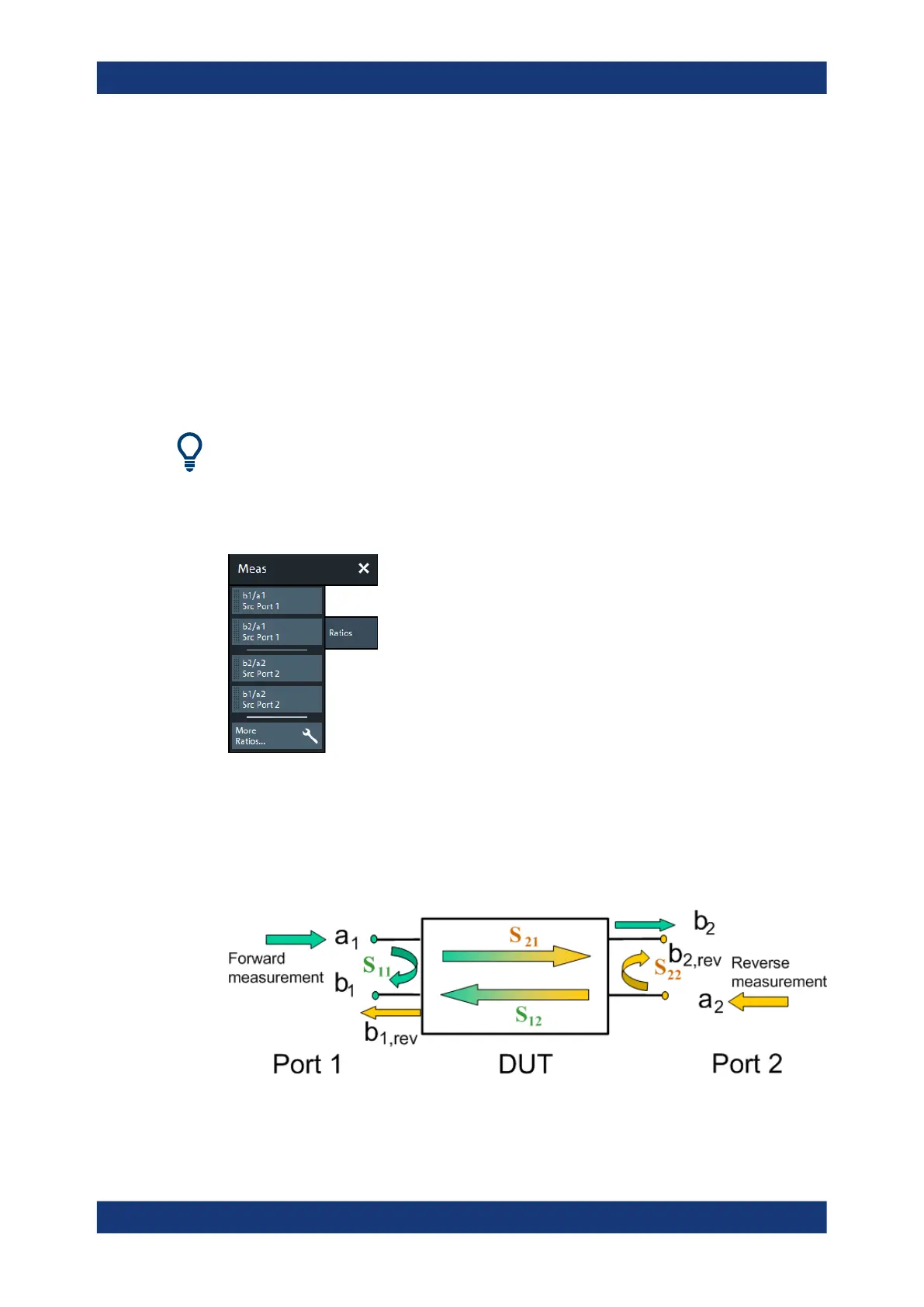

5.2.2 Ratios tab
Selects ratios of wave quantities as measured quantities.
Background information
Refer to Chapter 4.3.5, "Wave quantities and ratios", on page 135.
5.2.2.1 Controls on the Ratios tab
The "More Ratios..." button opens the More Ratios dialog which allows to select an
arbitrary ratio of wave quantities.
b<i> / a<j> Source Port <j>
Selects predefined complex ratios of the standard 2-port wave quantities a
1
, a
2
, b
1
, and
b
2
.
Meas softtool
