R&S ZNB Series User Manual

GUI reference
R&S
®
ZNB/ZNBT
416User Manual 1173.9163.02 ─ 62

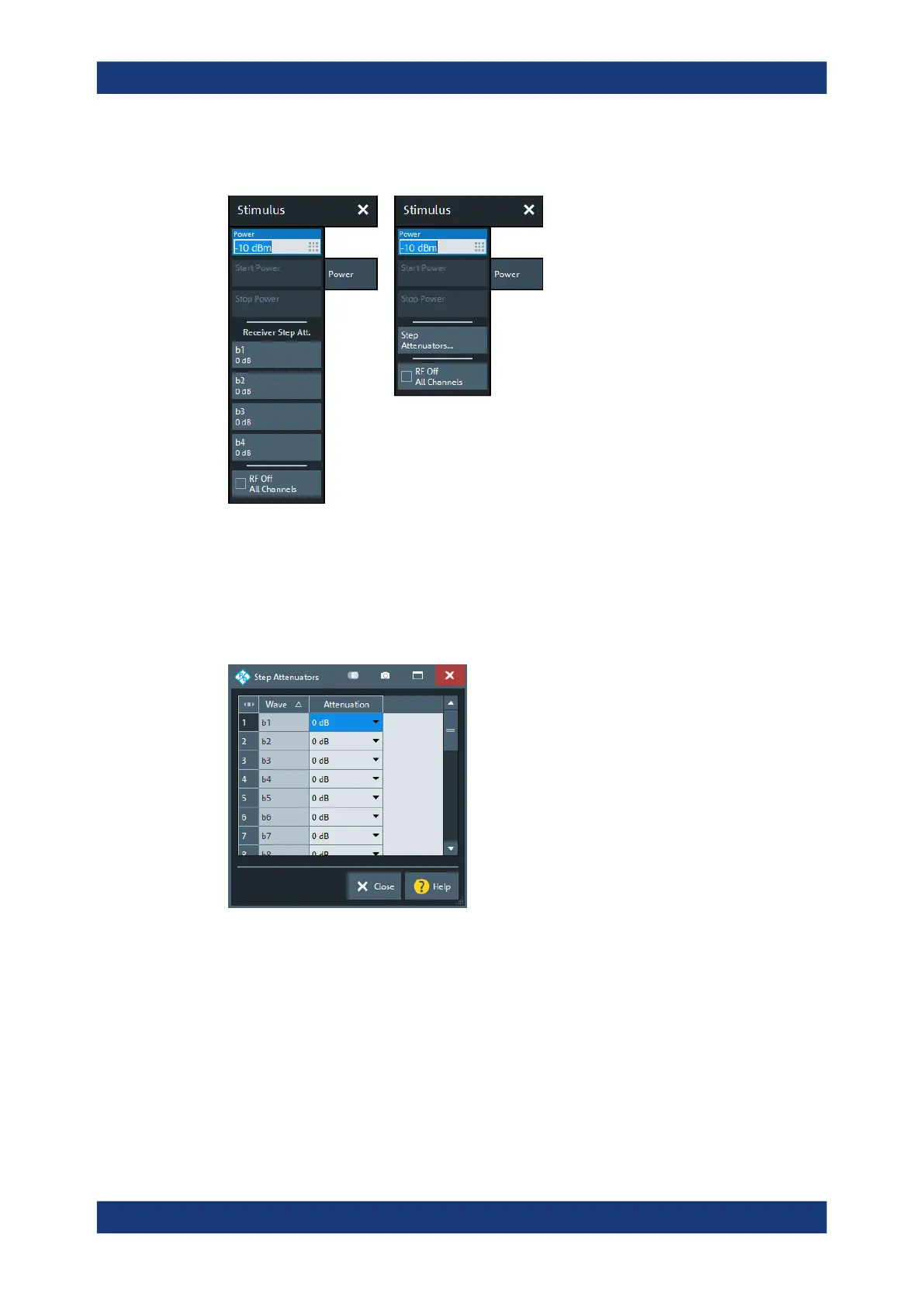

5.8.2.1 Controls on the Power tab
left = R&S ZNB with Receiver step attenuators and 4 physical ports
right = R&S ZNB/ZNBT with Receiver step attenuators and > 4 physical ports on the VNA and connected
switch matrices
If the number of test ports (on the VNA and connected switch matrices) is higher than
4, the "Step Attenuators" input fields are hidden. They are replaced by a "Step Attenua-
tors..." button that opens the following dialog:
Power
Determines the output power at the test ports for the sweep types "Lin Freq", "Log
Freq", "CW Mode", and "Time". Also determines the default output power for "Segmen-
ted" sweeps, where the output power can be set per segment.
The setting has no effect for Power sweeps, where the source power is varied over a
continuous range.
Remote command:
SOURce<Ch>:POWer<PhyPt>[:LEVel][:IMMediate][:AMPLitude]
Stimulus softtool
