R&S ZNB Series User Manual

GUI reference
R&S
®
ZNB/ZNBT
384User Manual 1173.9163.02 ─ 62
Remote command:
CALCulate<Chn>:RIPPle:CLEar
Global Check
See "Global Check" on page 376.
TTL1 Pass / TTL2 Pass
See "TTL1 Pass / TTL2 Pass" on page 376.

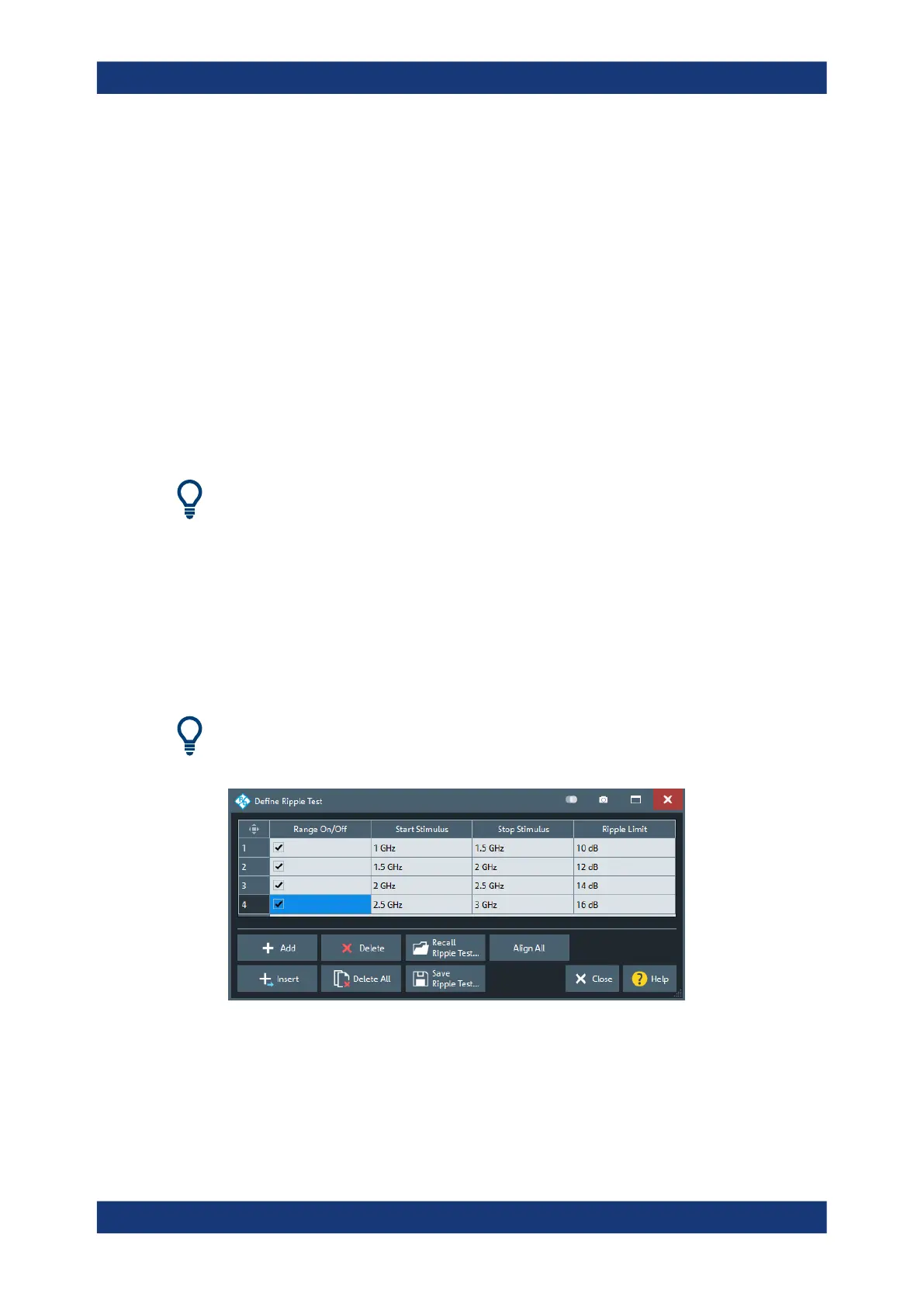

5.6.2.2 Define Ripple Test dialog
The "Define Ripple Test" dialog defines the ripple limits for the active trace on a range-
by-range basis. A separate ripple limit can be assigned to each range.
Access: Trace – [Line] > "Ripple Test" > "Def. Ripple Test..."
Defining ripple limits with minimum effort
Choose one of the following methods to create and handle ripple limit ranges effi-
ciently:
●
To configure a limit test with only a few ranges, use "Add" and edit each range in
the table individually.
●
Use the "Align All" button to create non-overlapping, contiguous ranges of equal
width.
●
Save your ripple ranges to a file so you can reuse or modify them in later sessions
("Save Ripple Test..., Recall Ripple Test...").
Background information
Refer to Chapter 4.4.1, "Limit check", on page 144.
The "Define Ripple Test" dialog contains a table to edit the individual ranges of the rip-
ple check ranges. The buttons below the table extend, shorten, or reorder the range list
and save/recall ripple test data.
Range List
Defines the individual ripple limit ranges.
Lines softtool
