GUI reference
R&S
®
ZNB/ZNBT
383User Manual 1173.9163.02 ─ 62
Ripple Check
Switches the ripple limit check of the active trace on or off. When the limit check is
switched on, a movable info field shows the pass/fail information and the measured rip-
ple in each ripple limit range.

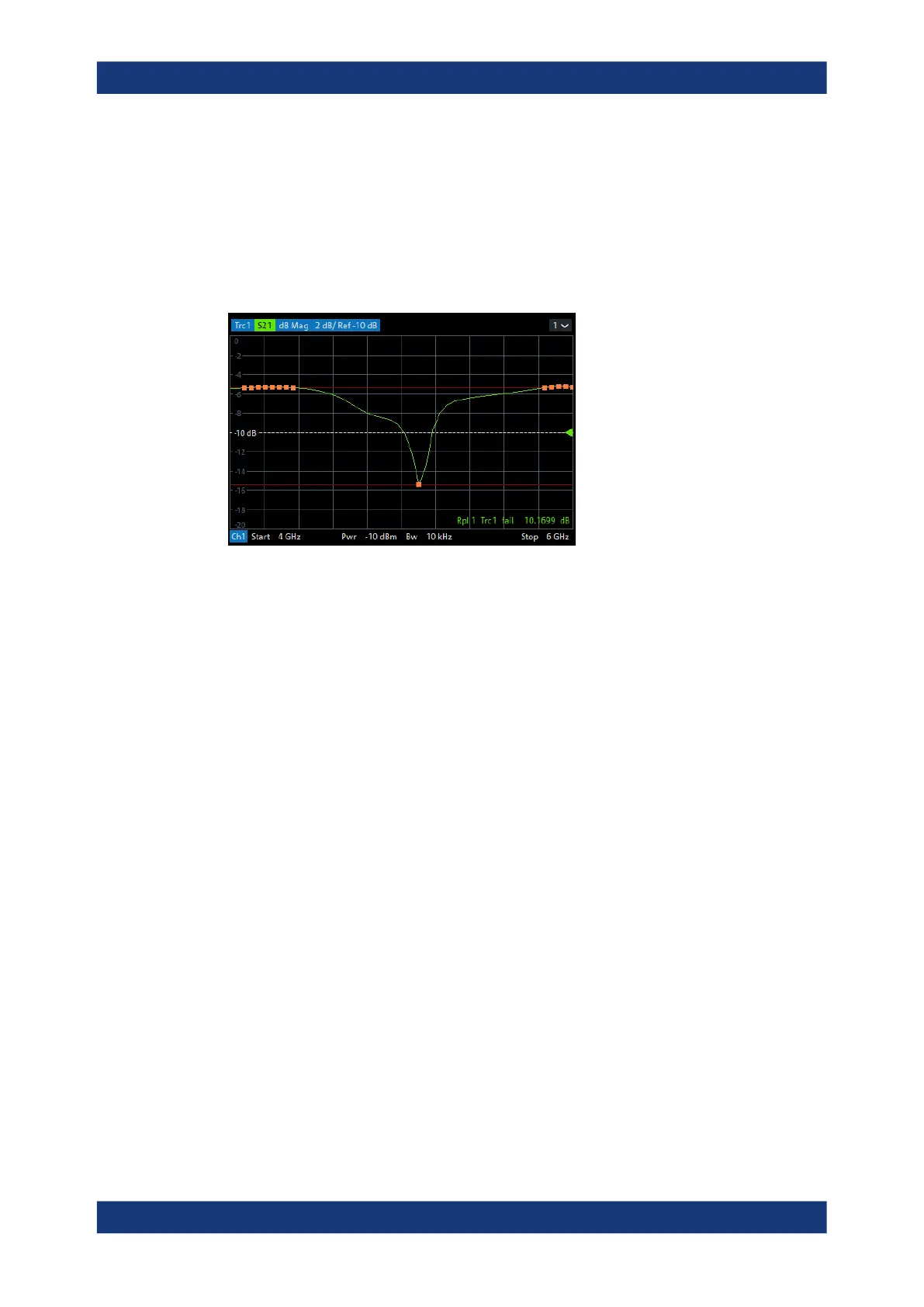

Limit violations are marked with squares, whose color is defined in the Define User
Color Scheme dialog ("Limit Fail Trace Color").
A TTL signal indicating pass or fail can be generated in addition.
Note:
●
Ripple check and display of limit lines are independent of each other:
– The ripple limits can be displayed, no matter if the ripple check is enabled.
– If "Ripple Check" is enabled, the ripple limits are checked, no matter if they are
displayed.
– The ripple check can even be enabled, if no limit lines are defined. In this case,
the info field displays "No ripple defined!" and the limit check always passes.
●
For each trace, ripple limits can only be set for a single cartesian trace format. If
another trace format is selected, the ripple limit lines are hidden and the ripple
check is suspended.
Remote command:
CALCulate<Chn>:RIPPle:STATe
CALCulate<Chn>:RIPPle:FAIL?
CALCulate:RIPPle:FAIL:ALL?
CALCulate<Chn>:RIPPle:SEGMent<Seg>:RESult?
CALCulate<Chn>:RIPPle:STATe:AREA
Show Results All Traces
Defines the visibility of ripple info fields in the active recall set.
●
If disabled, only the ripple info field of the active trace is displayed (in case it has
ripple check enabled).
●
If enabled, ripple info fields are displayed for all traces with ripple check enabled.
Remote command:
CALCulate:RIPPle:DISPlay:RESult:ALL[:STATe]
Clear Test
Resets the limit check results.
Lines softtool
