R&S ZNB Series User Manual

GUI reference
R&S
®
ZNB/ZNBT
631User Manual 1173.9163.02 ─ 62
Remote command:
CALCulate:FMODel:ISD:COUPon:MEASure:FILename
CALCulate:FMODel:ISD:COUPon:MEASure:FILename:CLEar
CALCulate:FMODel:ISD:COUPon:MEASure:OPEN:FILename
CALCulate:FMODel:ISD:COUPon:MEASure:SHORt:FILename
CALCulate:FMODel:SFD:COUPon:MEASure:FILename
CALCulate:FMODel:SFD:COUPon:MEASure:FILename:CLEar
CALCulate:FMODel:EZD:COUPon:MEASure:FILename
CALCulate:FMODel:EZD:DUT:MEASure:FILename:CLEar
Active
Before starting to measure the test coupon, use these checkboxes to indicate the
physical ports to which it is connected.
Table 5-6: Allowed numbers of active ports
"Sym 2x Thru" "1x Open, 1x Short" other
Single-ended 2 1 or 2 1
Balanced 2 or 4 2 or 4 2
Remote command:
CALCulate:FMODel:ISD<Ph_pt>:COUPon[:STATe]
CALCulate:FMODel:SFD<Ph_pt>:COUPon[:STATe]
CALCulate:FMODel:EZD<Ph_pt>:COUPon[:STATe]

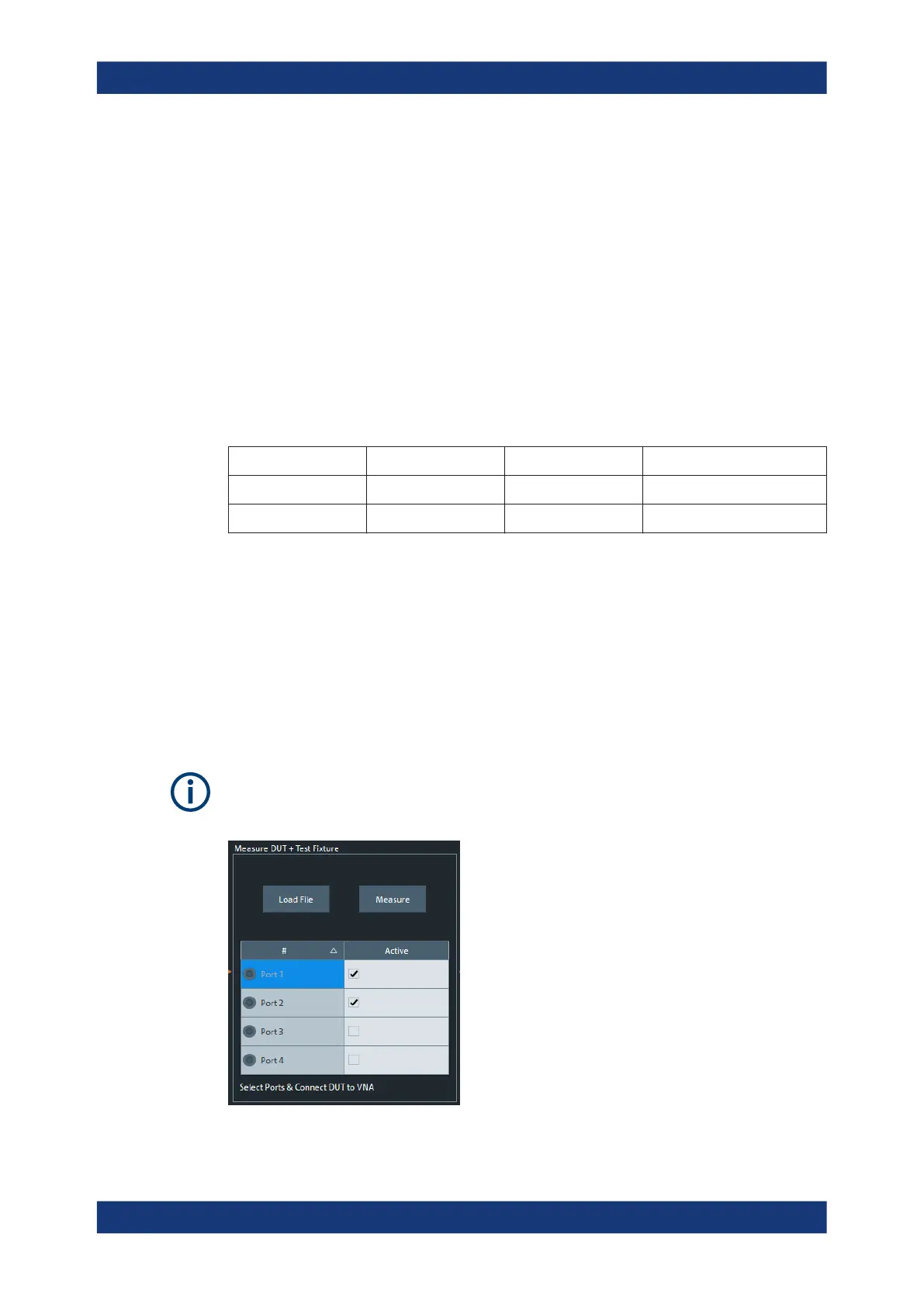

5.13.5.3 Measure DUT + Test Fixture
The "Measure DUT + Test Fixture" section allows you to measure the whole structure,
i.e. the DUT with the test fixture.
For EZD this section is only available if impedance correction is enabled in the
"Advanced Settings".
Offset Embed softtool
