R&S ZNB Series User Manual

GUI reference
R&S
®
ZNB/ZNBT
654User Manual 1173.9163.02 ─ 62

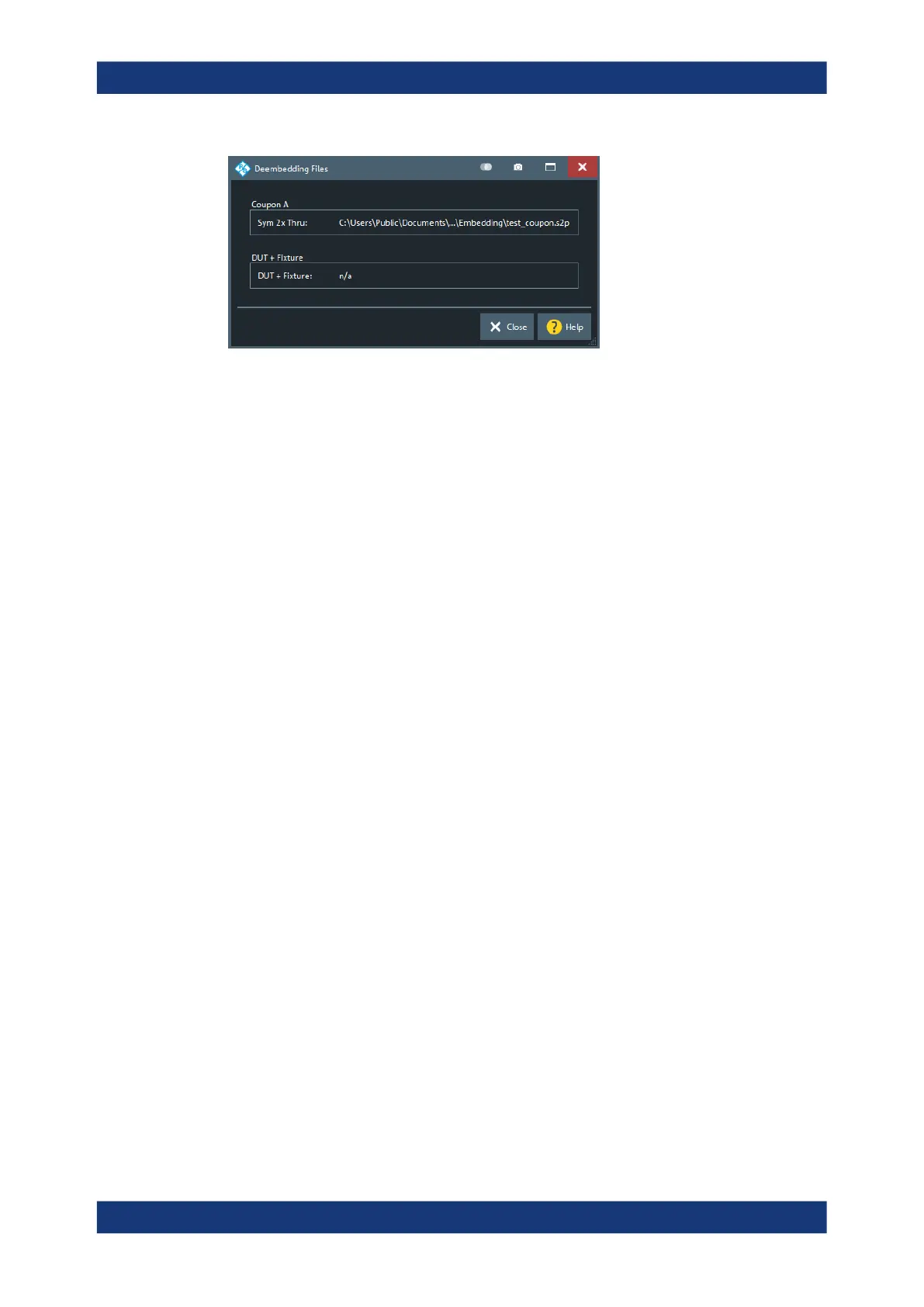

A section "Coupon B" is only available, if you uncheck "Use Same Coupon Left and
Right" on page 657 and specify a file instead of measuring "Coupon B".
Remote command:
CALCulate:FMODel:DEASsistant:COUPon:LEFT:FILE
CALCulate:FMODel:DEASsistant:COUPon:RIGHt:FILE
All Deembedding Activated
Deactivates or activates all deembeddings (single-ended, balanced, port set, ground
loop) for the active channel, if any.
Remote command:
n.a.
Balanced Ports
Opens the Balanced Ports dialog.
5.13.11.2 Deembedding Assistant dock widget panel
The two pages of the "Offset Embed" dock widget's "Deembedding Assistant" panel
allow you to model your DUT and its test fixture, to collect the input data for the
selected fixture tool, to run the tool, and to apply the calculated deembedding.
Access: Channel – [Offset Embed] > "Deembed Assistant" tab
(click the tab to reopen)
Page 1: Topology
The first page of the "Deembedding Assistant" defines the deembedding topology. It
allows you to describe your device under test (DUT) in terms of inputs, outputs, and
the test coupons required to model the DUT's fixture.
Offset Embed softtool
