R&S ZNB Series User Manual

GUI reference
R&S
®
ZNB/ZNBT
653User Manual 1173.9163.02 ─ 62
Fixture Tool/Tool Info
The "Fixture Tool" combo-box allows you to select the third-party fixture modeling tool
to be used with the deembedding assistant (see Chapter 4.6.2.9, "Fixture modeling
and deembedding", on page 217).
Use the "Tool Info" button to get additional information about the selected tool.
Remote command:
CALCulate:FMODel:DEASsistant:TOOL
Timestamp Filenames
If "Timestamp Filenames" is checked, the names of subsequently generated "Test Cou-
pon" and "DUT + Test Fixture" files are prefixed with the current date and time.
Remote command:
CALCulate:FMODel:REName
Show Remeasure Warnings
If checked, the "Coupon" and "DUT + Test Fixture" measurements raise warnings, if
the measurement is repeated with different ports.
This setting is global.
Remote command:
n.a.

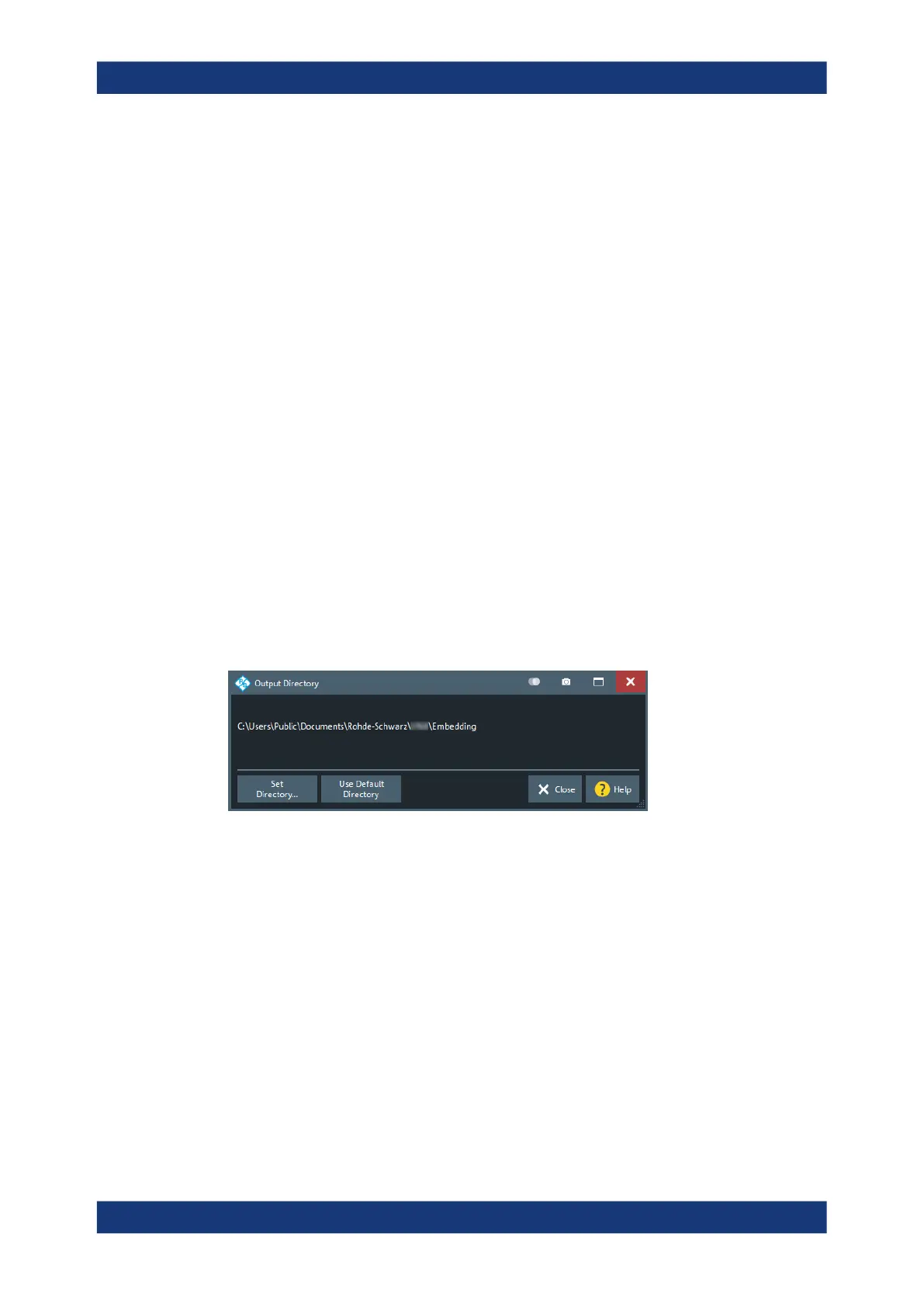

Output Directory...
Opens a dialog that allows you to specify the directory where the fixture modeling tools
store their data.
Default is C:\Users\Public\Documents\Rohde-Schwarz\Vna\Embedding.
Remote command:
CALCulate:FMODel:DIRectory
CALCulate:FMODel:DIRectory:DEFault
CALCulate:FMODel:DIRectory:DEFault:CLEar
Deembedding Files...
This button is only enabled, if the coupon data provided to the deembedding tool was
at least partly loaded from file. See "Page 2: Measure / Load and Apply" on page 658.
Offset Embed softtool
