GUI reference
R&S
®
ZNB/ZNBT
741User Manual 1173.9163.02 ─ 62

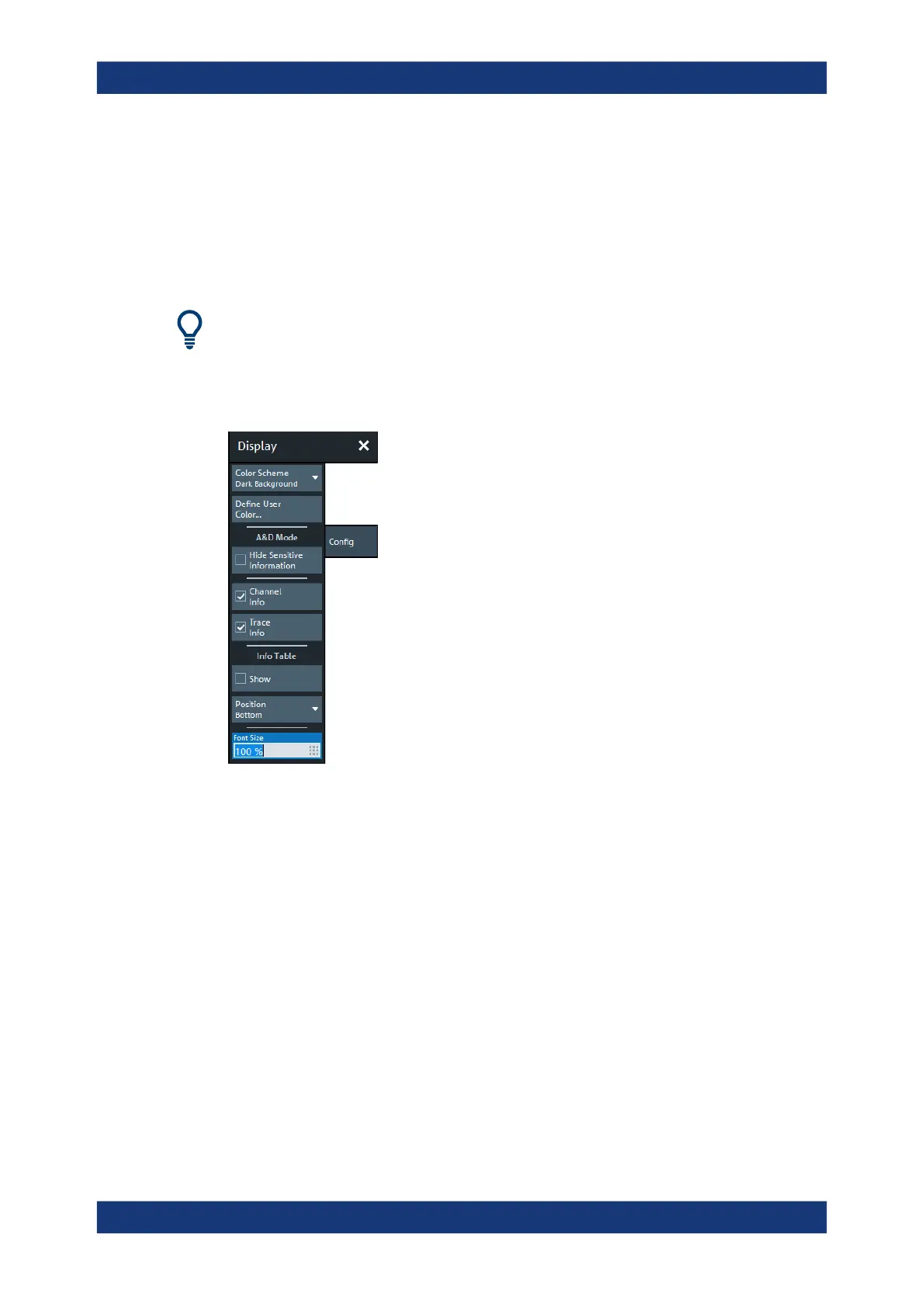

5.17.3 Config tab
Displays or hides controls and information elements of the screen and controls the
appearance of the individual diagrams.
Hiding the controls and information elements leaves more space for the diagrams. All
elements can be shown or hidden simultaneously.
Related information
Refer to Chapter 4.2.1, "Display elements of a diagram", on page 102.
5.17.3.1 Controls on the Config tab
Color Scheme
Controls the colors in the diagram areas. Color schemes are global settings and apply
to all active recall sets.
The following predefined color schemes are optimized for the analyzer screen and for
color hardcopies, respectively:
●
"Dark Background" sets a black background color. The traces and information ele-
ments in the diagram areas are displayed in different colors. This setting is usually
suitable for observing results on the analyzer screen.
●
"Light Background" sets a light background color. The traces and information ele-
ments in the diagram areas are displayed in different colors. This setting is suitable
for generating color hardcopies of the screen.
The following predefined color schemes can be appropriate for generating black and
white hardcopies of the screen:
●
"Black and White Line Styles" sets a white background color. All traces and infor-
mation elements in the diagram areas are black, however, the traces are drawn in
different line styles.
Display softtool
