GUI reference
R&S
®
ZNB/ZNBT
742User Manual 1173.9163.02 ─ 62
●
"Black and White Solid" sets a white background color. All traces and information
elements in the diagram areas are black. All traces are drawn with solid lines.
"User Define..." opens a dialog to modify the predefined schemes, changing the colors
and styles of the individual display elements.
See Chapter 5.17.3.2, "Define User Color Scheme dialog", on page 743.
Remote command:
SYSTem:DISPlay:COLor
Hide Sensitive Information
Unmasks or masks all stimulus value occurrences in the VNA GUI for the current recall
set.

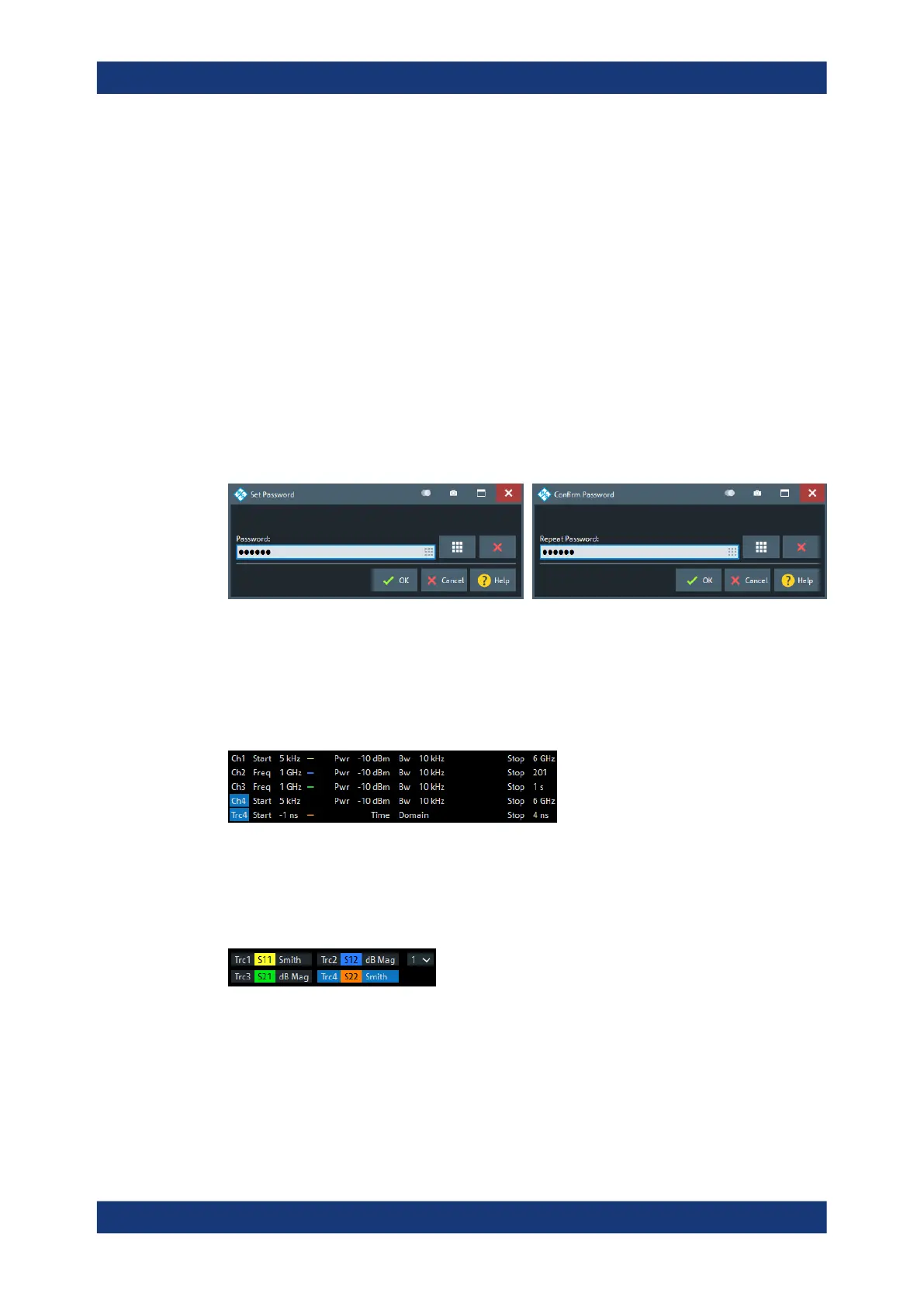

When you check "Hide Sensitive Information" for a particular recall set (to mask the
stimulus values), you are asked to set a password. If this password is non-empty, it is
requested the next time someone tries to uncheck "Hide Sensitive Information" (to
unmask all stimulus values) for this recall set.
Both checked state and password are stored in (and loaded from) the active recall set.
Remote command:
DISPlay:ANNotation:FREQuency[:STATe]
Channel Info
Shows or hides the channel lists in the lower part of the diagrams.
Remote command:
DISPlay:ANNotation:CHANnel[:STATe]
Trace Info
Shows or hides the trace lists in the upper part of the diagrams.
Remote command:
DISPlay:ANNotation:TRACe[:STATe]
Info Table: Show / Position
Shows or hides the info table and defines its position.
Display softtool
