The available settings comprise the sweep type (with related parameters), the trigger
conditions, and the periodicity of the measurement.
Access: Channel – [Sweep] hardkey
Background information
Refer to the following sections:
●
Chapter 4.1.4, "Sweep control", on page 90
●
Chapter 4.1.4.4, "Stimulus and sweep types", on page 96
5.10.1 Sweep Params tab
Allows you to define the scope and timing of the measurement in the active channel.
Segmented sweeps
In "Segmented" linear frequency sweeps, the sweep parameters can be set independ-
ently for each segment. See Chapter 5.10.2.2, "Define Segments dialog", on page 431.
System error correction
In general, the system error correction is no longer valid after a change of the sweep
parameters. The status of the calibration is shown in the trace list. If the number of
points is changed, the analyzer interpolates the correction data. The calibration label
"Cal Int" is displayed. See also Chapter 4.5.4, "Calibration labels", on page 181.
Number of Points
Sets the total number of measurement points per sweep. The minimum number of
points is 1 (measurement at a single frequency/power/time value), the maximum is
100,001.

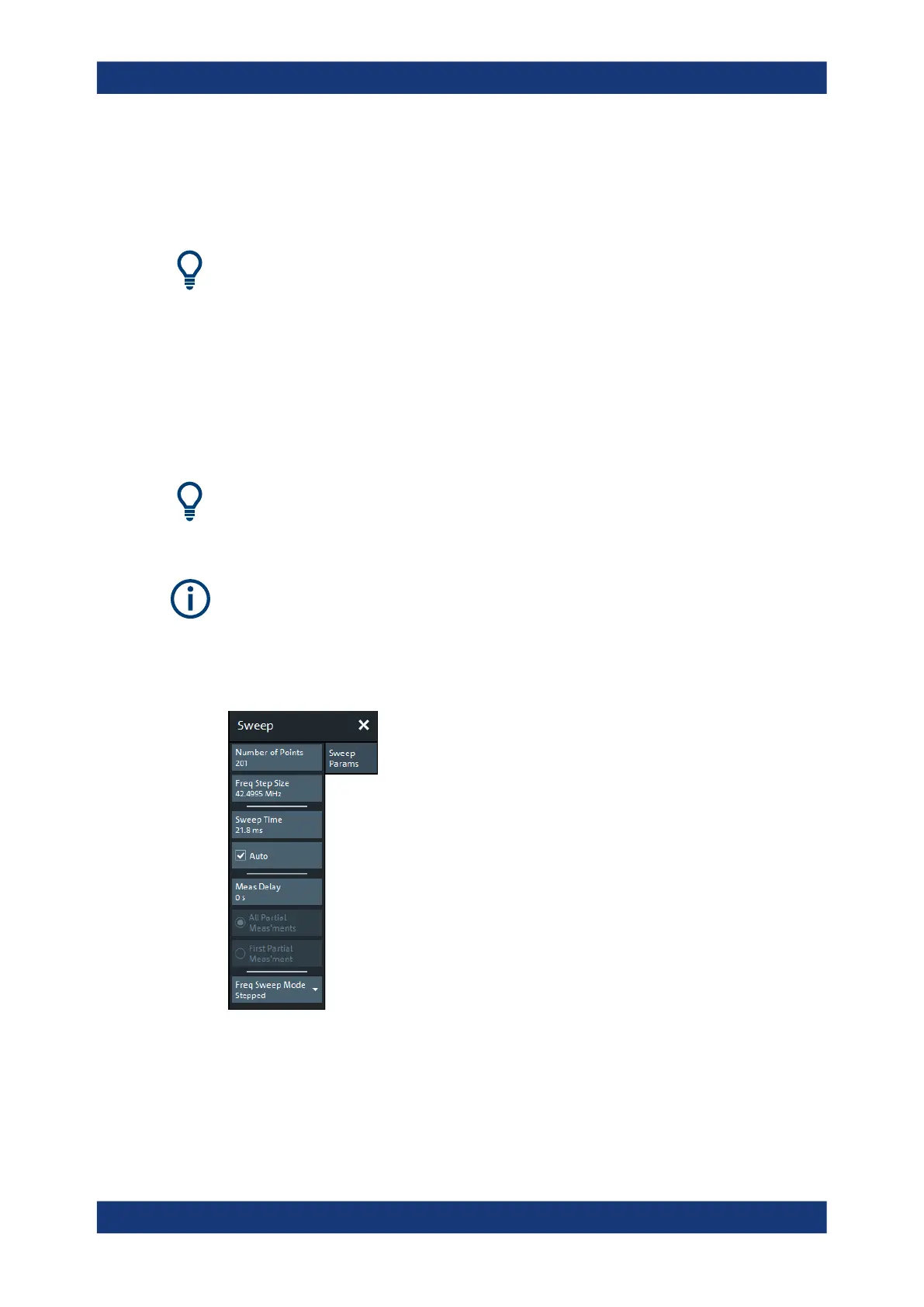

Sweep Softtool
To Next Page
