The table defines all settings related to "Multiple Triggers" (see Chapter 5.10.3, "Trig-

ger tab", on page 437). For all measurement sequences the following trigger sources

are available:

●

"Free Run" means that a trigger signal is not required

●

"External 1" is the external trigger signal fed in at either the Trigger In connector on

the rear panel or pin 2 of the User Port connector.

●

"External 2" is the external trigger signal fed in at pin 25 of the User Port connector

on the rear panel.

●

"External 1 and 2"/"External 1 or 2" means that the measurement sequence is initi-

ated after the analyzer has received an event from external trigger signal 1 and/or

2. A Signal Type must be specified for both trigger signals.

●

Manual means that the trigger event is generated manually, by selecting the Man-

ual Trigger button.

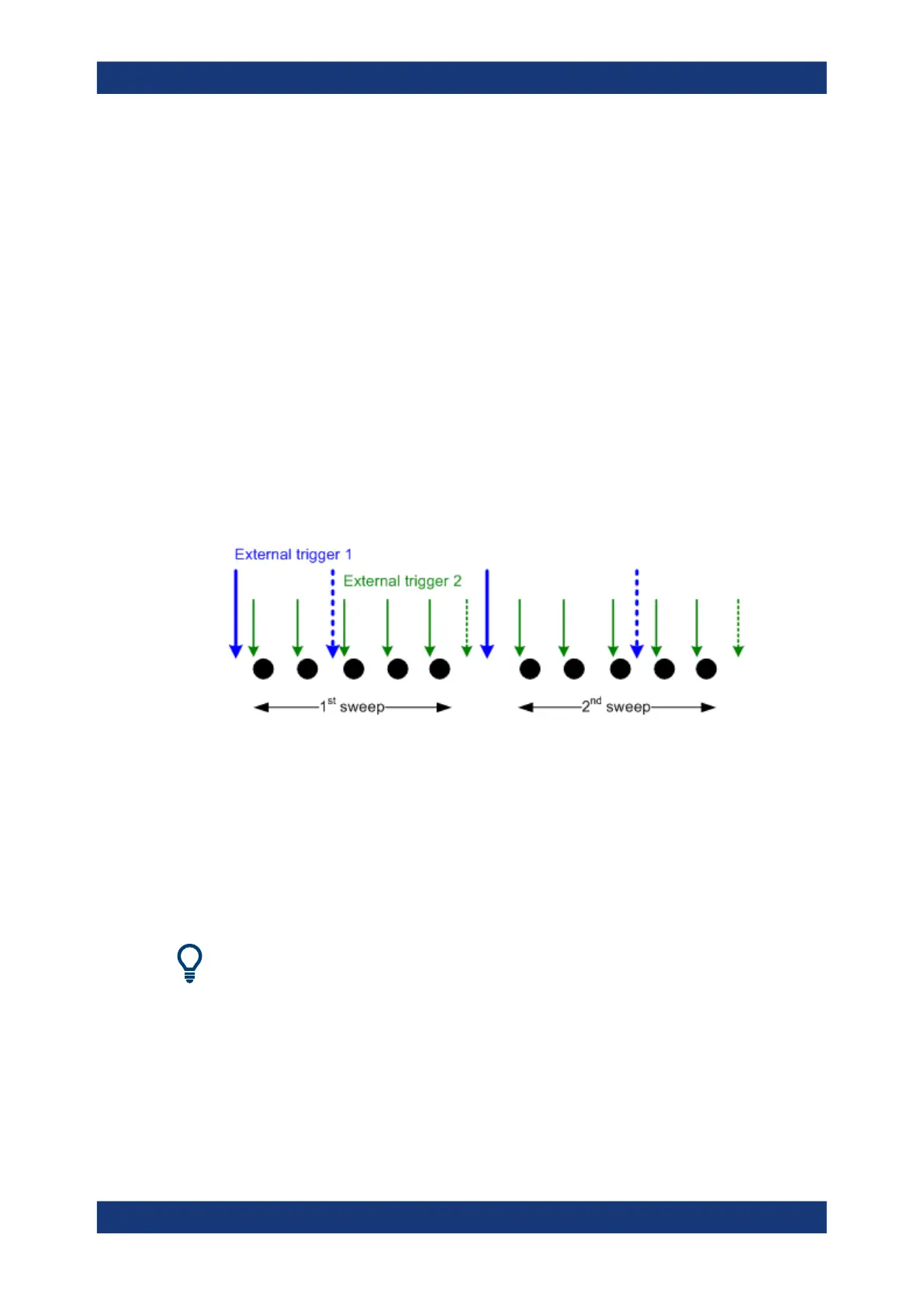

For example, a new sweep can be triggered by an external trigger no. 1, while the indi-

vidual sweep points are triggered by external trigger no. 2. External trigger 1 is ignored

if a sweep is running, external trigger 2 is ignored if there is no running sweep. In the

figure below a sweep comprises 5 measurement points and dotted arrows depict

ignored trigger events.

Remote command:

TRIGger<Ch>[:SEQuence]:MULTiple:SOURce

TRIGger<Ch>[:SEQuence]:MULTiple:SLOPe<Num>

TRIGger<Ch>[:SEQuence]:MULTiple:HOLDoff

5.10.4 Sweep Control tab

Allows you to control the sweep execution.

The availability of certain settings depends on the selected Remote Language.
