GUI reference
R&S
®
ZNB/ZNBT
712User Manual 1173.9163.02 ─ 62
Access: System – [Applic] > "DUT Centric"
For 2nd generation R&S ZNB (order nos 1334.3330.*) this application was moved to a
dedicated DUT Softtool softtool (System – [DUT]).
5.16.3.1 DUT Centric Wizard

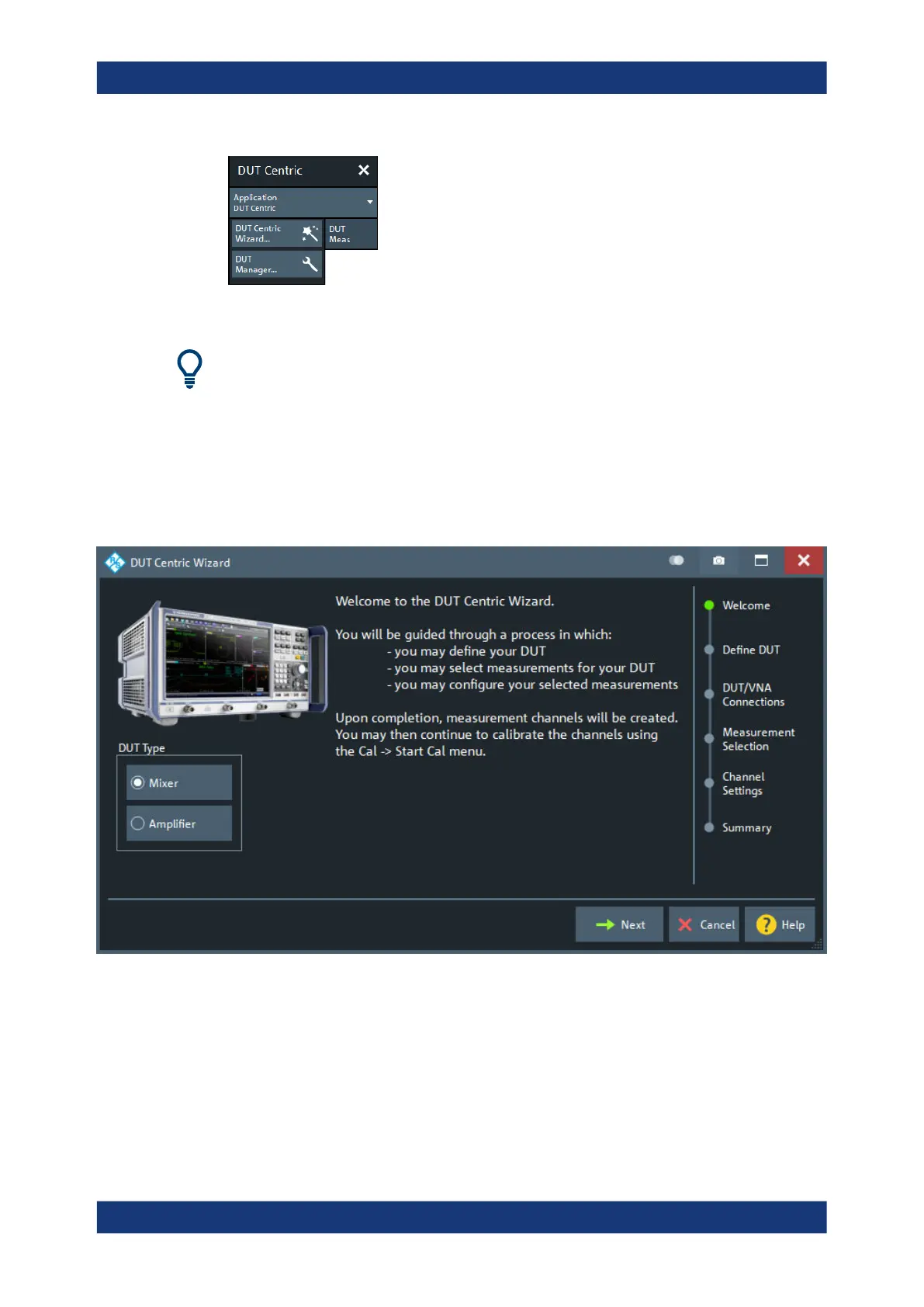

The "DUT Centric Wizard" guides you through the measurement setup for certain fun-
damental DUT types.
Access: System – [Applic] > "Application: DUT Centric" > "DUT Centric Wizard"
The "DUT Centric Wizard" lets you proceed with the followng steps:
1. Select the "DUT Type".
Currently, this can be either "Mixer" or "Amplifier", where "Mixer" measurements
require option R&S ZNB/ZNBT-K4 (see Chapter 4.7.4, "Frequency conversion
measurements", on page 236). Other DUT types may be added in future releases
of the analyzer firmware.
Applic softtool
