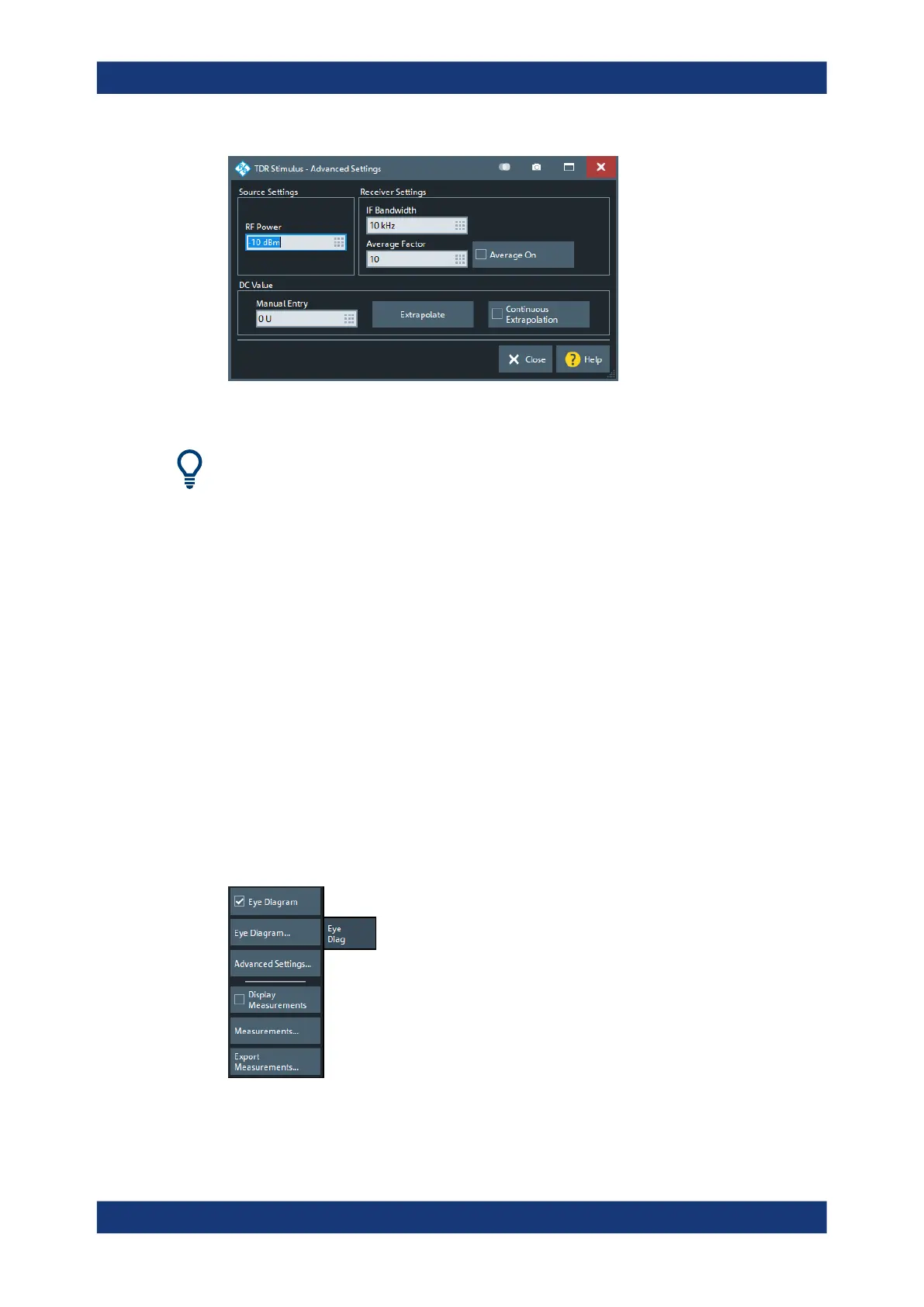

Figure 5-74: TDR Stimulus – Advanced Settings dialog
For additional settings, see Chapter 5.5.5, "Time Domain tab", on page 348.
Source/Receiver Settings
The "RF Power" is the output power of the R&S ZNB/ZNBT, "IF Bandwidth" and "Aver-
age Factor" determine the operation of the related R&S ZNB/ZNBT receiver. For a
description and related remote control commands, see Chapter 5.9, "Power Bw Avg
softtool", on page 419.
DC Value
Defines how to calculate the DC gain of the DUT (since the R&S ZNB/ZNBT cannot
measure down to 0 Hz). These parameters are the same settings as for the standard
time domain option R&S ZNB/ZNBT-K2. For a description and related remote control
commands, see "DC Value" on page 352.
5.16.2.4 Eye Diag tab
The "Eye Diag" tab is for enabling and configuring the eye diagram and its measure-
ments.
Access: System – [Applic] > "TDR" > "Eye Diag"
