GUI reference

R&S

ZNB/ZNBT

690User Manual 1173.9163.02 ─ 62

Eye Diagram

The "Eye Diagram" checkbox enables the eye diagram with the current settings

(default or defined in Eye Diagram dialog) or disables it.

Remote command:

CALCulate<Chn>:EYE:STATe

Eye Diagram ...

Opens the Eye Diagram dialog that allows to create an eye diagram and to perform

basic settings on the simulated digital signal generator.

Advanced Settings...

If the active trace is an eye diagram, the "Advanced Settings..." button opens the

Advanced Settings dialog that allows in-depth configuration of the simulated digital sig-

nal generator and receiver.

Display Measurements

If the active trace is an eye diagram, the "Display Measurements" button in the Eye

Diag tab softtool tab toggles the display of the eye diagram results.

The available results depend on the selected Modulation:

●

For NRZ modulated generator signals, the result display comprises two separate

info fields for "Basic" and "Time" results (see "Measurements..." on page 691). By

default they are stacked below each other, however, they can be moved independ-

ently like any other info field.

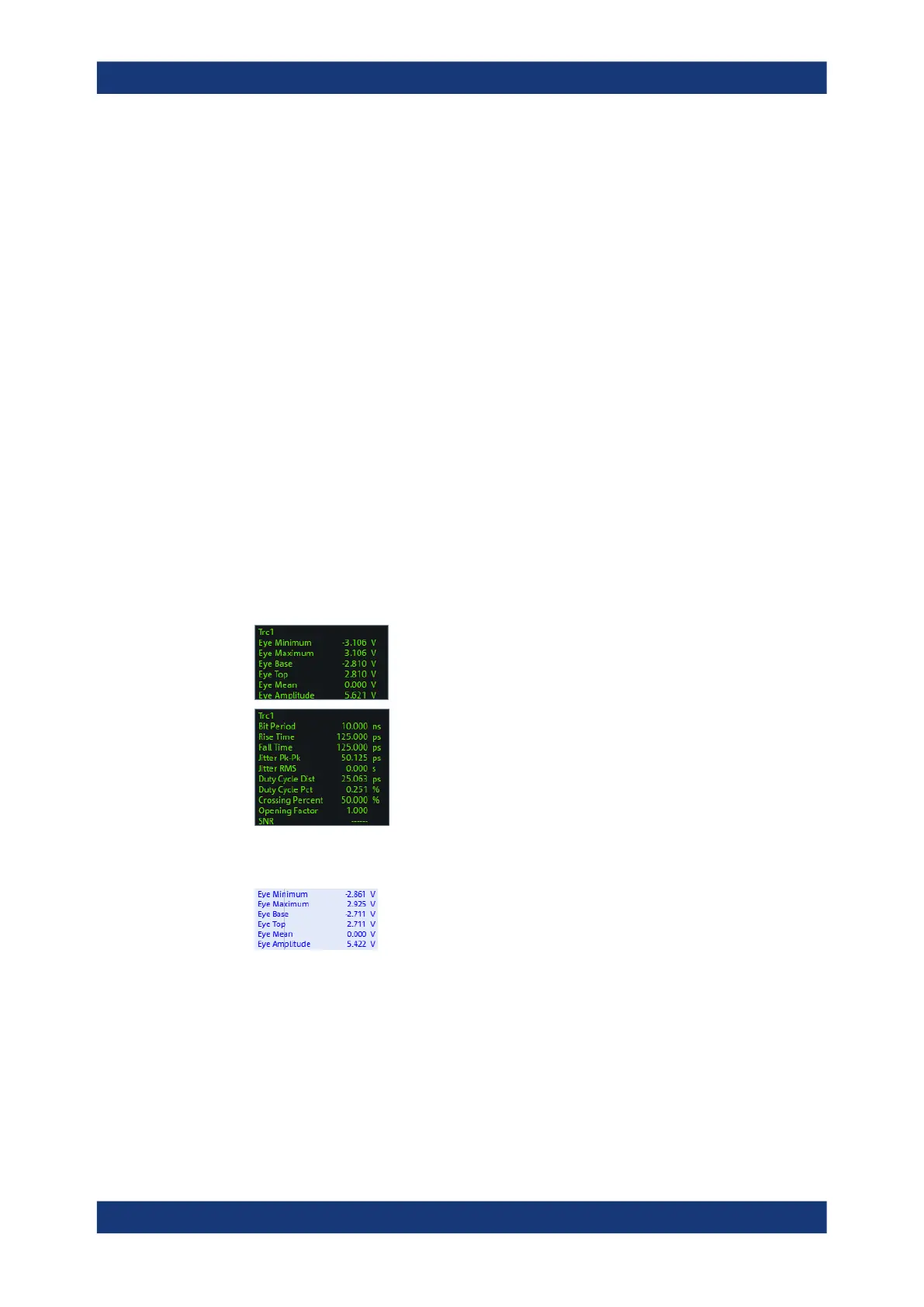

Figure 5-75: Eye Diagram Results (NRZ Modulation)

●

For PAM modulation types, only a reduced set of "Basic" results is available.

Figure 5-76: Eye Diagram Results (PAM Modulations)

For a description of the result values, see "Eye Diagram Results" on page 231.

Remote command:

CALCulate<Chn>:EYE:MEASurement:STATe

CALCulate<Chn>:EYE:MEASurement:DATA?
