("System and Security > Windows Firewall" in Windows 7)

● Select "Allow an app or feature through Windows Defender Firewall" to enable

"File and Printer Sharing".

(Windows 7: select "Change Settings > Allow a program or feature through

Windows Firewall" to enable "File and Printer Sharing").

● Select "Turn Windows Firewall on or off" to enable or disable the firewall.

Confirm the user account control message to allow the desired changes (see Fig-

ure 3-1). For detailed information about the firewall, refer to the Windows

Help.

3.2 Instrument tour

This chapter gives an overview of the control elements and connectors of the

R&S ZNB/ZNBT and gives all information that is necessary to put the instrument into

operation and connect external devices.

The meanings of the labels on the product are described in "Meaning of safety labels"

on page 17.

3.2.1 Front panel R&S ZNB

The front panel of a R&S ZNB consists of the touchscreen with the diagrams and soft-

tool panels (left side), the hardkey area (right side) and the test port area below. Brief

explanations on the controls and connectors, the hardkey area and the rear panel can

be found on the next pages.

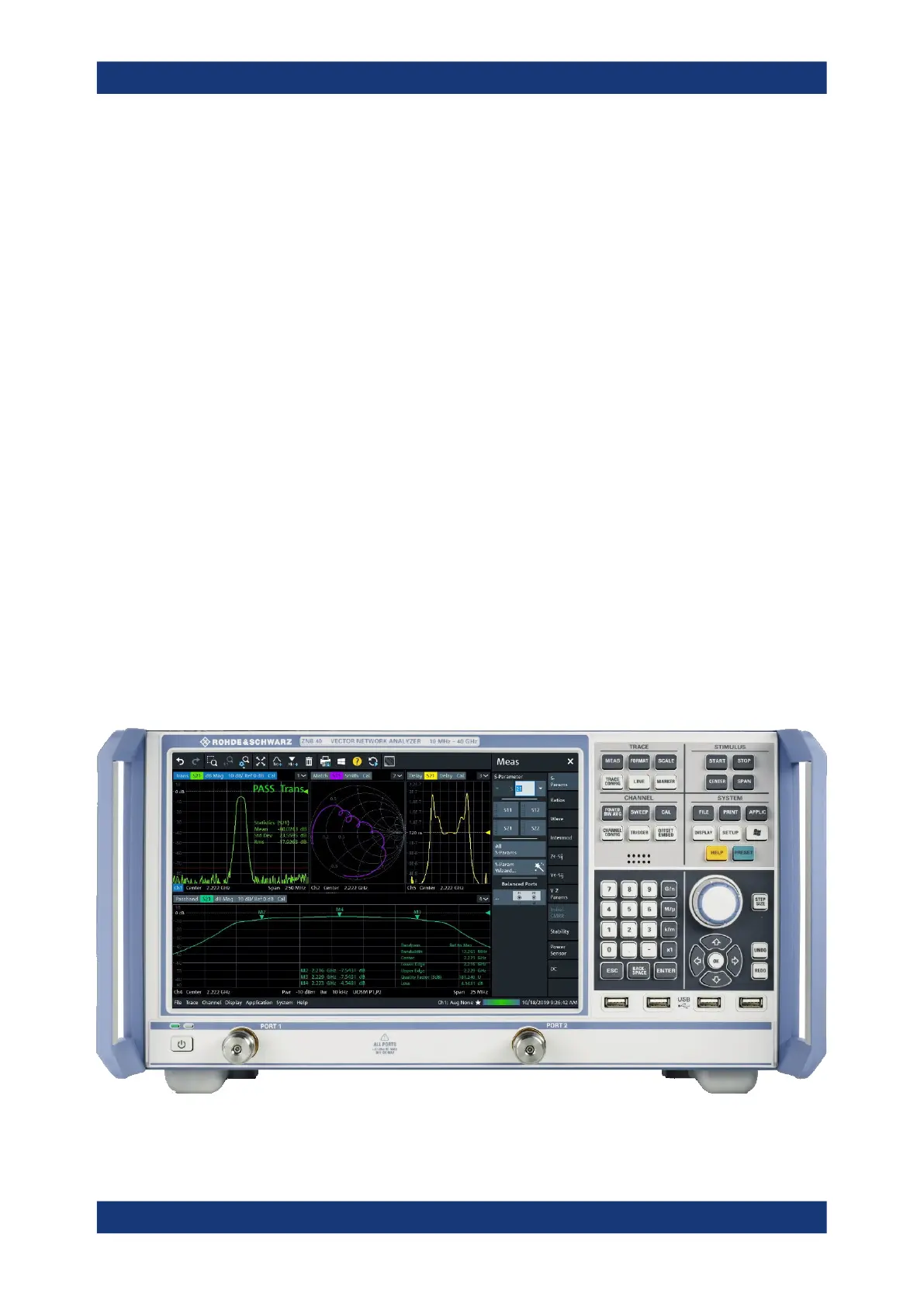

Figure 3-2: R&S

ZNB40 with two ports

Instrument tour

R&S ZNB Series User Manual
