GUI reference
R&S
®
ZNB/ZNBT
668
User Manual 1
173.9163.02 ─ 62

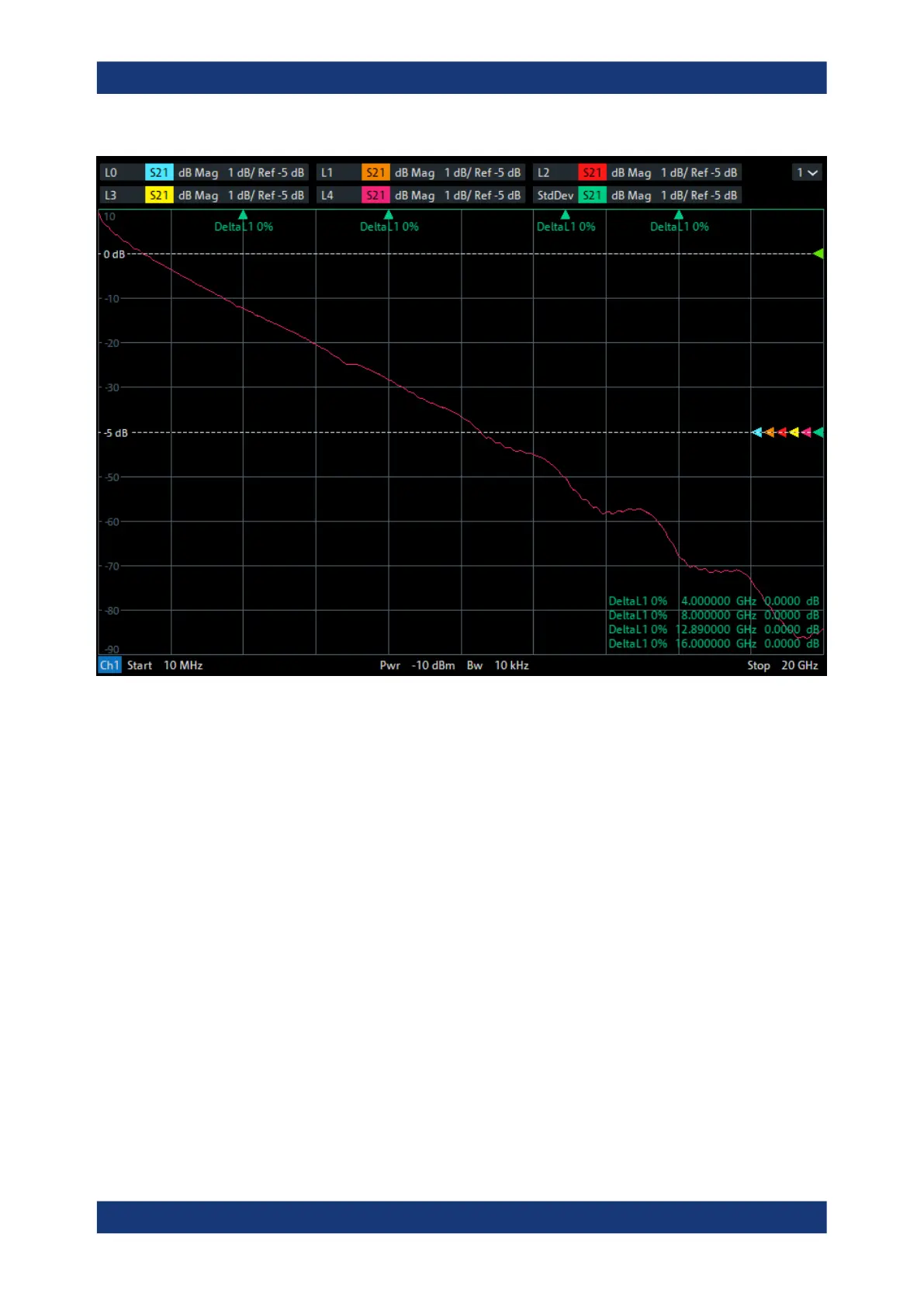

Markers "DeltaL1..." are added to the"StdDev" trace at the
analysis frequencies
. The
marker names indicate the computed Delta-L uncertainties.
5.14
File softtool
The "File" softtool allows you to work with recall sets and trace data.
Access:
●
System – [File Print], for 2nd generation R&S
ZNB models only (order nos.
1334.3330.xx)
●
System – [File], for other R&S
ZNB and R&S
ZNBT
File softtool
667
669
