See Chapter 4.7.29.4, "Multiple paths: precision vs. speed", on page 273 for back-
ground information.
The selection is only enabled, if at least one of the connected switch matrices has mul-
tiple routes with non-identical priorities.

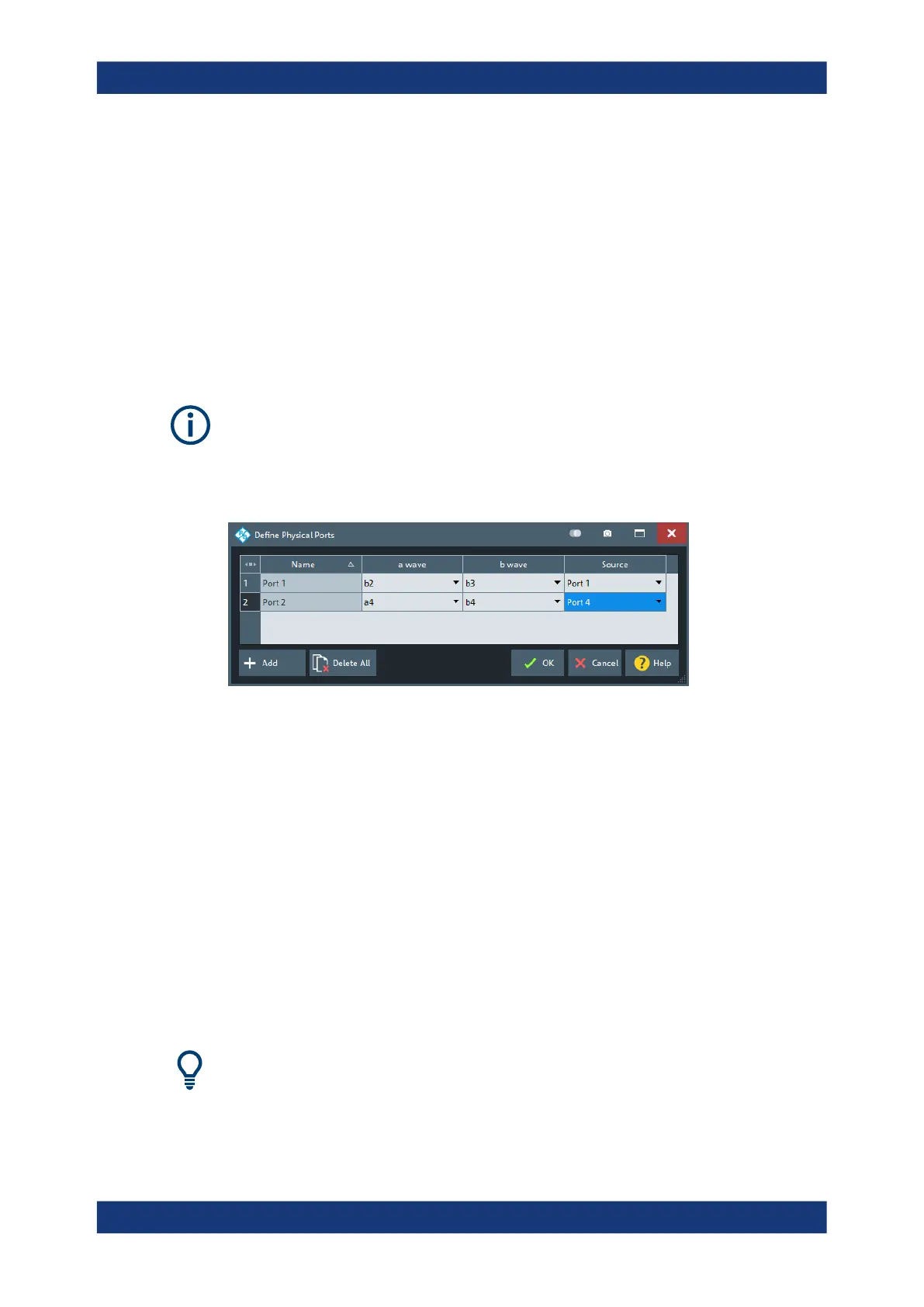

5.18.5.2 Define Physical Ports dialog
Allows you to redefine the physical VNA ports (see Chapter 4.3.1.2, "Redefined S-
parameters", on page 127).
Access: System – [Setup] > "External Ports" > "Define Ports..."
●
Redefined physical ports are global, persistent settings, i.e. they are valid for all
recall sets. A [Preset] does not reset the physical port configuration.
●
Redefining physical ports causes a factory reset.
The factory reset deletes all switch matrix RF connections.
a wave, b wave, Source
Define a physical port by assigning its reference receiver, measurement receiver and
generator, respectively.
The receivers and generators can be freely assigned, but without reusing the same
(original) physical port in different (redefined) ports.
Remote command:
[SENSe:]UDSParams<Pt>:PARam
[SENSe:]UDSParams:ACTive
5.18.5.3 External Matrices dialog
The "External Matrices" dialog allows you to discover and register external switch
matrices.
Access: System – [Setup] > "External Ports" > "Switch Matrix..."
Background information
Refer to section Chapter 4.7.29, "External switch matrices", on page 269.
