R&S ZNB Series User Manual

GUI reference
R&S
®
ZNB/ZNBT
304User Manual 1173.9163.02 ─ 62
Side
Defines the position of the intercept point relative to the lower and upper tones.
"Major"
Denotes the lower or upper intercept point, whichever is smaller. The
"Major" intercept point reveals the worst-case performance of the
DUT.
"Upper"
The "Upper" intercept points are measured at frequencies above the
upper tone.
"Lower"
The "Lower" intercept points are measured at frequencies below the
lower tone.
Remote command:
CALCulate<Ch>:PARameter:MEASure
CALCulate<Ch>:PARameter:SDEFine
DUT Port
Defines if the intercept point is referenced to the DUT output or input port. Both values
differ by the attenuation of the lower tone signal upon transmission through the DUT;
see "Intermodulation quantities" on page 246.
Remote command:
CALCulate<Ch>:PARameter:MEASure
CALCulate<Ch>:PARameter:SDEFine

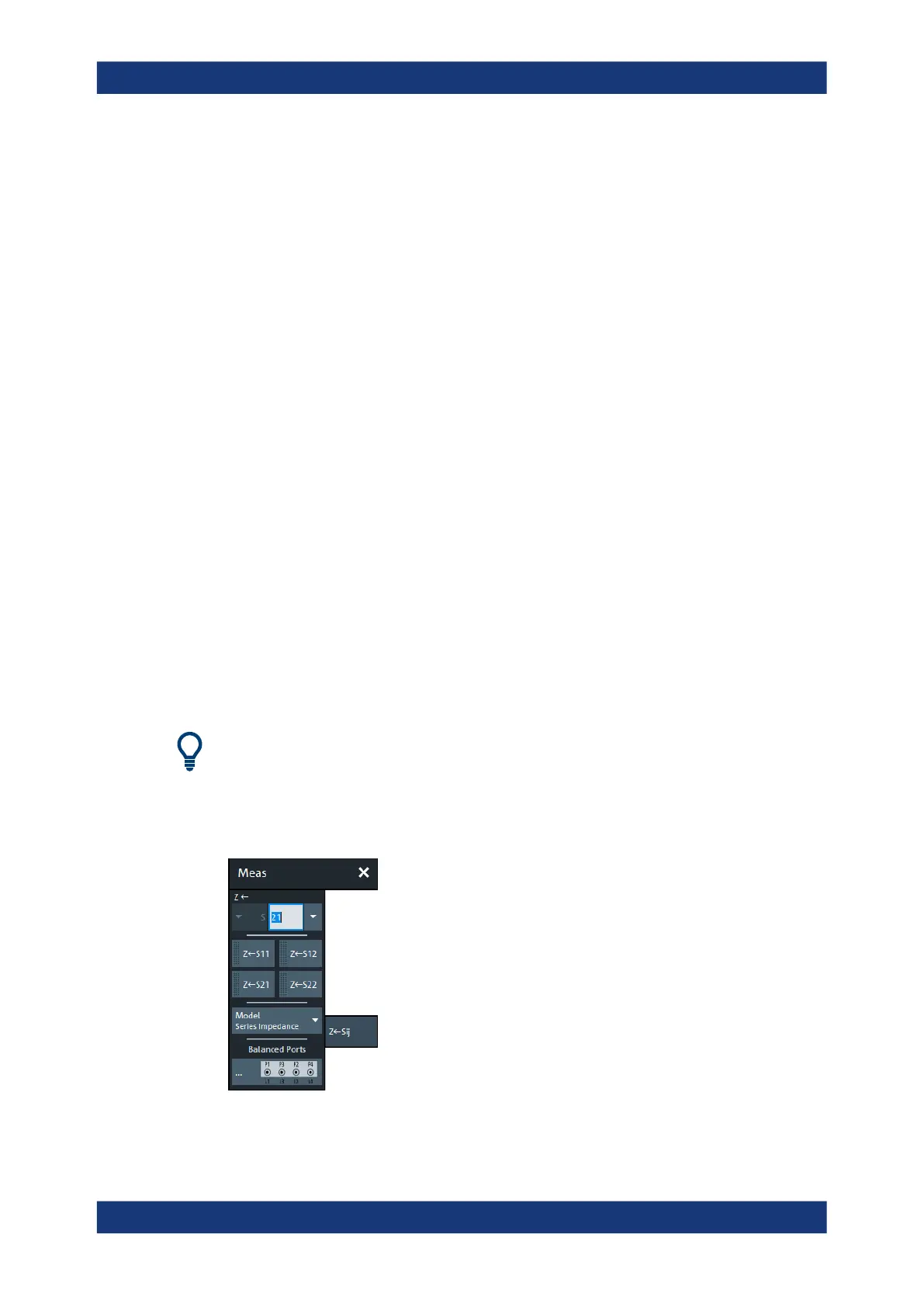

5.2.5 Z←Sij tab
Selects converted impedances as measured quantities. The impedances are calcula-
ted from the measured S-parameters.
Background information
Refer to the following sections:
●
Chapter 4.3.3, "Impedance parameters", on page 130
●
Chapter 4.3.3.1, "Converted impedances", on page 130
Meas softtool
