R&S ZNB Series User Manual

GUI reference
R&S
®
ZNB/ZNBT
336User Manual 1173.9163.02 ─ 62
"Disable all
other Measure-
ments"
●
Disables all channels, except the active one
●
Disables all traces in the active channel, except the active one
●
Hides all diagrams except the active one
"Enable all
Measure-
ments"
Restores the previous channel/trace/diagram configuration
Same functionality as the

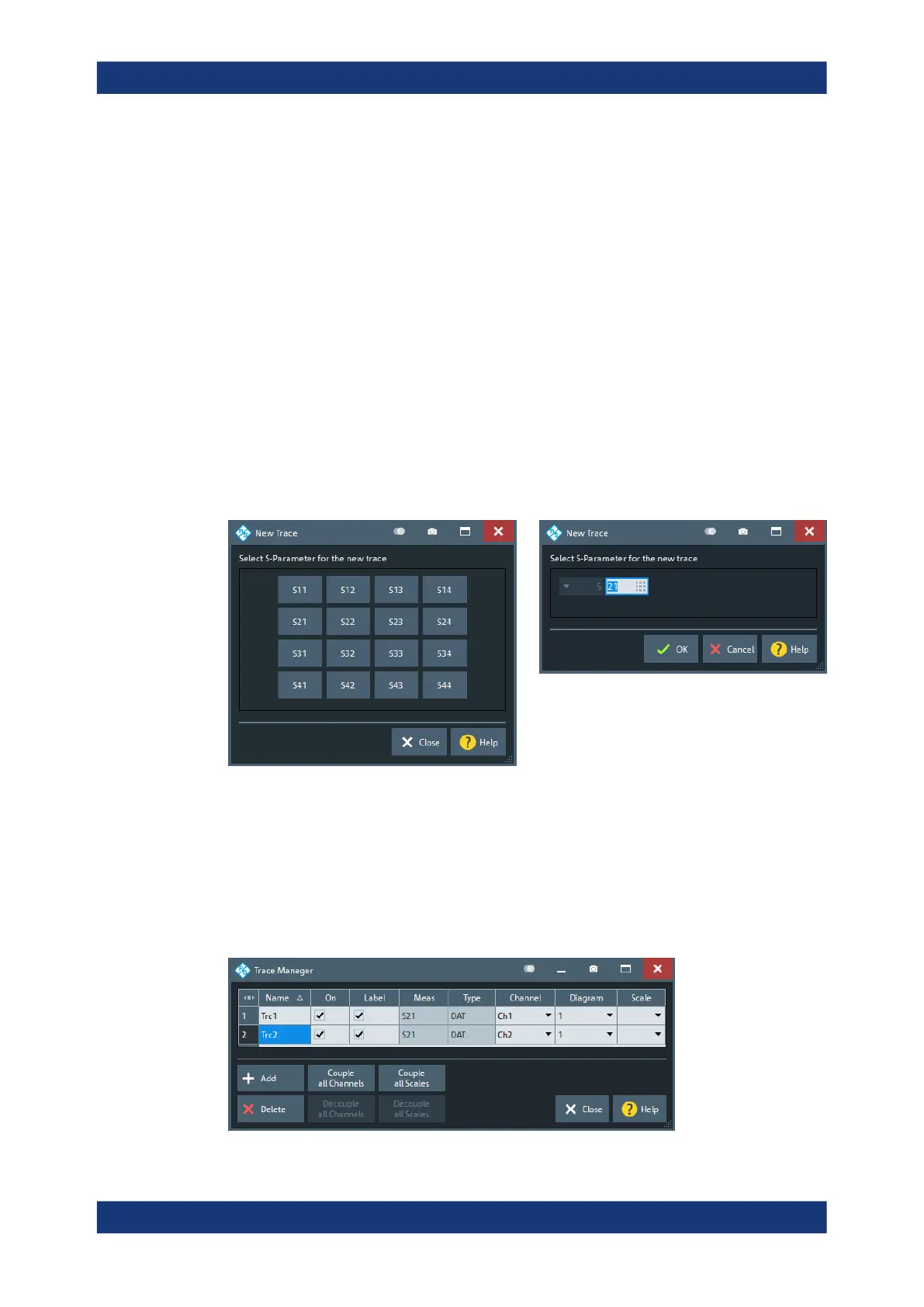

5.5.1.2 New Trace dialog
The "Trc+" tool bar button allows you to create a trace in the active channel.
●
Tap/click the "Trc+" button to duplicate the active trace (equivalent to Add Trace).
●
Drag the respective button onto the diagram area to create the trace in any other
existing diagram or in a new one.
After the button has been dropped, the "New Trace" dialog pops up and lets you
select the quantity to be measured.
left
= buttons (up to 9 ports)
right = numeric input (10 or more ports)
5.5.1.3 Trace Manager dialog
The "Trace Manager" dialog allows you to perform operations on traces.
Access: Trace – [Trace Config] > "Traces" > "Trace Manager..."
Trace Config softtool
