R&S ZNB Series User Manual

GUI reference
R&S
®
ZNB/ZNBT
562User Manual 1173.9163.02 ─ 62
Note: If either multiple DUTs are configured (see Chapter 5.12.2.3, "Define Parallel
Measurement dialog", on page 570) or the "Fixture Simulator" is disabled for the rela-
ted channel (see "Fixture Simulator" on page 549), the "Balanced Ports..." button is
inactive (grayed out).
Multiple DUTs...
Opens a dialog that allows you to set up the analyzer for parallel measurements on
multiple DUTs. See Chapter 5.12.2.3, "Define Parallel Measurement dialog",
on page 570.

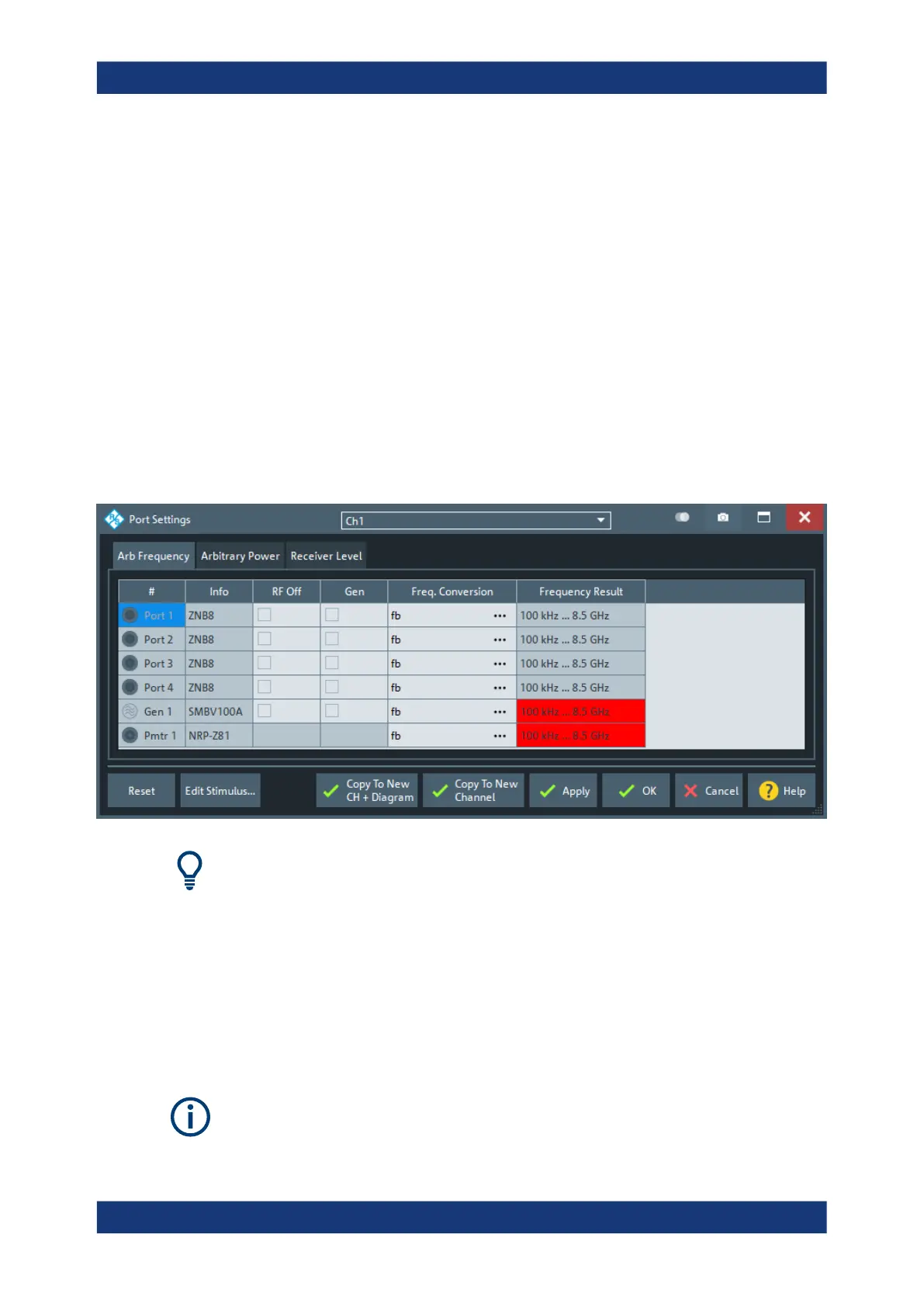

5.12.2.2 Port Settings dialog
The "Port Settings" dialog is an example of a Multi-channel setup dialog. For the
selected channel, it configures the source and receiver ports of the R&S ZNB/ZNBT for
arbitrary frequencies, source and receiver levels.
Access: Channel – [Channel Config] > "Port Config" > "Port Settings..."
Related information
Refer to the following sections:
●
Chapter 4.7.4, "Frequency conversion measurements", on page 236
●
Chapter 5.18.4.2, "External Power Meters dialog", on page 780
●
Chapter 5.18.4.4, "External Generators dialog", on page 785
Arb Frequency tab
Defines port-specific frequencies (arbitrary mode) and other port-specific source set-
tings.
Arbitrary mode requires software option R&S ZNB/ZNBT-K4, see Chapter 4.7.4, "Fre-
quency conversion measurements", on page 236.
Channel Config softtool
