CALCulate<Ch>:TRANsform:VNETworks:PPAir:EMBedding<ListId>:

PARameters:R<1|2|3>

CALCulate<Ch>:TRANsform:VNETworks:PPAir:EMBedding<ListId>:

PARameters:G<1|2|3>

D1, D2

The "D1" (and "D2") buttons are enabled as long as the selected deembedding/embed-

ding network is defined using Touchstone files.

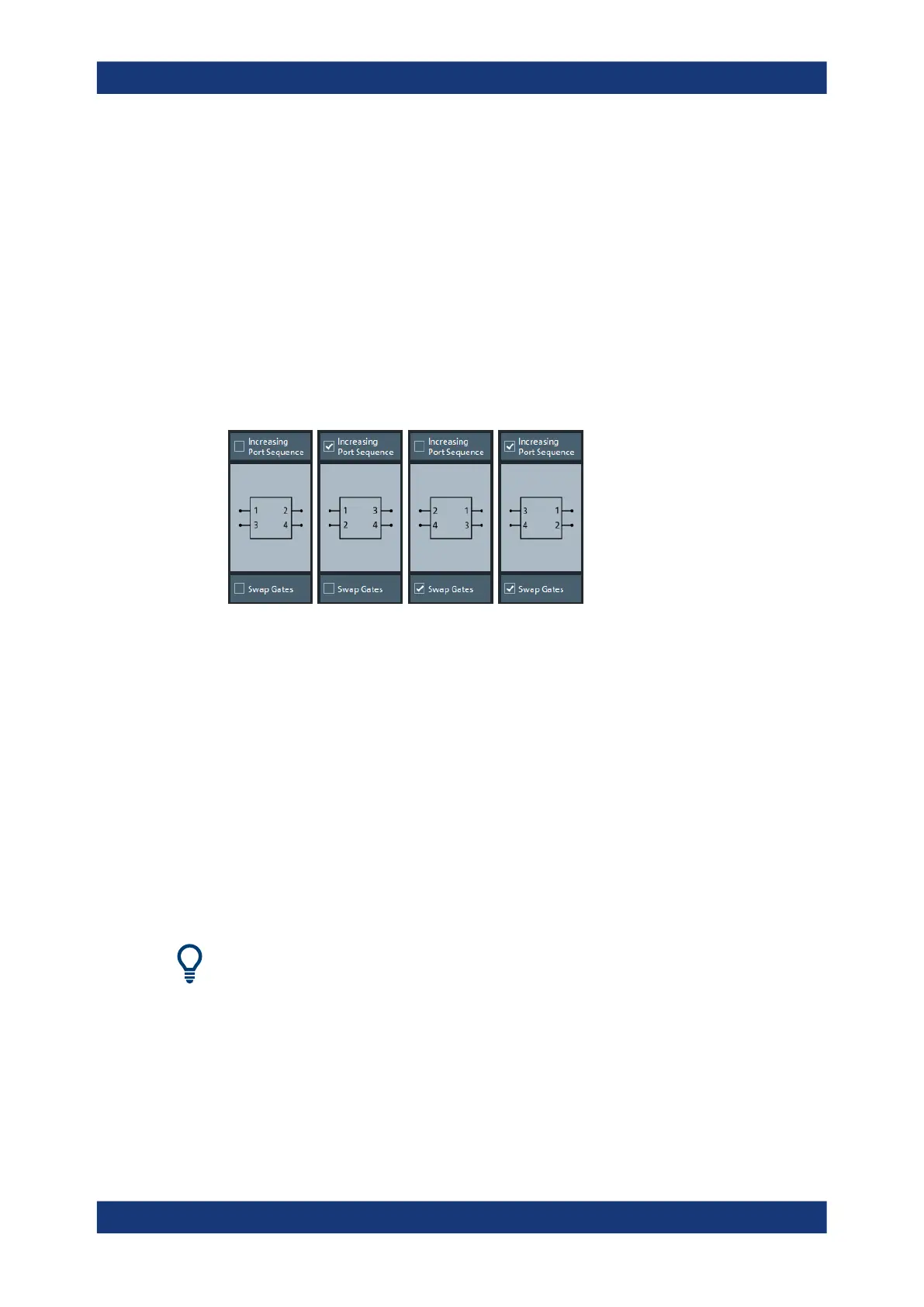

When loading a touchstone file, the analyzer by default assumes odd ports left (VNA

side), even ports right (DUT side). However, it is also possible to instruct the analyzer

to assume an "Increasing Port Sequence", i.e. that the low port numbers are on the

VNA side. Furthermore it is possible to "Swap Gates", i.e. to instruct the analyzer to

swap the VNA and DUT side.

Note: The loaded file is stored in the active recall set. Persisted recall sets contain the

full de-/embedding data so that they can be transferred to other instruments.

Remote command:

MMEMory:LOAD:VNETworks<Ch>:PPAir:DEEMbedding<ListId>

MMEMory:LOAD:VNETworks<Ch>:PPAir:EMBedding<ListId>

5.13.7 Balanced tab

Selects 4-port transformation networks for balanced port deembedding/embedding,

defines their parameters, assigns them to a balanced port and enables embedding.

Use the complementary dock widget to create Balanced panel and to activate or deac-

tivate dembedding/embedding for selected balanced ports (see Chapter 5.13.1.5, "Bal-

anced panel", on page 611).

Background information

Refer to the section Chapter 4.6.2.10, "Combining Several de-/embedding networks",

on page 219.

Offset Embed softtool
