R&S ZNB Series User Manual

GUI reference
R&S
®
ZNB/ZNBT
644User Manual 1173.9163.02 ─ 62

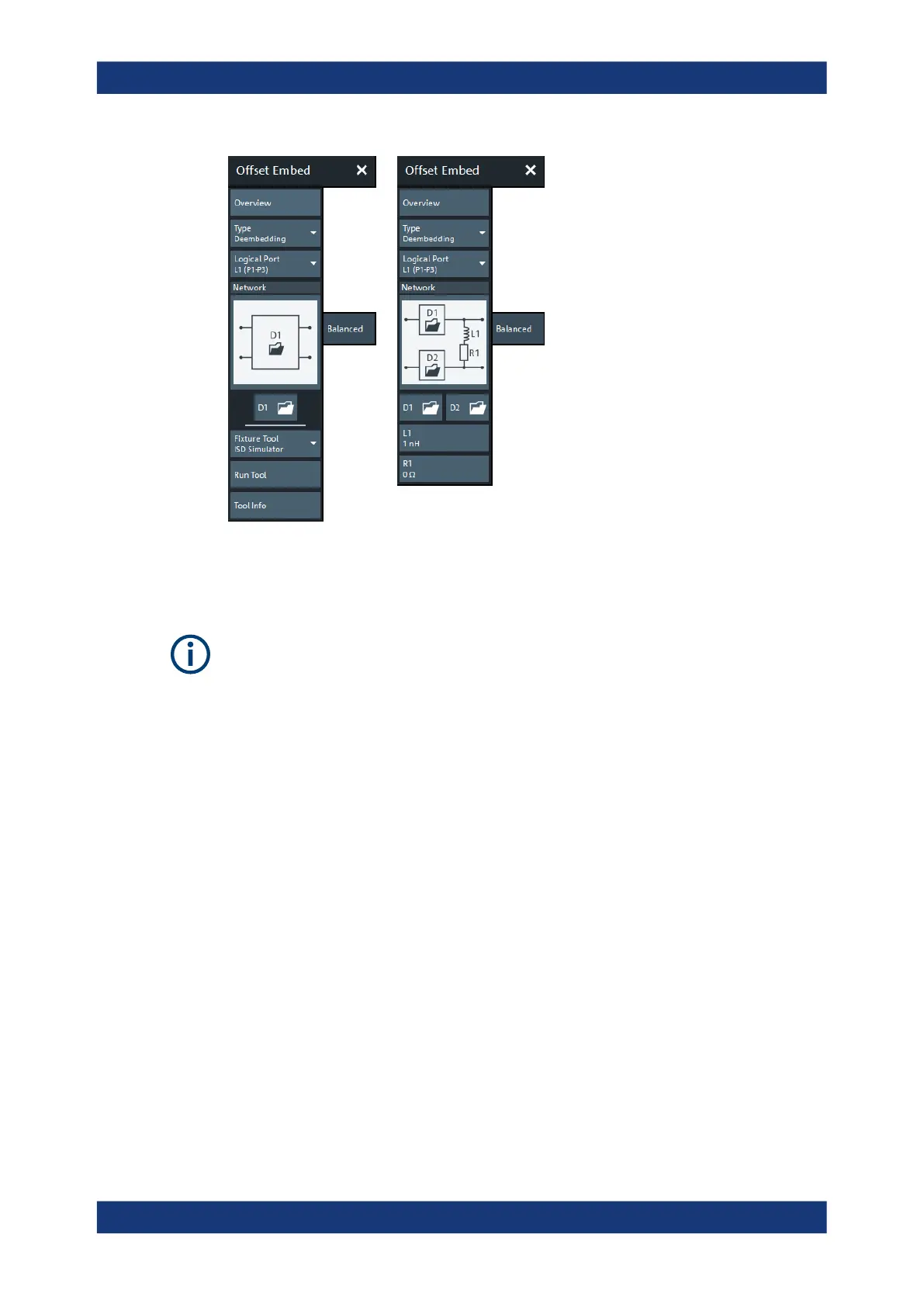

Figure 5-65: Offset Embed > Balanced softtool
left = 4 port data file selected for de-/embedding
right = other network selected for de-/embedding
If the "Fixture Simulator" is disabled for the related channel (see "Fixture Simulator"
on page 549), this tab is inactive, i.e. all controls except the "Overview" button are
grayed out.
Overview
See "Overview" on page 616.
Type
Switches between "Deembedding" and "Embedding" network definition.
Logical Port
Logical analyzer port, as defined in the "Balanced Ports" configuration. The transfor-
mation networks are defined such that the physical analyzer test ports are connected
to the left of the circuit; the DUT ports are on the right side.
You can define independent transformation networks for all balanced ports.
Remote command:
The <LogPt> numeric suffix in the embedding/deembedding commands identifies the
logical port; see e.g. CALCulate<Ch>:TRANsform:VNETworks:BALanced:
EMBedding<LogPt>[:STATe].
All Deembedding Activated
Deactivates or activates all deembeddings (single-ended, balanced, port set, ground
loop) for the active channel, if any.
This control is only visible if Type = "Deembedding".
Offset Embed softtool
