R&S ZNB Series User Manual

GUI reference
R&S
®
ZNB/ZNBT
448User Manual 1173.9163.02 ─ 62

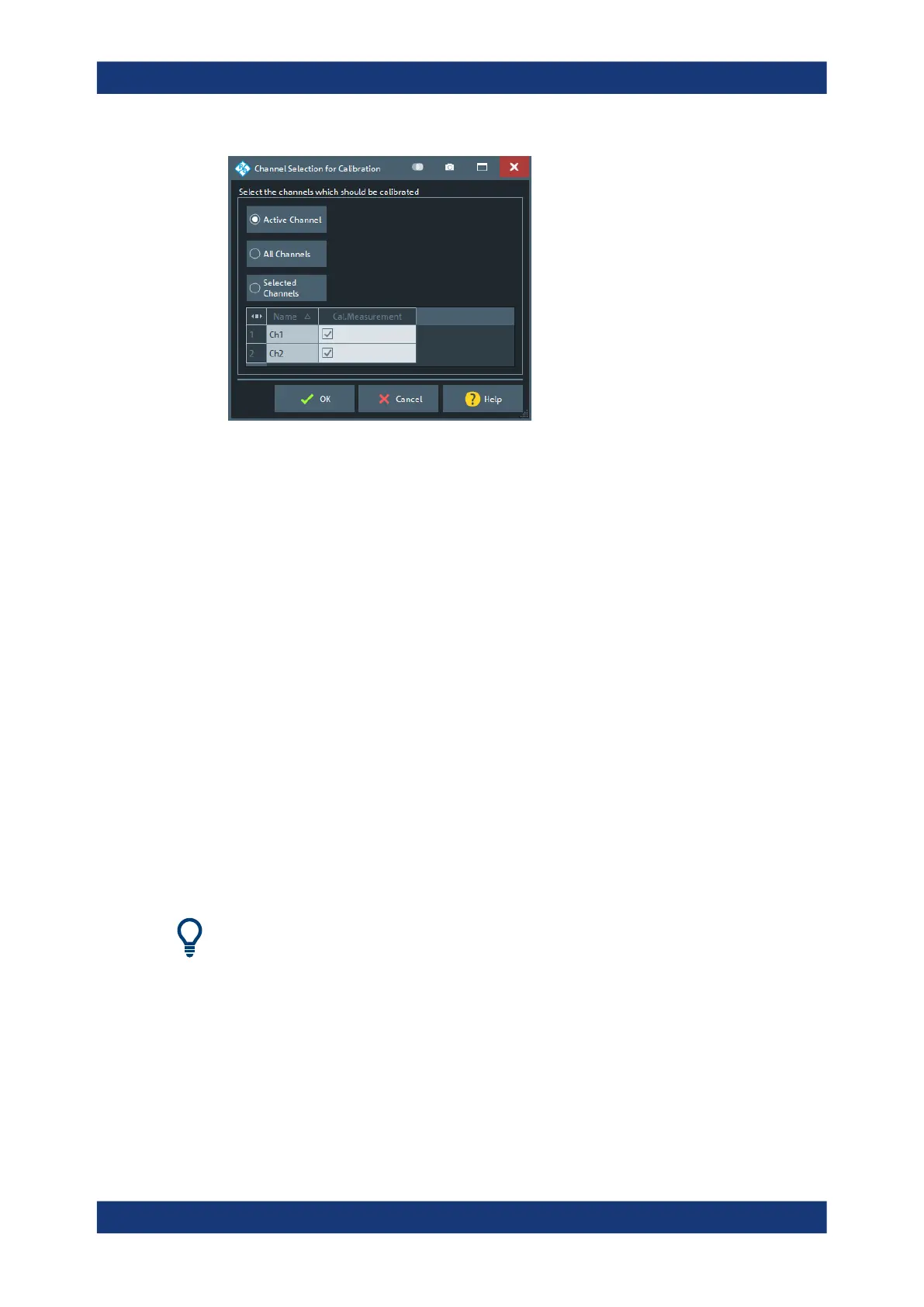

Use
●
"Active Channel" if you only want to calibrate the active channel
●
"All Channels" if you want to calibrate all channels in the current recall set
●
"Selected Channels" if you want to calibrate only certain channels
5.11.1.3 Calibration Unit wizard
The "Calibration Unit" wizard guides you through the setup and execution of an auto-
matic calibration.
Access: Channel – [Cal] > "Start Cal" > Calibration – "Start... (Cal Unit)"
The wizard proceeds in three steps.
1. Step 1: Ports allows you to configure the calibration and to select a calibration unit
(along with its characterization).
2. Step 2: Connections allows you to define the port assignments between the
R&S ZNB/ZNBT and the calibration unit.
3. Step 3: Cal Unit guides you through the required measurements on the standards
provided by the calibration unit. Finally, you can either apply the resulting error
terms to the related channels, or discard them.
Background information
Refer to Chapter 4.5.5, "Automatic calibration", on page 181.
Cal softtool
