GUI reference
R&S
®
ZNB/ZNBT
713User Manual 1173.9163.02 ─ 62
Currently the wizard only offers support for "Amplifier" measurements. Other DUT
types may be added in future releases of the analyzer firmware.
2. Specify the (basic) properties of your DUT.
3. Specify how the DUT is connected to the VNA.
4. Select the measurements to be performed.
At this point, the wizard knows how many additional channels are required, and
how they should be set up per default.
5. Adjust the default channel settings to your needs.
6. Review the channels to be created and the parameters to be measured. Decide
about calibration.
When you finish the "DUT Centric Wizard", the analyzer firmware creates and con-
figures the required channels for you. If you have decided to proceed with calibra-
tion, the wizards selects the suitable calibration types and guides you through the
channel calibrations (see "Guided Calibration wizard" on page 722).
Guided mixer setup

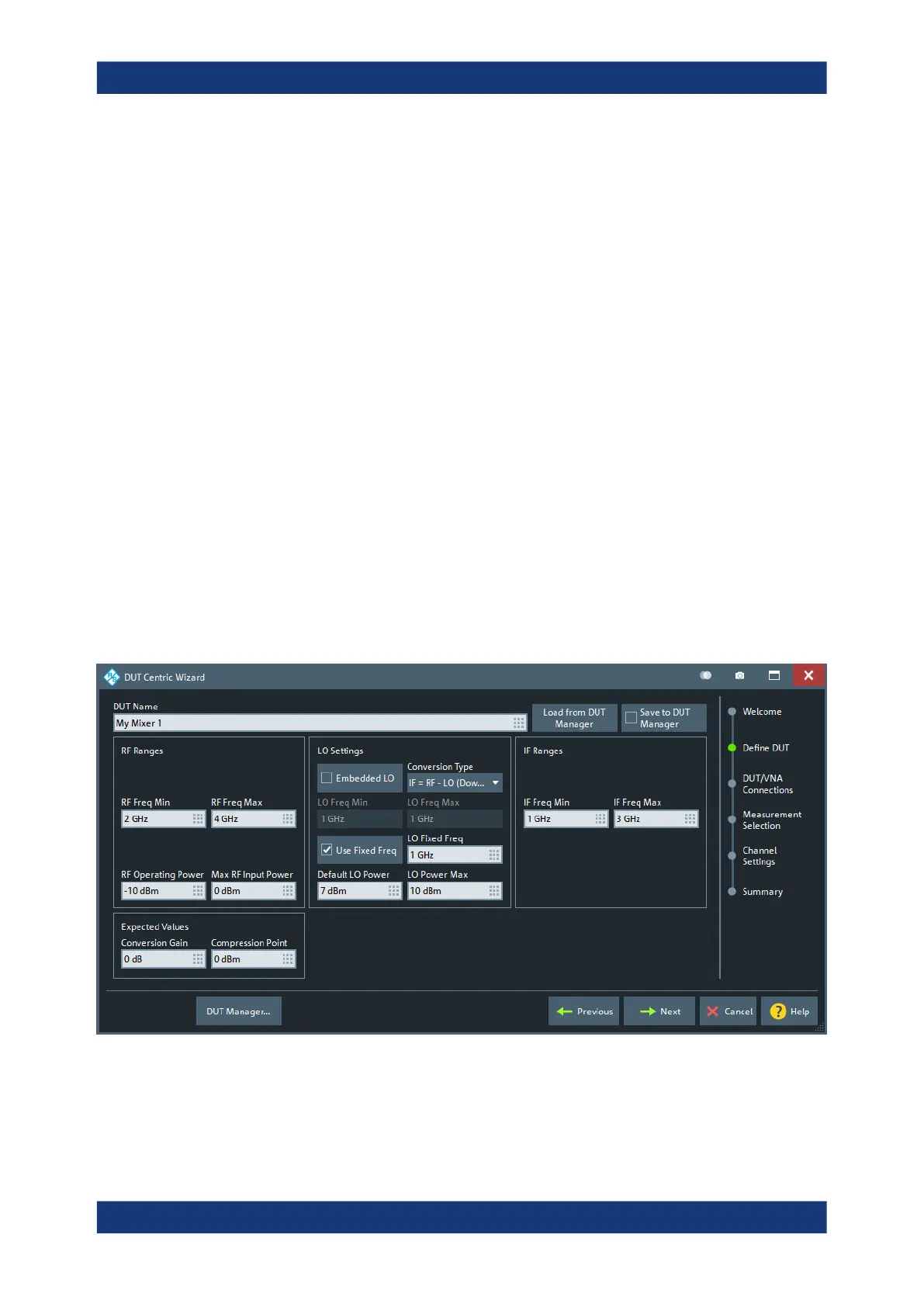

Define DUT
The "Define DUT" page of the "DUT Centric Wizard" allows you to set up the basic
properties of a mixer.
Similar to the Mixer Configuration dialog of the DUT Manager.
Load from DUT Manager
Use "Load from DUT Manager" to load a previously configured mixer from the DUT
manager.
