Background information
Refer to the following sections:
●
Chapter 4.7.4.2, "Scalar mixer measurements", on page 238
●
"Two-stage mixer measurements" on page 239
5.12.6.1 Controls on the Mixer Mode tab

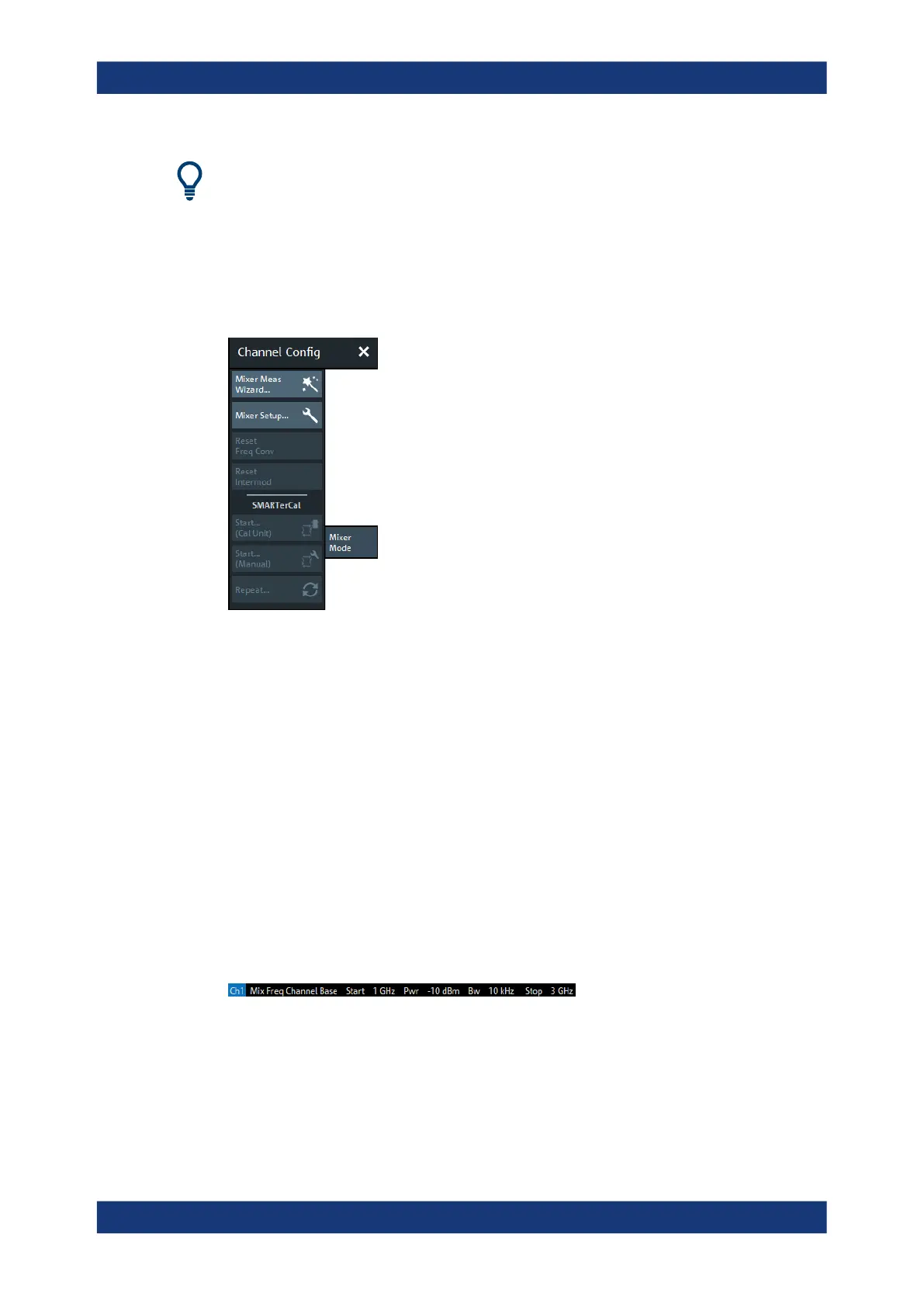

Most of the "Mixer Mode" buttons are only enabled if the mixer measurement is set up
properly. They open wizards or dialogs:
●
"Mixer Meas Wizard...": See Chapter 5.12.6.2, "Mixer Presetting wizard",
on page 595
●
"Mixer Setup...": See Chapter 5.12.6.3, "(Mixer) Setup dialog", on page 598
●
"SMARTerCal" – "Start... (Cal Unit)": see Chapter 5.12.6.4, "SMARTerCal (Cal
Unit) wizard for mixer mode", on page 602
●
"SMARTerCal" – "Start... (Manual)": see Chapter 5.12.6.5, "SMARTerCal (Man-
ual) wizard for mixer mode", on page 603
●
"SMARTerCal" – "Repeat...": launches the adequate "Mixer Meas"-specific wiz-
ard to repeat the currently active "SMARTerCal" (if available)
Reset Freq Conv
"Reset Freq Conv" disables all frequency conversion measurements in the active
channel, including intermodulation measurements.
A "Mix" label in the channel list indicates that a mixer measurement is active.
Remote command:
[SENSe<Ch>:]FREQuency:CONVersion
5.12.6.2 Mixer Presetting wizard
The "Mixer Presetting" wizard guides you through the setup of a mixer measurement.
Channel Config softtool
To Next Page
