R&S ZNB Series User Manual

Concepts and features
R&S
®
ZNB/ZNBT
214User Manual 1173.9163.02 ─ 62

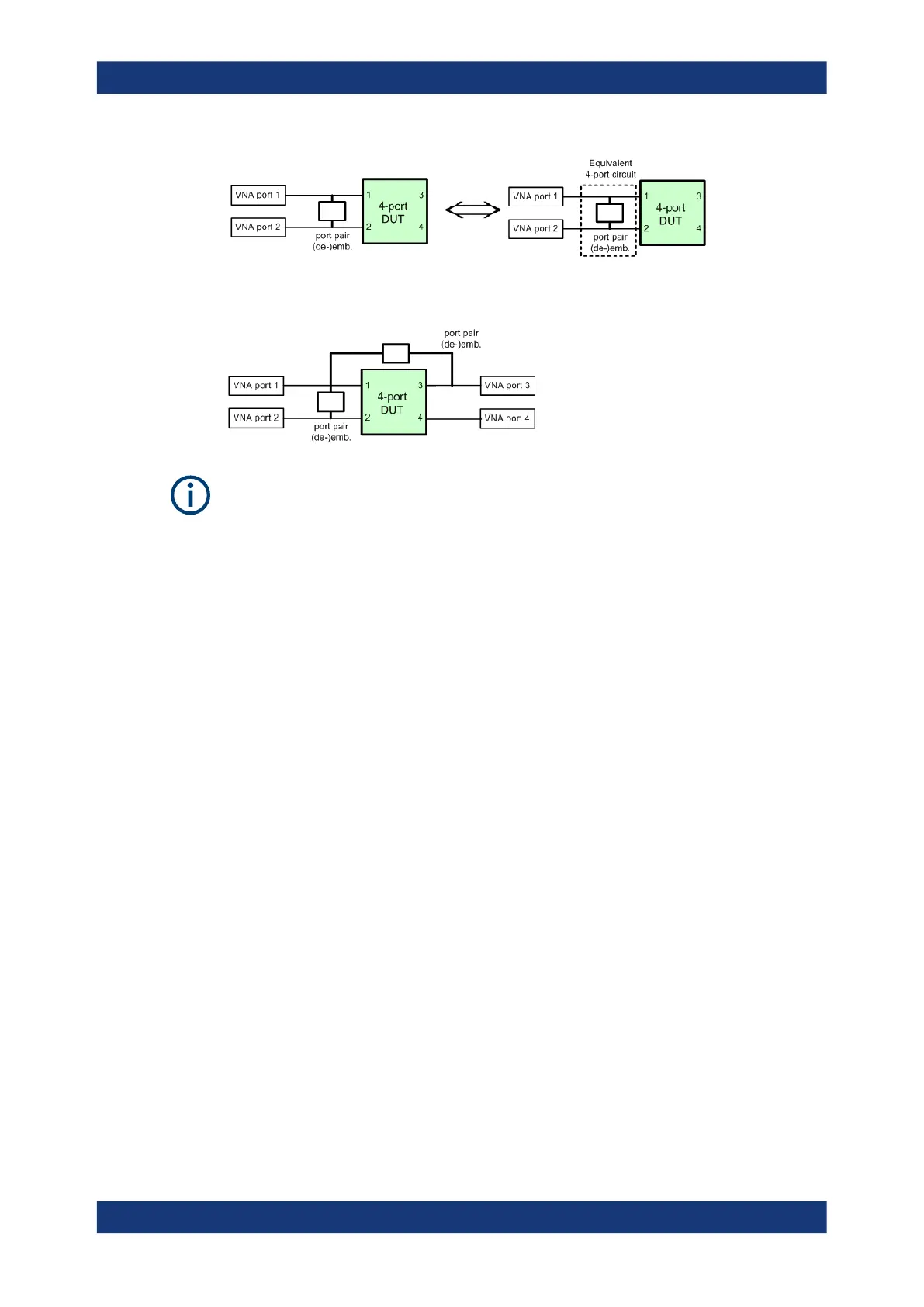

The two port pair (de-)embedding networks in the figure below are based on port pairs
1, 2 and 1, 3 with appropriate sets of 4-port S-parameters.
The R&S ZNB/ZNBT FW handles Port Pair De-/Embedding as a special case of Port
set de-/embedding.
4.6.2.6 Port set de-/embedding
The port set de-/embedding feature allows de-/embedding a linear 2m-port network
connecting m physical VNA ports to m physical DUT ports (m≥2).
Offset parameters and de-/embedding
