R&S ZNB Series User Manual

Concepts and features
R&S
®
ZNB/ZNBT
215User Manual 1173.9163.02 ─ 62
S
N
VNA S
11 2 1
a
E1
b
E1
a
1
b
1
32 4 2
a
E2
b
E2
a
2
b
2
2m-1m 2m m
a
Em
b
Em
a
m
b
m
.
.
.
.
.
.
a
m+1
b
m+1
m+1m+1
.
.
.
a
n
b
n
nn
Embedding Network DUTNetwork Analyzer
S
E

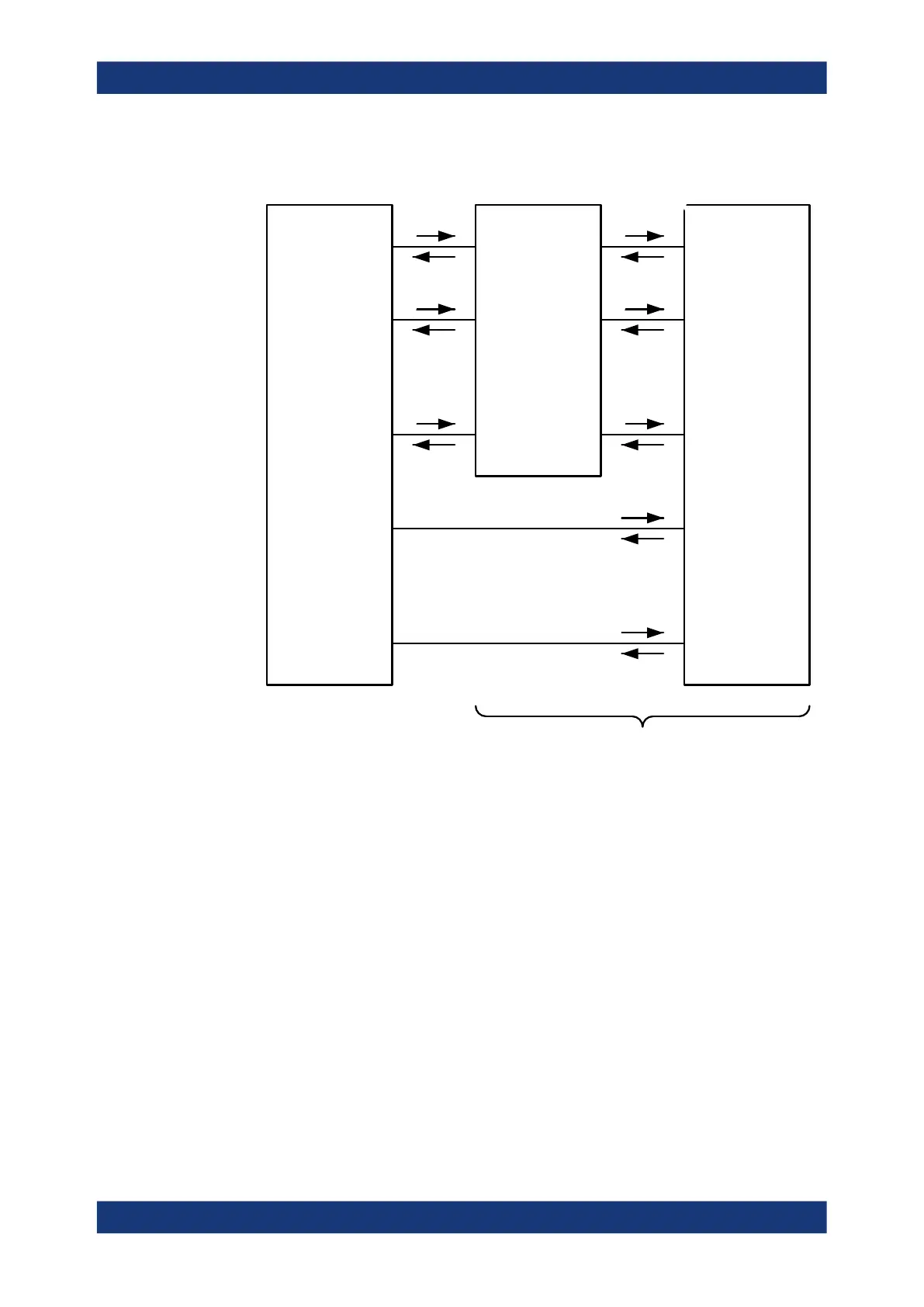

Figure 4-13: Port Set De-/Embedding
As shown in section Combining Several de-/embedding networks, port set deembed-
ding is calculated after single-ended deembedding, and the port set embedding step
precedes single ended embedding. It is possible to combine a sequence of port sets
for deembedding (embedding), each port set having its own transformation network.
The effect of port set de-/embedding depends on the port sets themselves but also on
their order. The same physical ports can be used repeatedly in different port sets; it is
also possible to use the same port set repeatedly.
Offset parameters and de-/embedding
