GUI reference
R&S
®
ZNB/ZNBT
542User Manual 1173.9163.02 ─ 62
The cable models are read from the METAS VNA Tools database. Additional cable
models can be added on a project-specific basis.
Remote command:
[SENSe:]CORRection:METas:CABLe:CATalog?
[SENSe<Ch>:]CORRection:METas:CABLe:TYPE
Cal Kit/Uncertainty
Allows you to specify the cal kits to be used for the selected ports. For meaningful
uncertainty calculations, use a cal kit that is characterized with uncertainties.
Regular cal kits (without uncertainties) are also offered for selection. For these cal kits,
zero uncertainty is assumed, which results in an unrealistic METAS calibration quality.
The "Uncertainty" checkbox indicates whether the selected characterization actually
comprises uncertainties.
Remote command:
[SENSe:]CORRection:CKIT:SELect
Same Connector all Ports/Same Gender all Ports
See "Same Connector All Ports / Same Gender All Ports" on page 467.
Import Cal Kit...

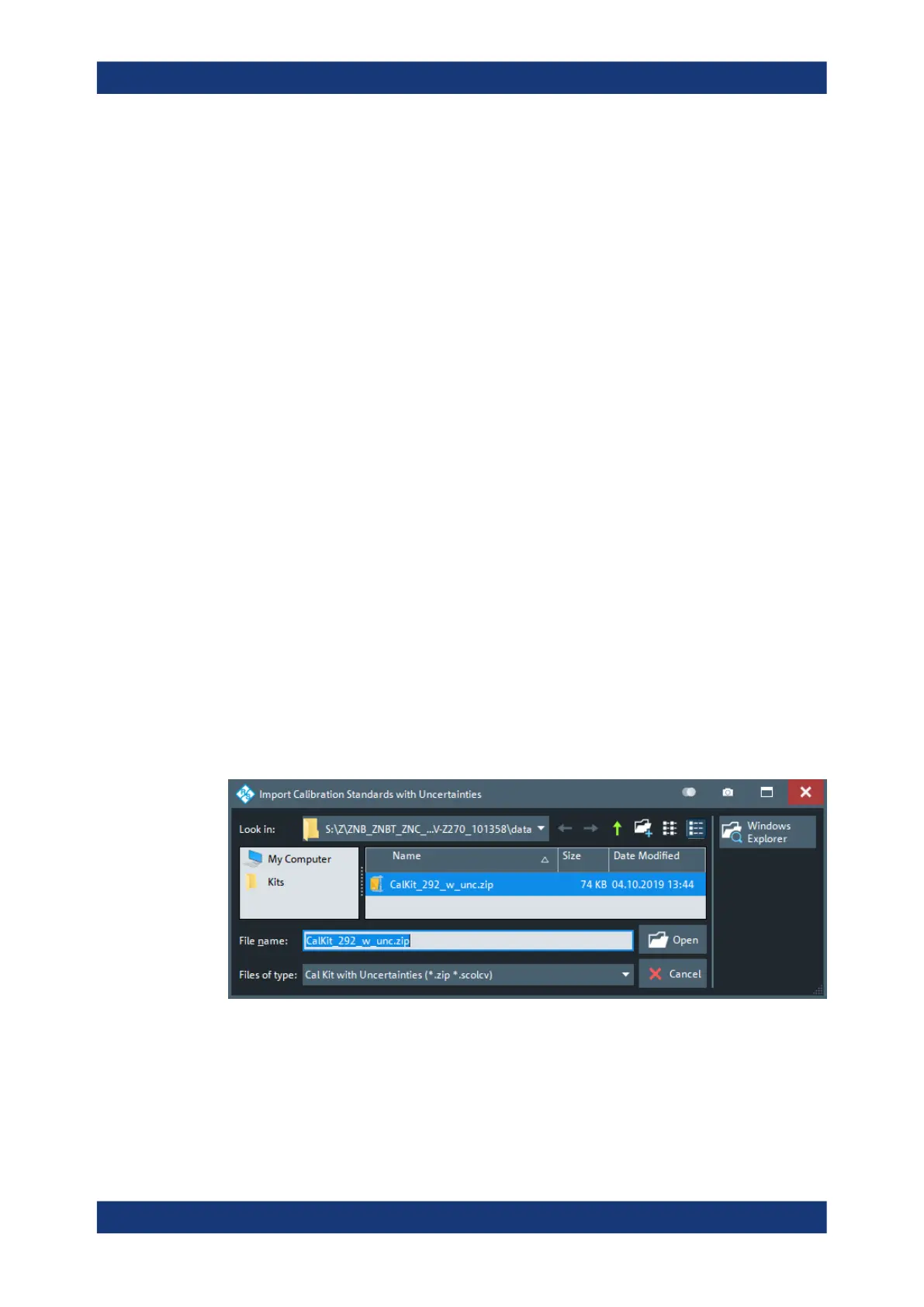

Opens the "Import Calibration Standards with Uncertainties" dialog, that allows you to
import cal kits with (or without) uncertainties.
A "CalKit with Uncertainties" can be one of the following:
●
a zip file containing calibration standard characterizations in a format supported
by METAS VNA Tools (sdatb, sdatx, sdatcv, calstd)
●
a scolcv file
See the document "Data Formats" on the METAS VNA Tools internet page (https://
www.metas.ch/metas/en/home/fabe/hochfrequenz/vna-tools.html, section "VNA Tools
Documentation".
The imported cal kit is assigned to the selected Connector type; the name of the ZIP
file is used as the cal kit name.
The name of a characterization file inside the zip container must indicate
●
the standard type (Open, Short, Load, Match, Line, Reflect, Through, Sliding Load,
Sliding Match)
and, if applicable, its gender (f, m, ff, fm, mf, mm).
