GUI reference

R&S

ZNB/ZNBT

467User Manual 1173.9163.02 ─ 62

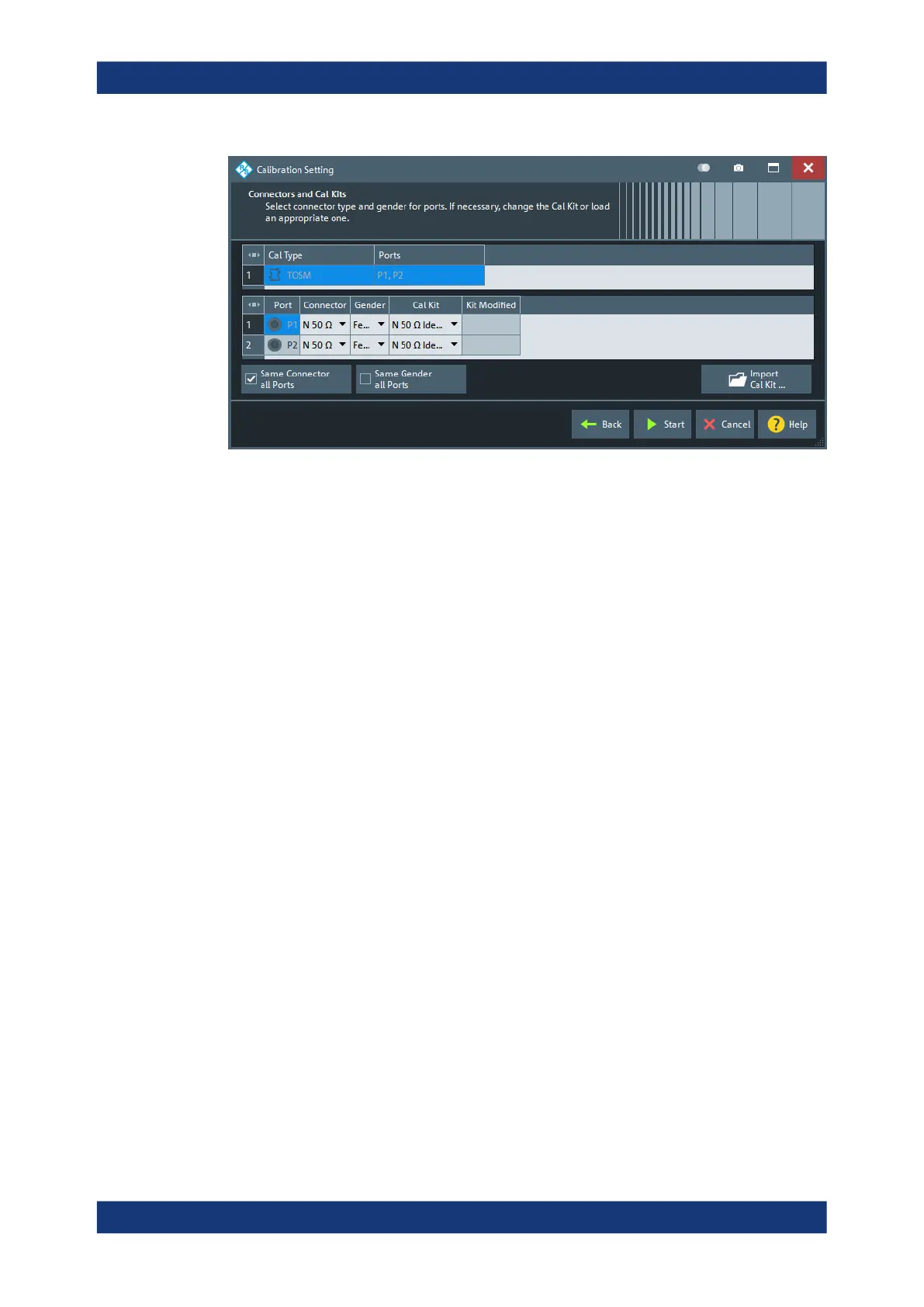

Figure 5-23: Calibration Setting: Connectors and Cal Kits (>4 ports)

Connector / Gender

Defines the connector types and genders of the ports to be calibrated. For symmetric

(sexless) connector types (e.g. 7 mm / PC7), "Gender" is unavailable.

If "Same Connector All Ports" is active, the connector types at all ports (but not their

gender) are always adjusted to the current selection. If "Same Gender All Ports" is

active, the genders at all ports are always adjusted to the current selection.

User-defined connectors can be added or removed in the Cal Connector Types dialog.

Remote command:

[SENSe<Ch>:]CORRection:COLLect:CONNection<PhyPt>

[SENSe<Ch>:]CORRection:COLLect:SCONnection<PhyPt>

[SENSe<Ch>:]CORRection:CONNection

[SENSe<Ch>:]CORRection:CONNection:CATalog?

[SENSe<Ch>:]CORRection:CONNection:DELete

Cal Kit

Selects a cal kit for the connector at each selected physical port. The drop-down list

contains all available calibration kits for the selected connector type.

The assignment of a calibration kit to a connector type must be the same for all physi-

cal ports: If a calibration kit is changed, the R&S ZNB/ZNBT automatically assigns the

new kit to all ports with the same connector type.

Use "Import Cal Kit..." to add new kits to the list.

Remote command:

[SENSe:]CORRection:CKIT:SELect

Same Connector All Ports / Same Gender All Ports

Assigns the same connector type or gender to all selected physical ports. For some

multi-port calibration types, the port connector types must be equal, e.g. because they

require a Through standard with known characteristics.
