Offset > Calculate after De-/Embed.
Changes the position of the "Offset" calculation in the "Offset Embed" calculation
chain.
If unchecked (default), the offset is calculated before de-/embedding. If checked, it is
calculated after de-/embedding.
Top

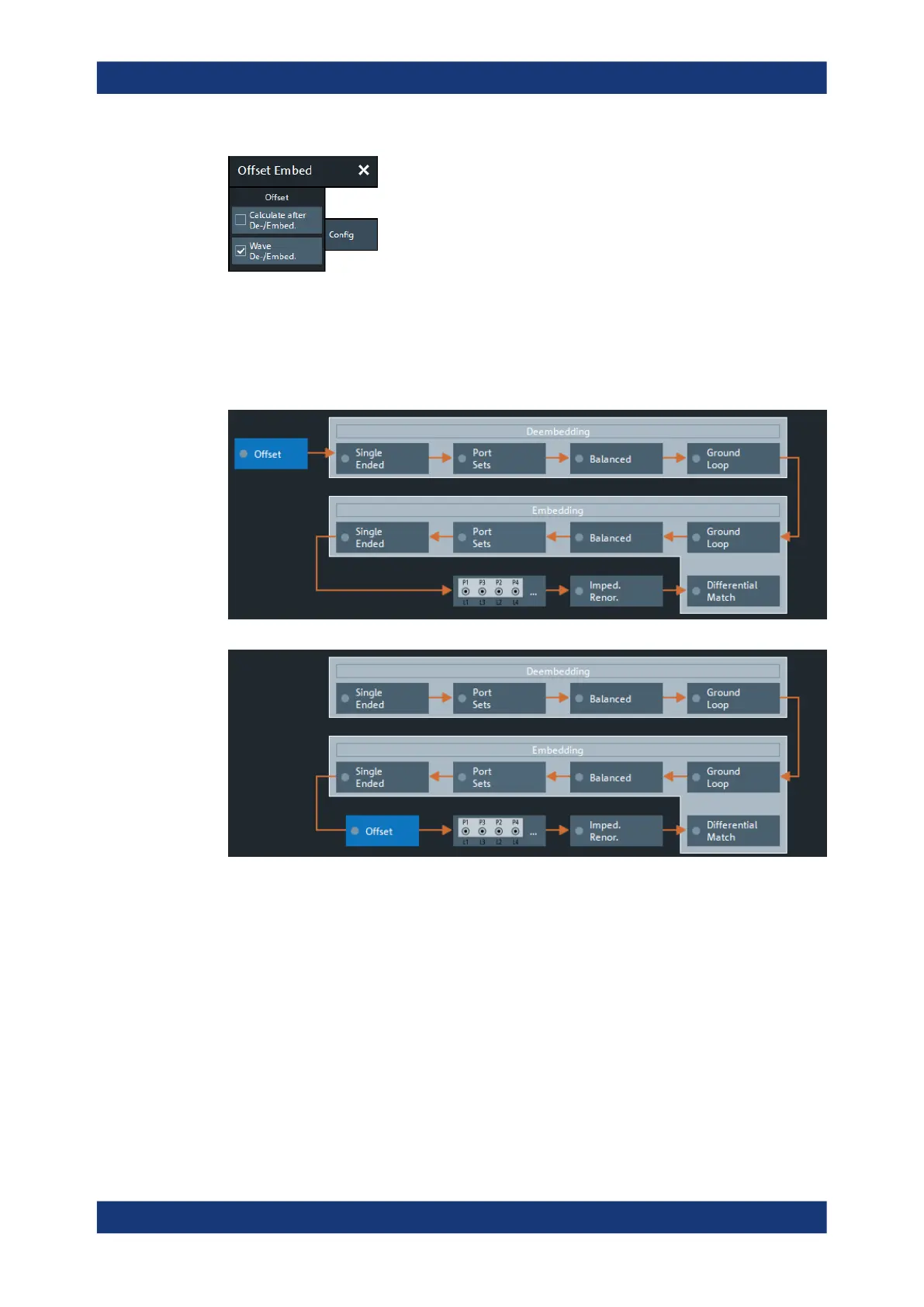

= Default offset calculation
Bottom = Offset calculation after de-/embedding (GUI mockup)
Remote command:
[SENSe:]CORRection:EDELay:VNETwork
Offset > Wave De-/Embed.
If checked, the firmware uses the new, wave-based de-/embedding calculation
(default). Otherwise, the legacy S parameter-based calculation is used. See Chap-
ter 4.1.5, "Data flow", on page 98.
Remote command:
CALCulate<Ch>:TRANsform:VNETworks:WAVes
