GUI reference
R&S
®
ZNB/ZNBT
670User Manual 1173.9163.02 ─ 62

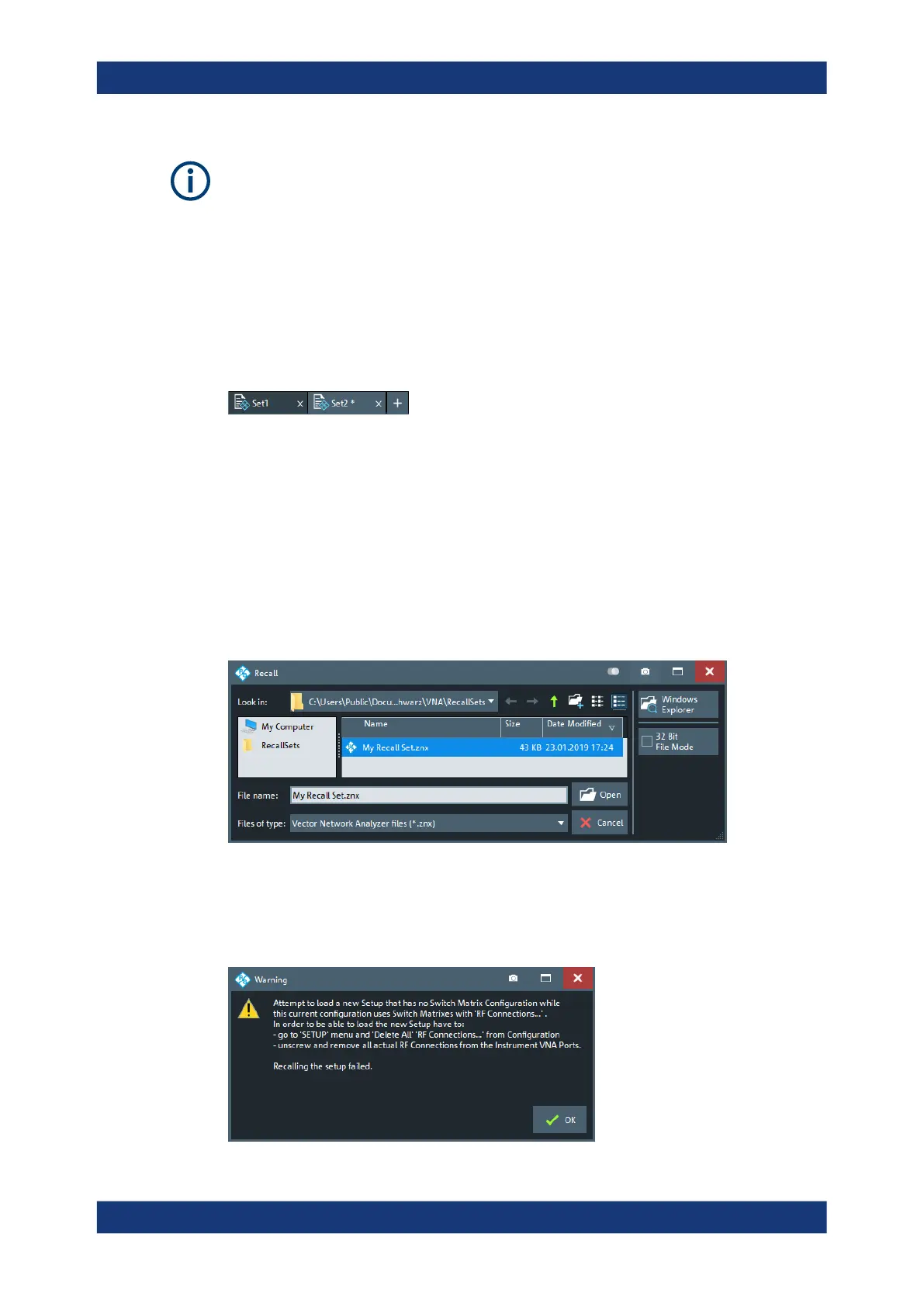

The R&S ZNB/ZNBT supports two recall set file formats:
●
znx (default)
Binary file format, supported by all firmware versions of the R&S ZNB/ZNBT
●
znxml
XML based file format, introduced with the R&S ZNA; supported with firmware ver-
sions 3.00 a higher
New
Adds a new setup. The default names for new setups are "Set1", "Set2" etc. Recall
sets are accessible via tabs in the diagram area:
Tip: To open an existing recall set, use "Open Recall...". To rename a setup, use
"Save...".
Remote command:
MEMory:DEFine
Open Recall...
Loads a recall set from a file (*.znx|*.znxml).
Opens the Open Dialog with suitable file filters.
Check the "32 Bit File Mode" option on the right-hand side of this dialog if you want to
open a znx file that was saved by a 32-bit firmware.
If the current setup includes External switch matrices and the recall set to be loaded
does not contain a switch matrix configuration, recalling the setup is aborted. You are
requested to delete the configured RF connections (see Chapter 5.18.5.5, "Switch
Matrix RF Connections dialog", on page 796) and to remove the switch matrix from
the RF paths.
File softtool
