2. REPLACEMENT AND ADJUSTMENT
2.1 BOTTOM PLATE LIFT WIRE REPLACEMENT
NOTE: Before replacing the rear bottom plate lift wire, remove the front bottom
plate lift wire. The procedure for the two wires is the same.
1. Remove the tray.
2. Remove the inner cover (2 screws).
3. Slightly lift the front bottom plate and unhook the wire stoppers [A] (2 stoppers
[B]).
4. Remove the wire cover [C] (1 E-ring each).
5. Remove the bracket [D] (1 screw, 1 E-ring, and 1 bushing).
6. Remove the gear [E].
7. Replace the bottom plate lift wire [F].

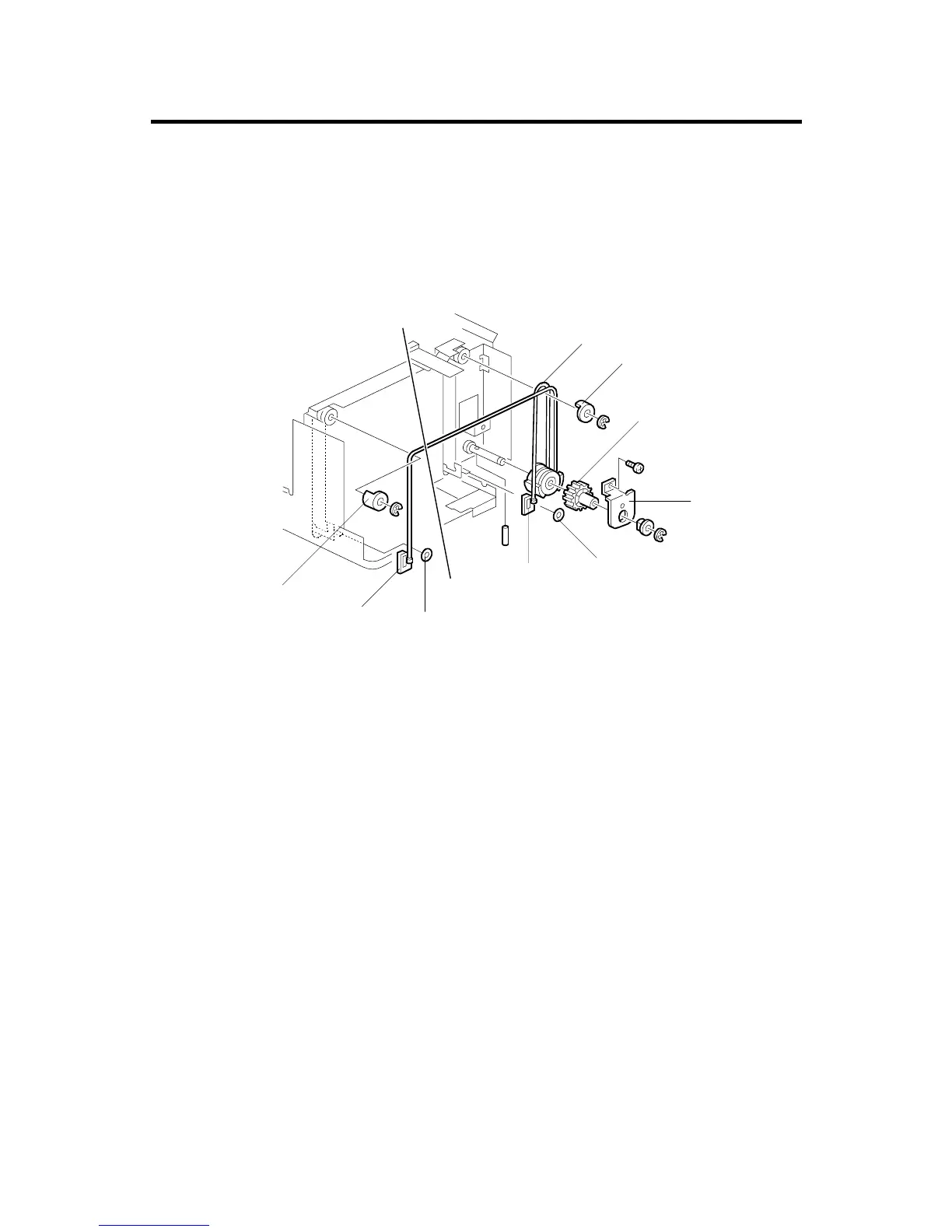

B331R102.WMF
