Lubrication Points
D014/D015/D078/D079 2-22 SM
Fusing Unit

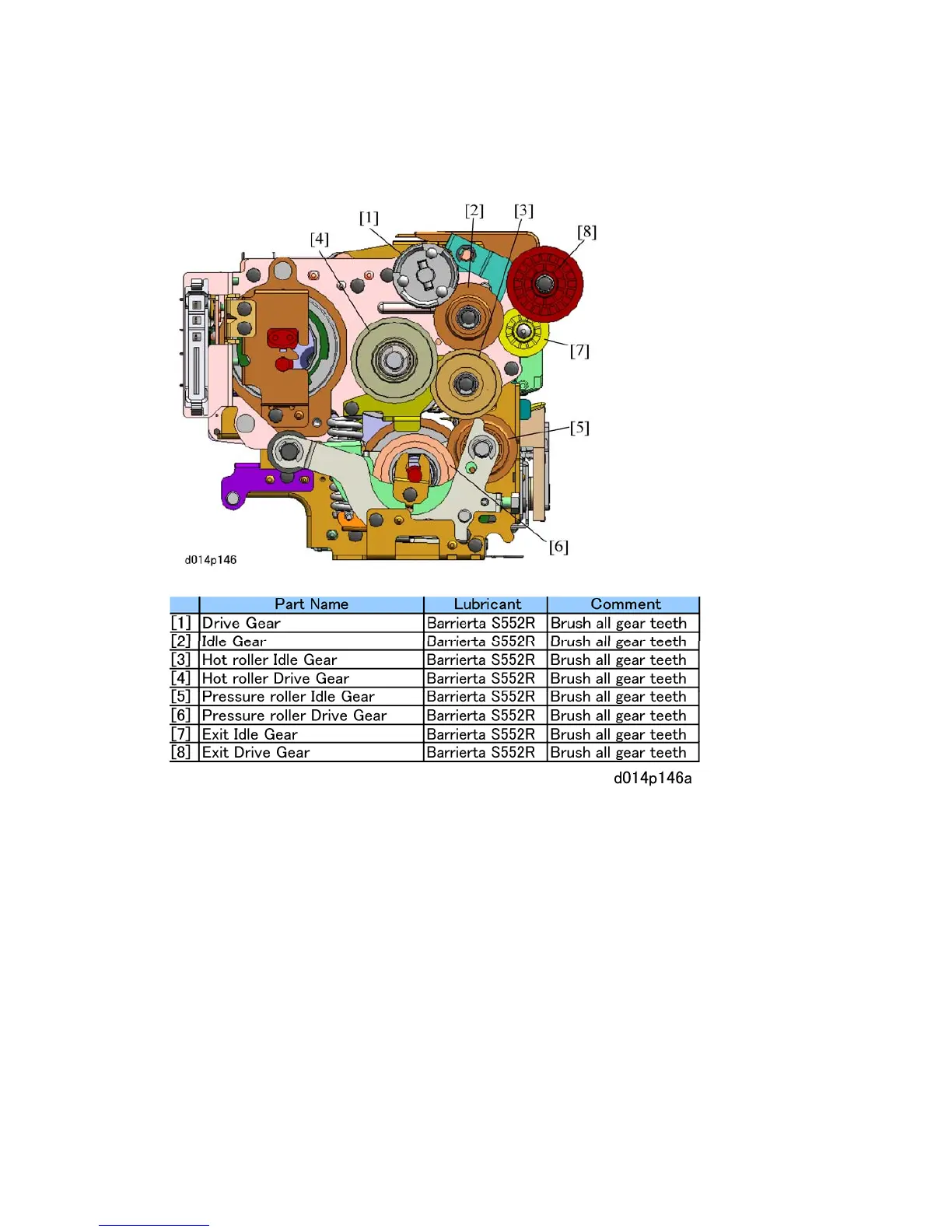

Lubricate gears [2] and [5] at every 150K. Lubrication applied to these gears will lubricate
the other gears during fusing unit operation.
