3.2 PAPER PRE-STACKING

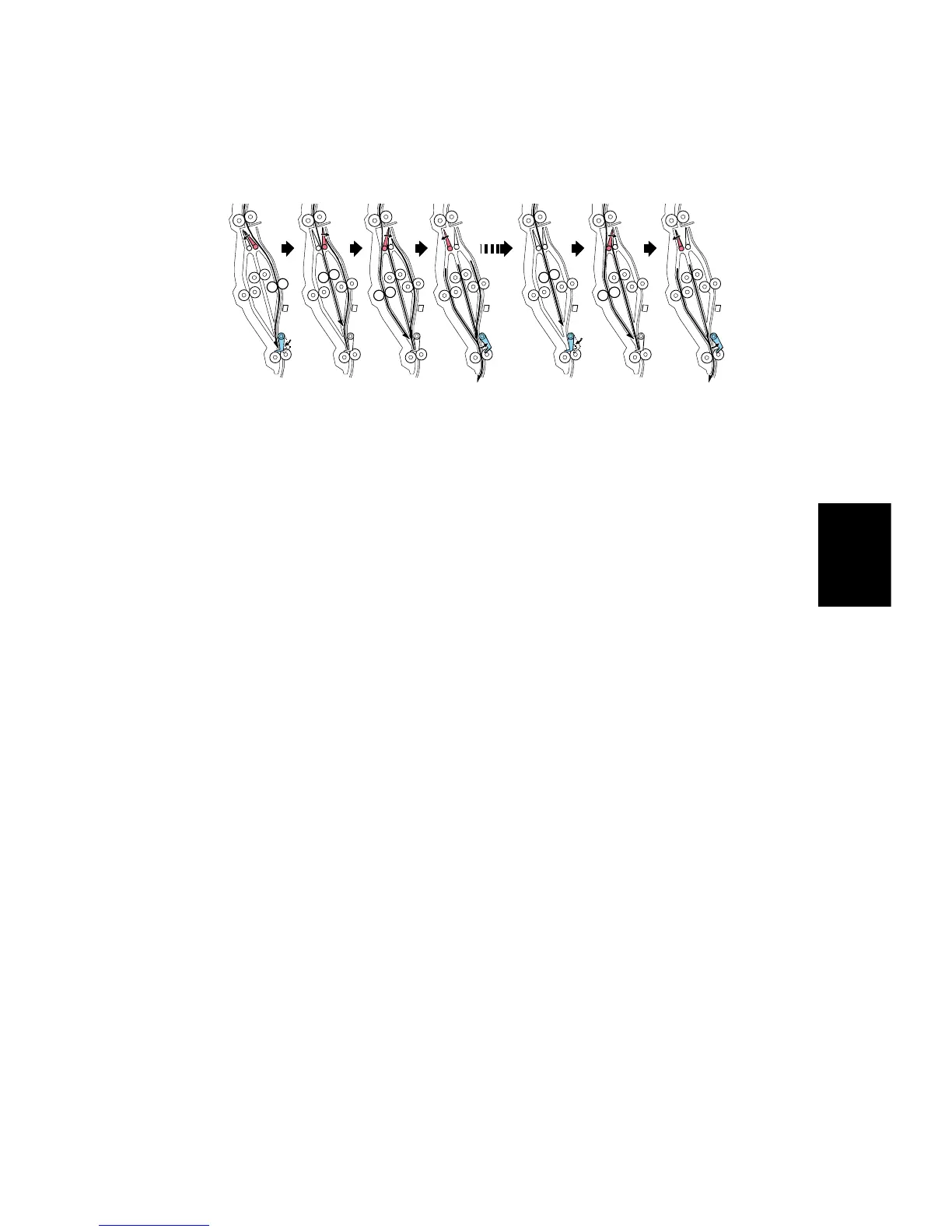

Sequence 1
The first three sheets of each job feed to trays
    
([A], [B], [C]), then the
first three sheets feed together to the staple tray [D].
Sequence 2
Thereafter, the remaining sheets feed to trays
  
([E], [F]), then the two sheets
feed together to the staple tray [G]. Sequence 2 continues until the end of the job.
Junction gate mechanism:
• Three junction gates at the top of the pre-stack tray send the sheet of paper
down path

,

, or

.
• The pre-stack junction gate motor controls the junction gates.
• The pre-stack junction gate HP sensor detects when the junction gates are at
home position.
• The pre stack paper sensor – left detects paper jams in path

.
• The pre stack paper sensor – right detects paper jams in path

.
Stopper mechanism:
• The pre-stack stopper releases the three sheets of paper from the pre-stack tray
after the previous set is stapled.
• The pre-stack stopper motor controls the stopper at the bottom of the tray.
• The pre-stack stopper HP sensor detects when the stopper is at home position.
