REPLACEMENT AND ADJUSTMENT
B660 14 SM
1.13.2 Z-FOLD ADJUSTMENT SCREWS
The adjustment of the 1st fold is done by
turning an adjustment screw linked to the
paper stopper.
Pull out the Z-fold mechanism.

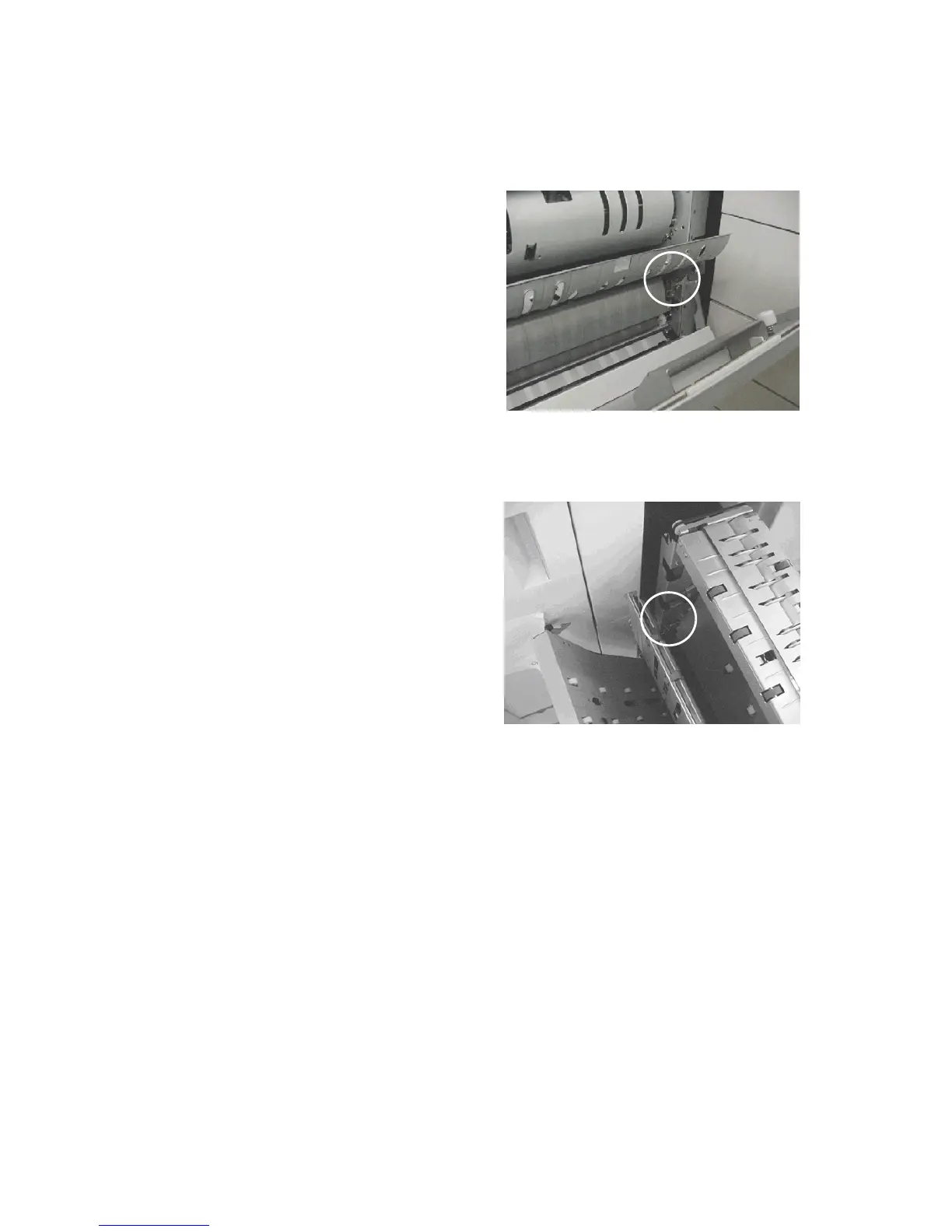

Open the right cover to see the
adjustment screw located at [A].
This is the screw used to adjust the 1st
fold.
Open the left cover to see the screw
located at [B].
This is the screw used to adjust the 2nd
fold.
[A]
[B]
