Ricoh D014 - Assemble the Key Counter Bracket; Install the Key Card Bracket and Assembled Key Counter; Installation

Counters
SM 1-45 D014/D015/D078/D079
Installation
1.6.2 INSTALLATION

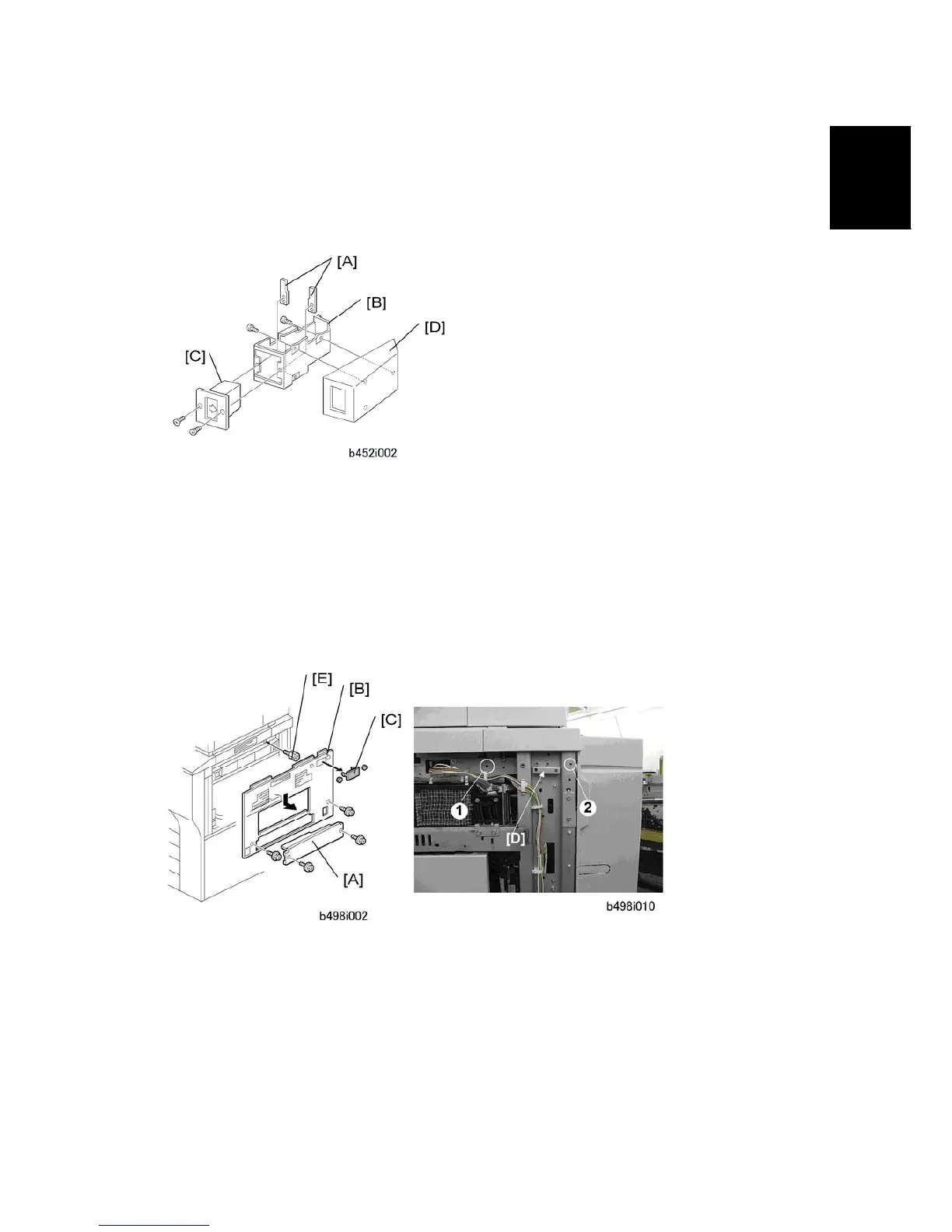

Assemble the Key Counter Bracket
1. Hold the key counter plate nuts [A] on the inner surface of the key counter bracket [B].
2. Attach the key counter holder [C] to the key counter bracket ( x 2).
3. Attach the key counter bracket cover [D] ( x 2).
Install the Key Card Bracket and Assembled Key Counter
