Fusing Unit
D014/D015/D078/D079 6-92 SM

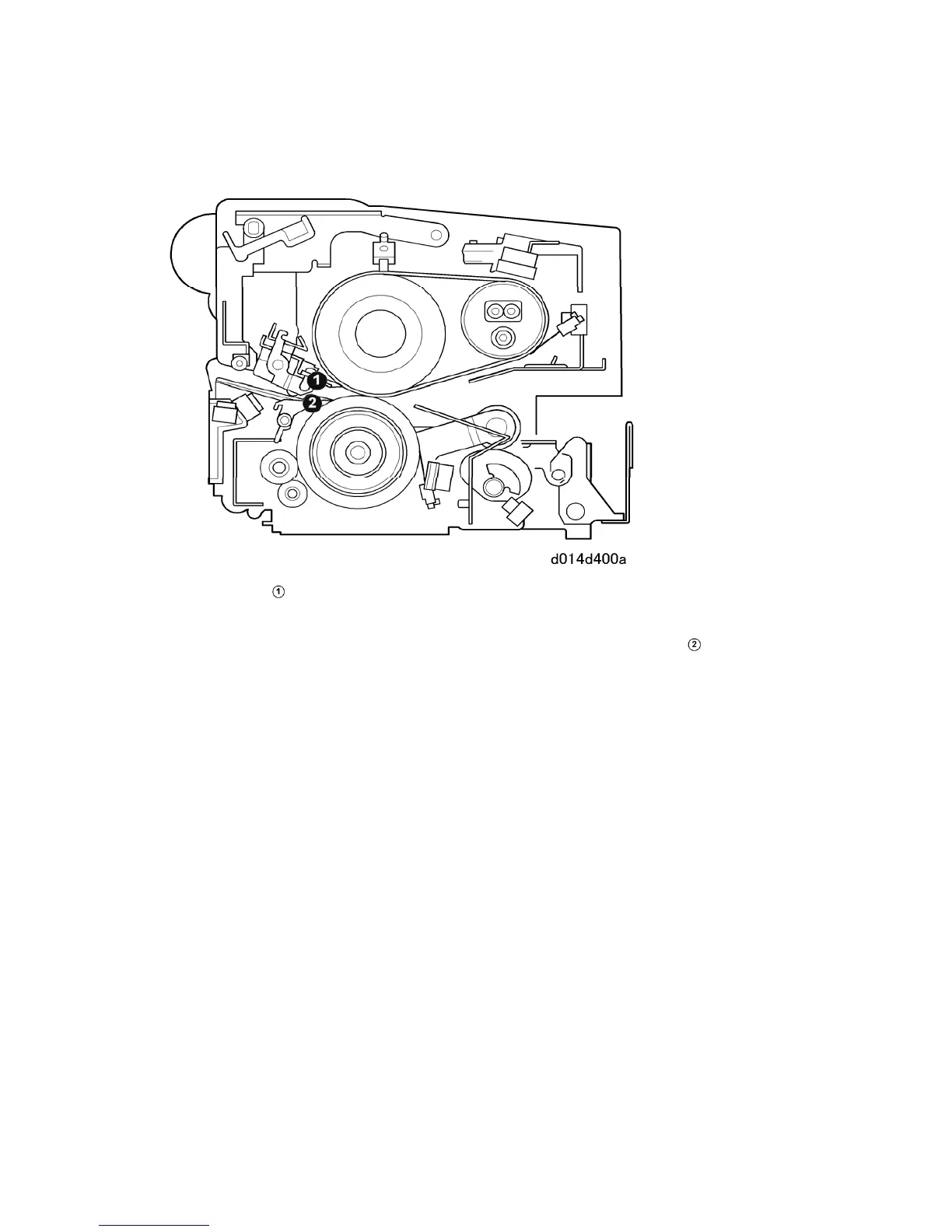

6.10.4 STRIPPERS
Stripper plates
touching the fusing belt remove any paper that may accidentally stick to
the belt after fusing. These are smooth plates, not sharp pointed pawls.
Unlike the fusing belt stripper plate mechanism, the pressure roller strippers
are
sharply pointed. They touch the fusing belt above the pressure roller to remove any paper
that may accidentally stick to the belt after fusing.
