PTR Unit
D014/D015/D078/D079 3-72 SM

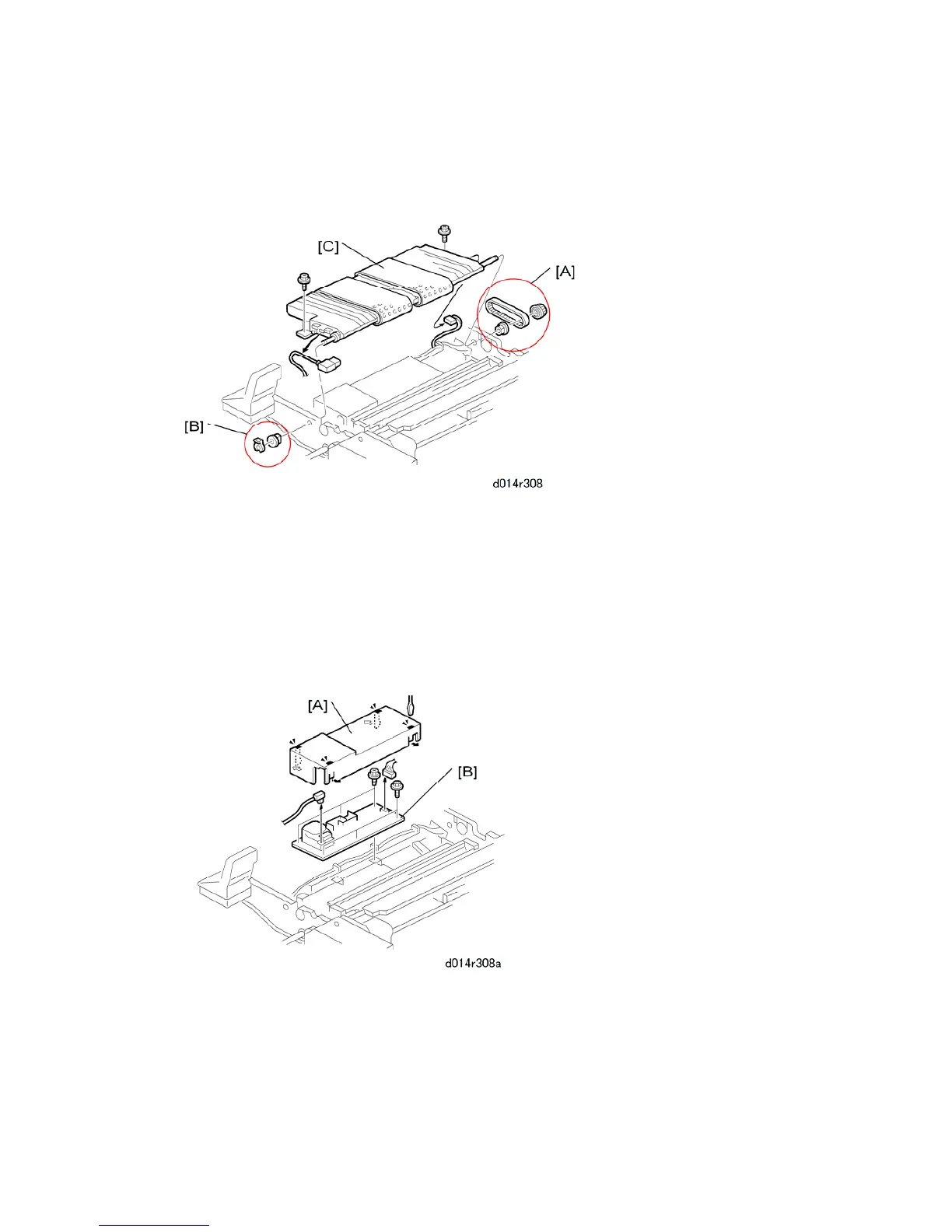

3.5.8 PAPER TRANSPORT BELT, PAPER SEPARATION
POWER PACK
1. Pull out the drawer unit
2. Remove:
Paper transport unit lever and cover
Fusing unit
[A] Timing belt x1, Gear x1, Shaft bearing x1
[B] Snap ring x1, Shaft bearing
[C] Paper transport belt ( x2, x2)
3. Remove:
[A] Cover
[B] Separation power pack ( x6, x2)
Reinstallation
Do the forced MUSIC adjustment with SP 2111 001.
