MOTORS

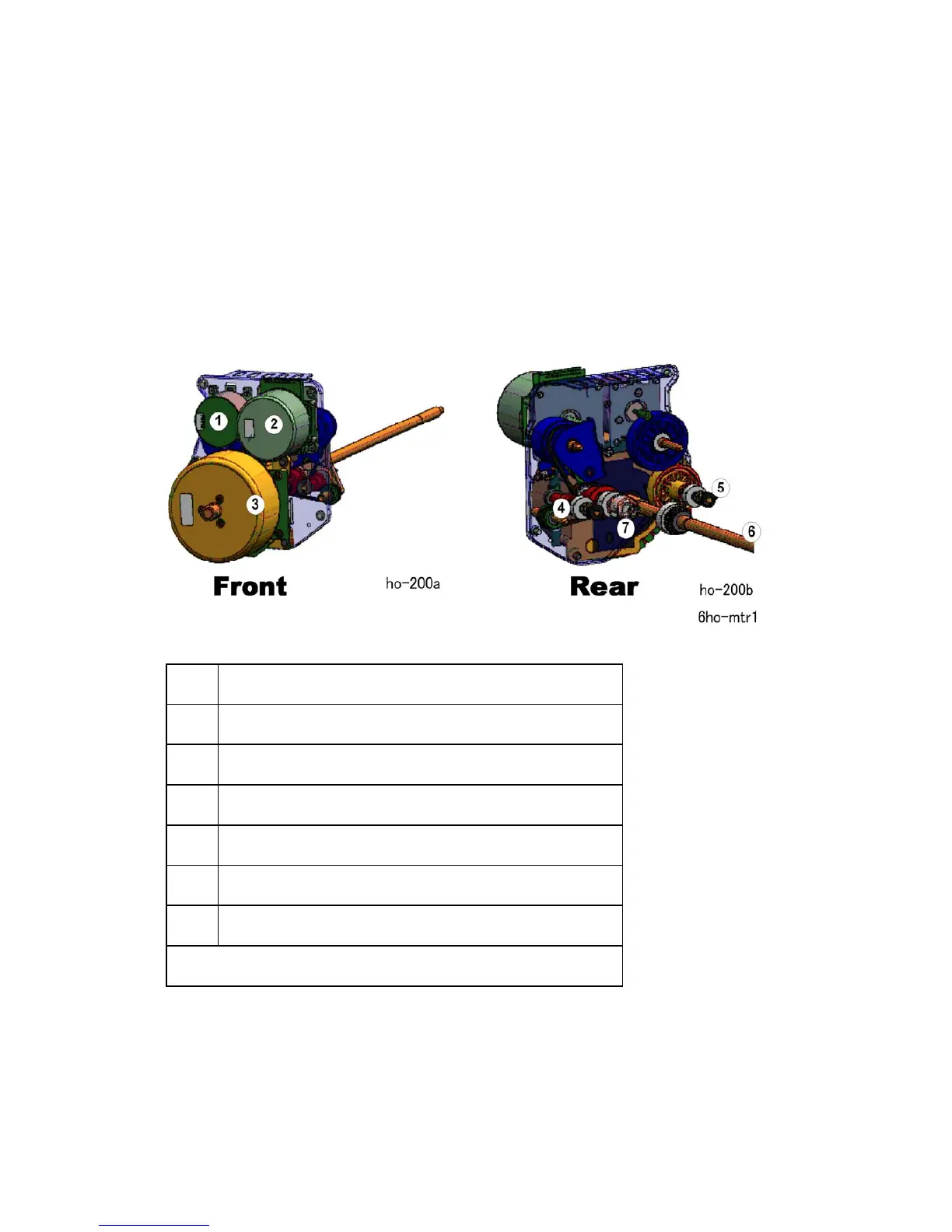

The following illustrations show the positions of motors around the drum, as viewed from the
rear.
FRONT, REAR VIEW OF DRUM CLEANING, DEVELOPMENT,
DRUM MOTORS
1.
Drum Cleaning Motors x4*
1
2.
Development Motors x4*
1
3. Drum Motors x4
4. Development Coil Shaft
5. Drum Cleaning Motor Shaft
6. Drum Motor Shaft
7. Development Roller
*
1:
New items
