Cover Interposer Tray (B704)
SM 1-119 D014/D015/D078/D079
Installation
Preparing the Finisher

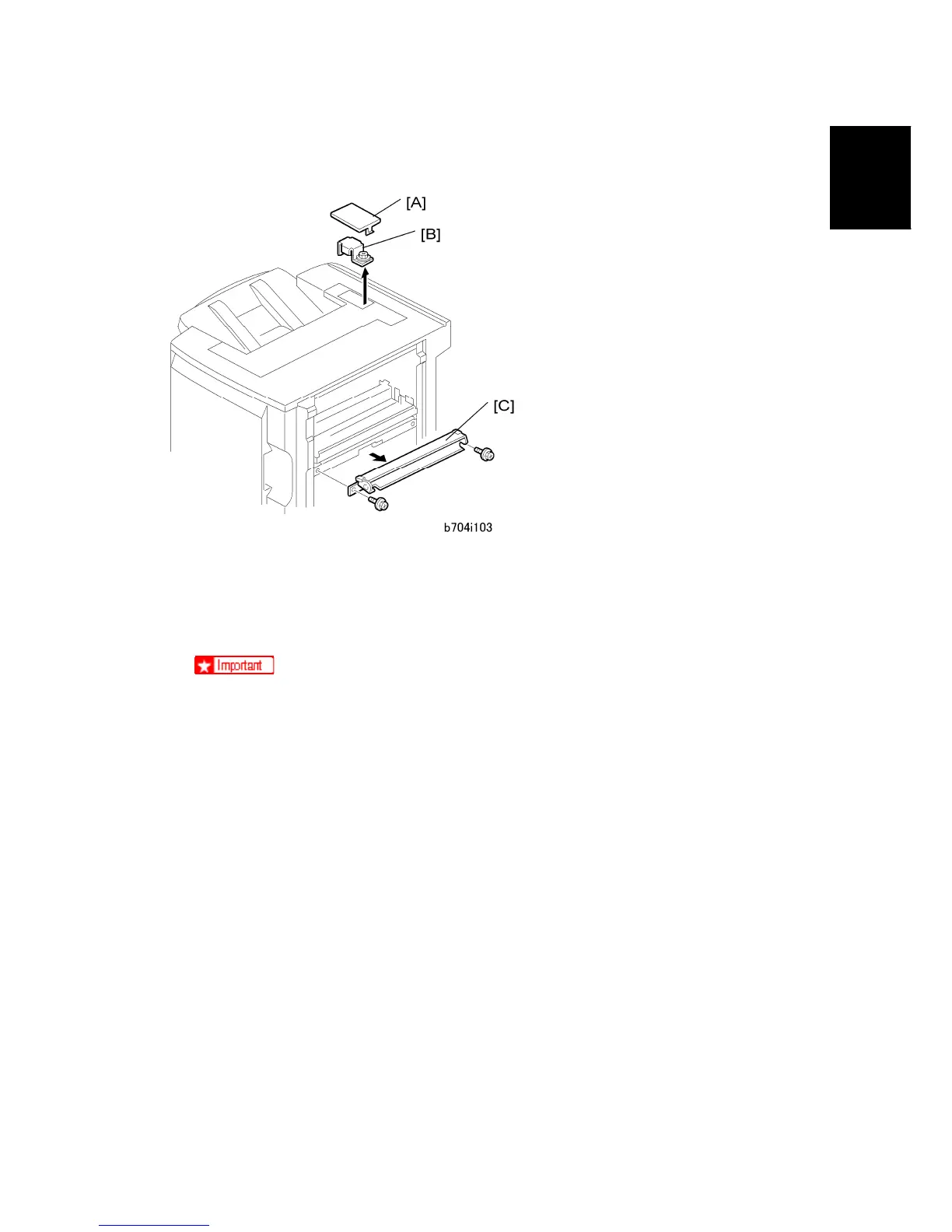

1. Remove the cover [A] of the relay connector.
2. Loosen the screw of the bracket [B] ( x 1) then remove the bracket.
3. Remove the guide plate [C]. (You will attach this guide plate to the cover interposer. Do
not discard it.)
If you will install the cover interposer tray on a D373/D374 finisher that was
installed on the machine before this time, remove the sponge strip from the
finisher. Keep this strip because you must attach it later to the interposer tray.
