PTR Unit
D014/D015/D078/D079 3-64 SM
3.5 PTR UNIT
3.5.1 RELAY SENSOR

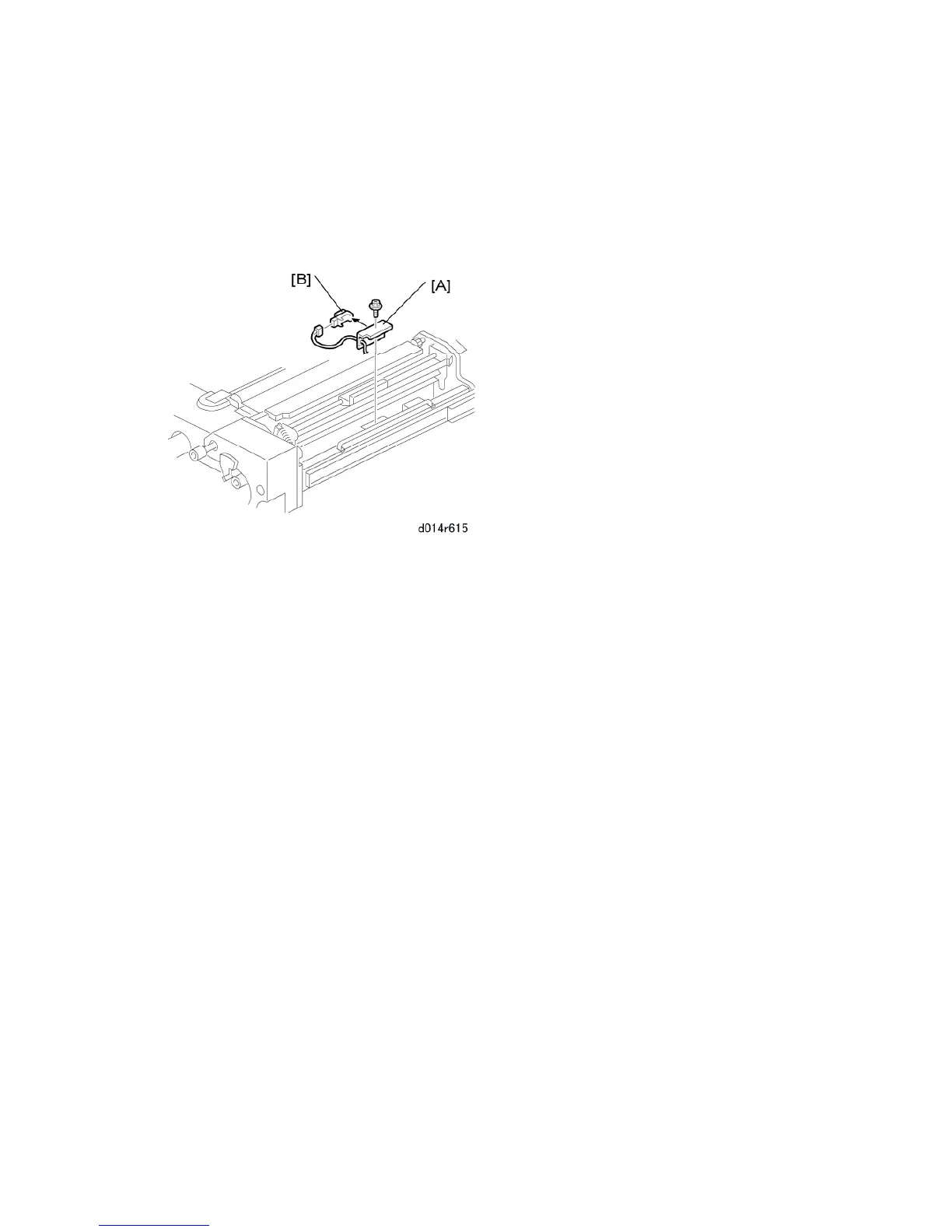

1. Pull out the drawer unit.
2. Remove:
[A] Sensor bracket ( x1)
[B] Relay sensor ( x1)
Reinstallation
 Do the forced MUSIC adjustment with SP 2111 001.
