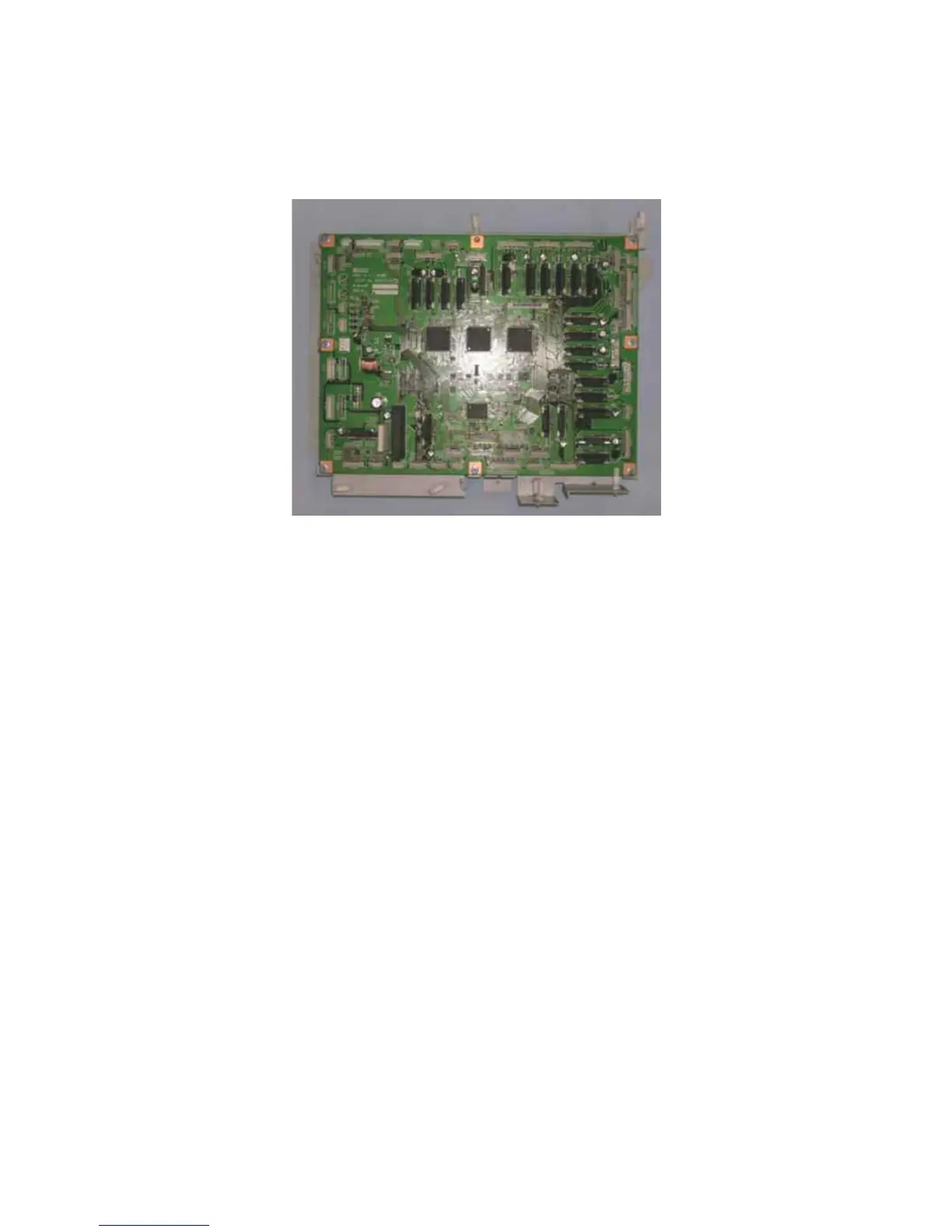

1.4.6 MAIN BOARD, PRE-STACK PAPER SENSOR
1. Remove the rear cover. (

1.1.4)
2. Remove the main board bracket (

x 4,

x8,

x All).
3. Open the front door.




