Differences Between the D014/D015 & B132/B200
D014/D015/D078/D079 D-30 SM
machine in order to fill it with developer.

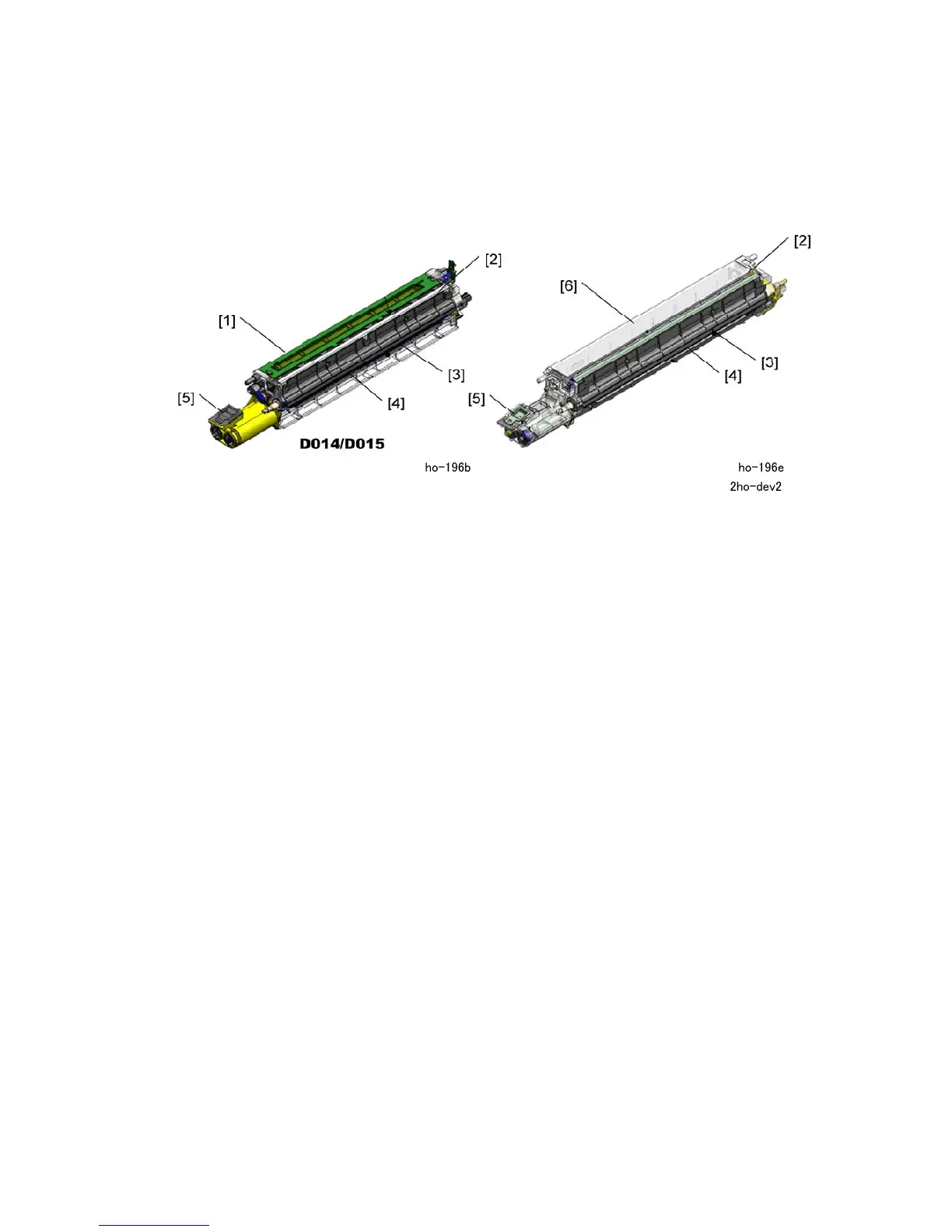

External View of Development Unit
D014/D015 B132/B200
1 Filter ---
2 Heat Sink Heat Sink
3 Entrance Seal Entrance Seal
4 Development Roller (diameter 25) Development Roller (diameter 25)
5 Toner Supply Port Toner Supply Port
6 --- Development Cartridge
Note: The D014/D015 does not contain a developer cartridge. The PCU is filled with
developer from a newly designed bottle. The PCU does not need to be removed from the
machine in order to fill it with developer.
B132/B200
