Photoconductor Units (PCU)
D014/D015/D078/D079 6-26 SM
6.6.6 PCU VENTILATION

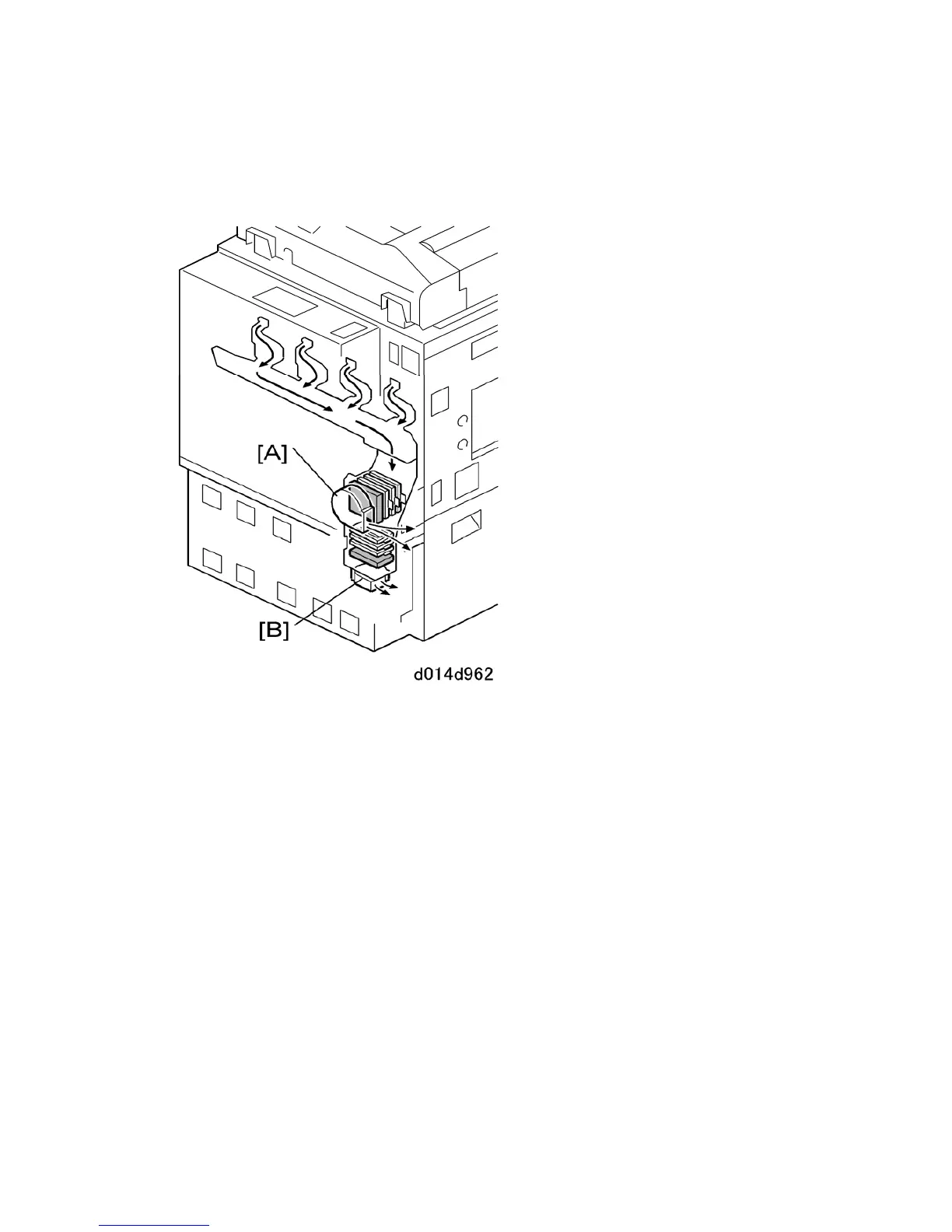

Ozone Ventilation
Ozone exhaust fan [A] pulls air from the machine through the first air filter/ozone filter unit
and expels it from the machine.
Ozone exhaust fan [B] pulls air through the second air filter/ozone filter unit and expels it
from the machine.
