Ricoh D014 - Covers

REPLACEMENT AND ADJUSTMENT
B660 2 SM
1.2 COVERS

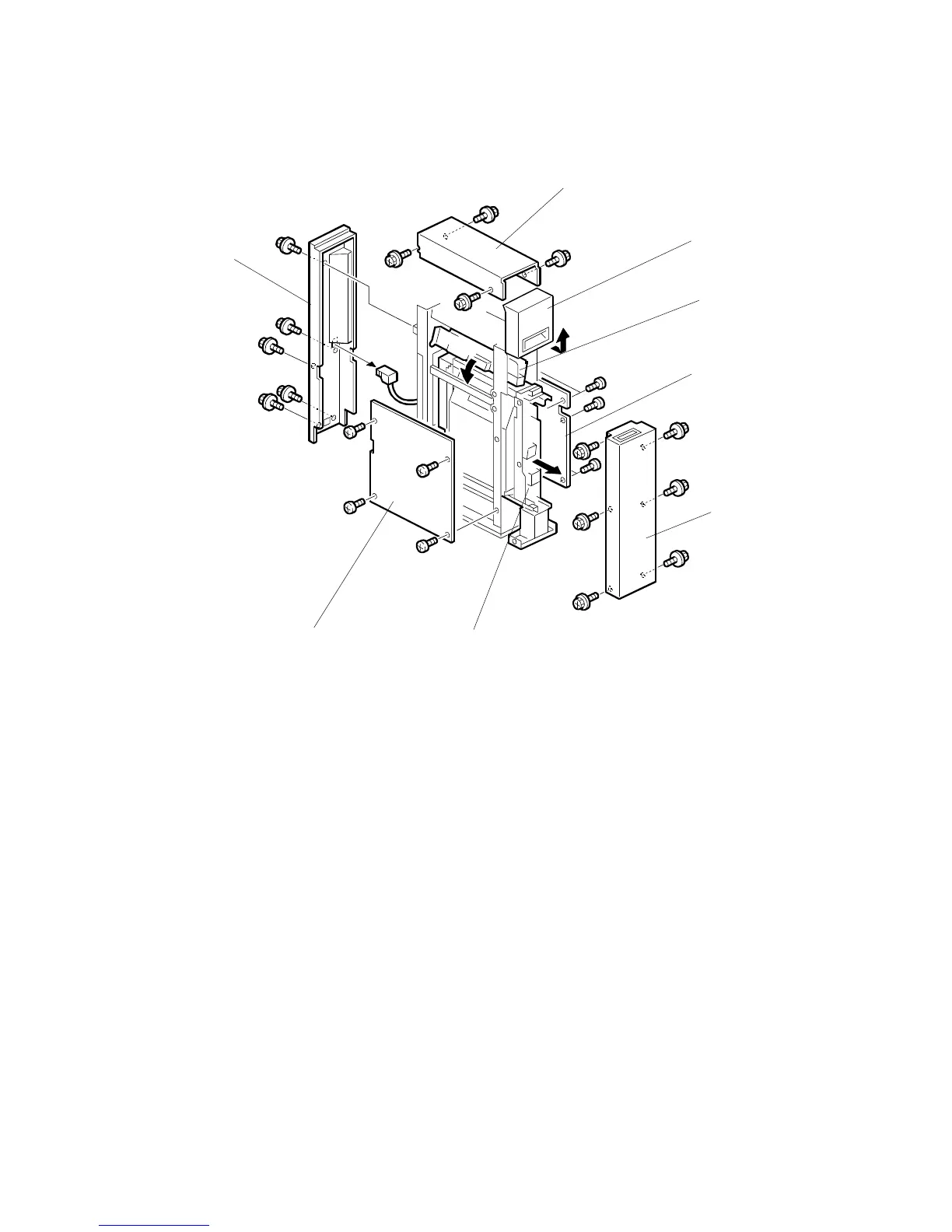

• Open the front door [A].
• Lift the horizontal transport plate [B] to the left until it locks on the left side.
• Pull out the Z-fold mechanism [C].
[D] Front cover (

x 6)
[E] Top cover (

x 4)
[F] Left cover (

x 4)
[G] Right cover (

x 5)
[H] Rear cover (

x 6)
B660I901.WMF
[A]
[B]
[C]
[D]
[E]
[F]
[G]
[H]
